| Model Specification | SCN-600-12 | SCN-600-13.5 | SCN-600-15 | SCN-600-24 | SCN-600-27 | SCN-600-48 |
| DC Output Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Iutput Voltage Error | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 50A | 44A | 40A | 25A | 22A | 12.5A |
| Output Current Range | 0-50A | 0-44A | 0-40A | 0-25A | 0-22A | 0-12.5A |
| Tripple and Noise | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 300mVp-p |
| Voltage Adj range | ±5.0% typical adjustment by potentiometer 20~100% adjustment by 1~5VDC external control |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| DC Output Power | 600W | 594W | 600W | 600W | 594W | 600W |
| Efficiency | 84% | 84% | 83% | 85.5% | 86.5% | 87% |
| AC Input Voltage Range | 90 ~ 130VAC / 180 ~ 260VAC selected by switch |
| Input Current | 11A / 115VAC 7.0A / 230VAC |
| AC Inrush Current | Cold-Start Current: 60A / 230VAC |
| Leakage Current | 3.5mA/240VAC |
| Overload Protection | 110 ~ 135% rated output power,Current limiting, delay shut down o/p voltage, re-power on to recover |
| Over Voltage Protection | 110 ~ 135% follow to output set up point, Shut down o/p voltage, re-power on to recover |
| High Temperature Protection | >100℃ / measure by heat sink, near transformer,Shut down o/p voltage, re-power on to recover |
| Temperature Coefficient | ± 0.04% /℃ (0~50℃) |
| Start, Rise, Hold time | 800ms, 50ms, 16ms at full load |
| Vibration | 10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Withstand Voltage | I/P-O/P, I/P-FG:1500VAC |
| Isolation Resistance | I/P-O/P, I/P-FG, 100M Ohms / 500VDC / 25 ℃/ 70% RH |
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH |
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH |
| MTBF | 120Khrs min. MIL-HDBK-217F (25℃ ) |

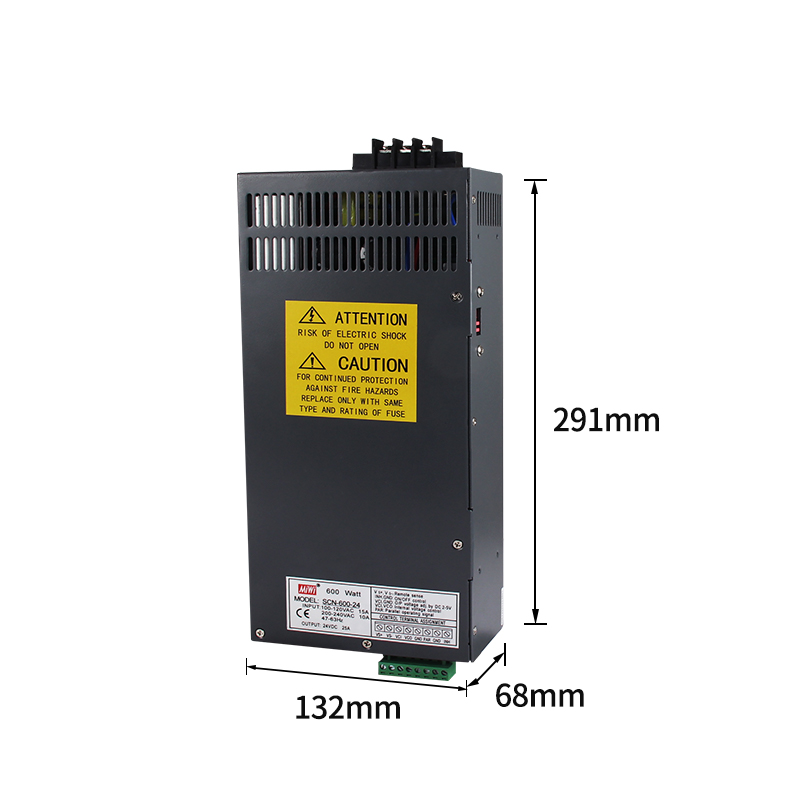

| Overall Dimension | 291*132*68 mm |
| Weight | 2.65 kgs |

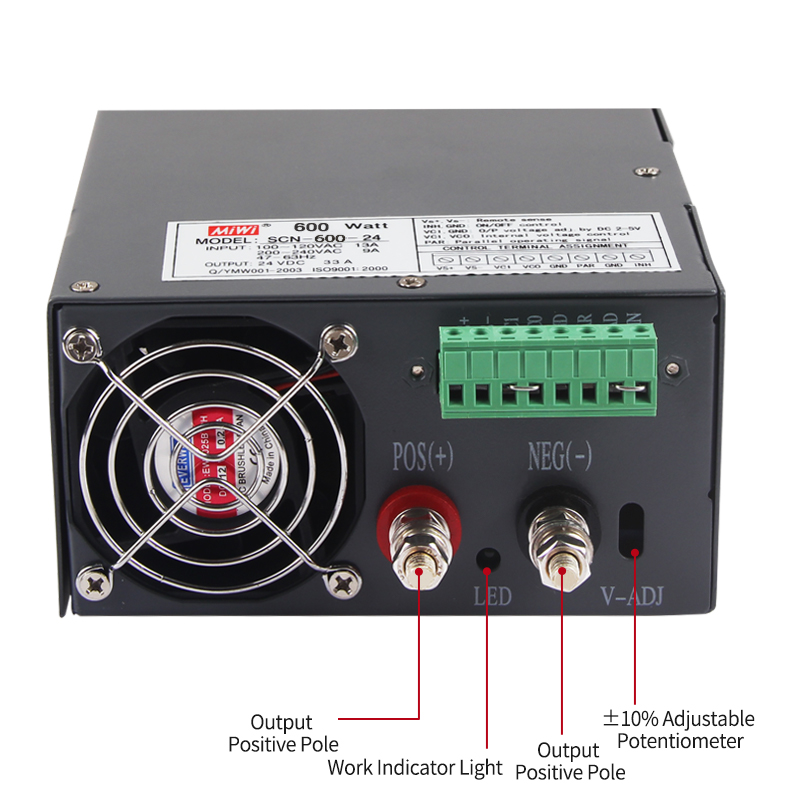

| Special function | DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual) |
| Safety Standards | CE |
| EMC Standards | Meet FCC Part 15J Conduction class A |
Please Note:
1. 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. Tolerence: includes set up tolerance, line regulation, load regulation
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment
must be re-confirmed that it still meets EMC directives. |
|
|
|
|
|
