D series is dual output switching power supply
D series is dual output switching power supply
You are here:Home >> Proudct >> D series is dual output switching power supply
D series is dual output switching power supply

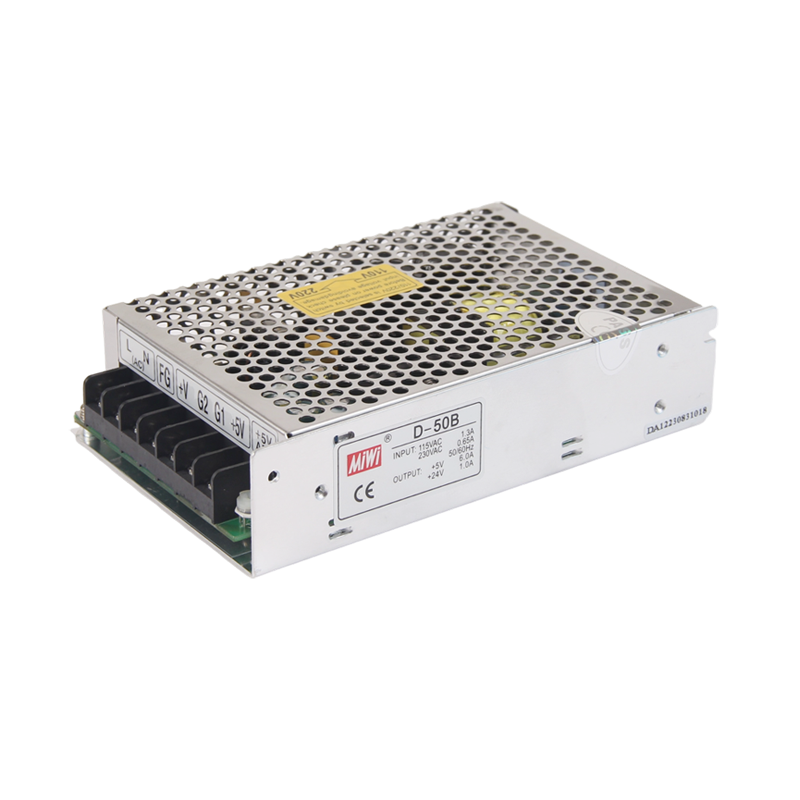

D-50
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：maggie-liu@yqmingwei.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
ModelD-50AD-50B
SpecificationCH1CH2CH1CH2
DC output voltage5V12V5V24V
Iutput Voltage Error±2%± 3, -7%±2%± 3, -5%
Rated output current6A2A6A1A
Output current rage1-6A0.3-2A1-6A0.2-1A
Tripple and Noise50mVp-p100mVp-p50mVp-p100mVp-p
Inlet stability(Note4)±0.5%±1%±0.5%±1%
Tolerance Voltage±0.5%±0.5%±0.5%±8%
DC output power54W54W
Efficiency73%73%

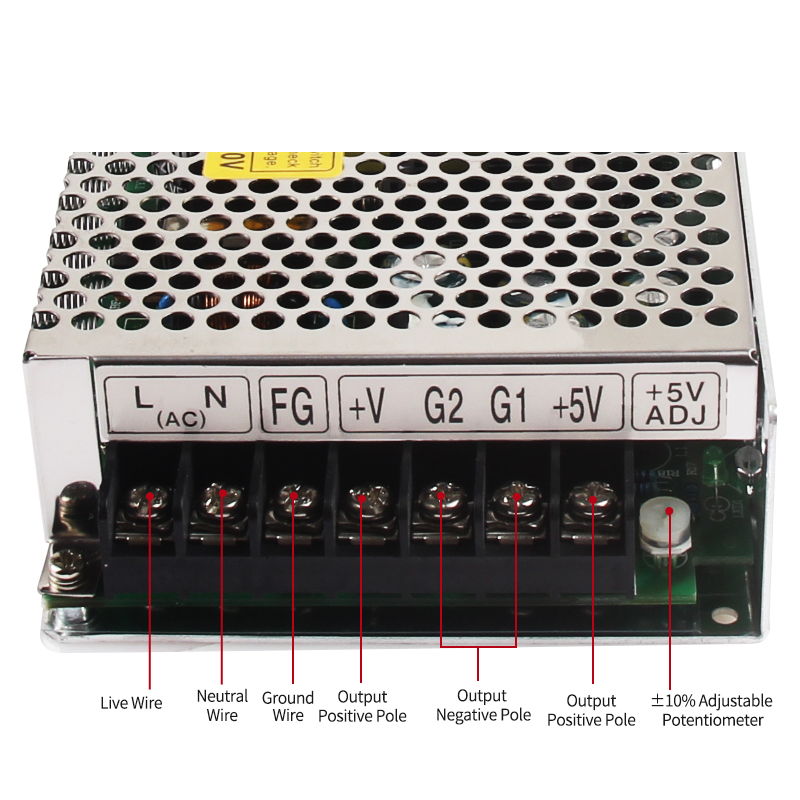

Adjustable range for DC voltage±10,-5%±10,-5%
AC input voltage range85~132VAC/170~264VAC;selected by switch 47~63Hz;240-370VDC
Input current1.3A/115V 0.65A/230V
AC Inrush CurrentCold-start current 18A/115V 36A/230V
Leakage current<0.5mA/240VAC
Overload protection105%150% TypeFOLDBACK ,Cut off output; Reset: auto recovery
Over-voltage protection
High-temperature protection
Temperature coefficient± 0.03% /℃ (0~50℃)
Start, Rise, Hold time200ms,50ms,30ms
Vibration10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltageBetween Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation resistanceInput and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms
Working temperature and humidity`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
Store temperature and humidity-20+85,10%95RH

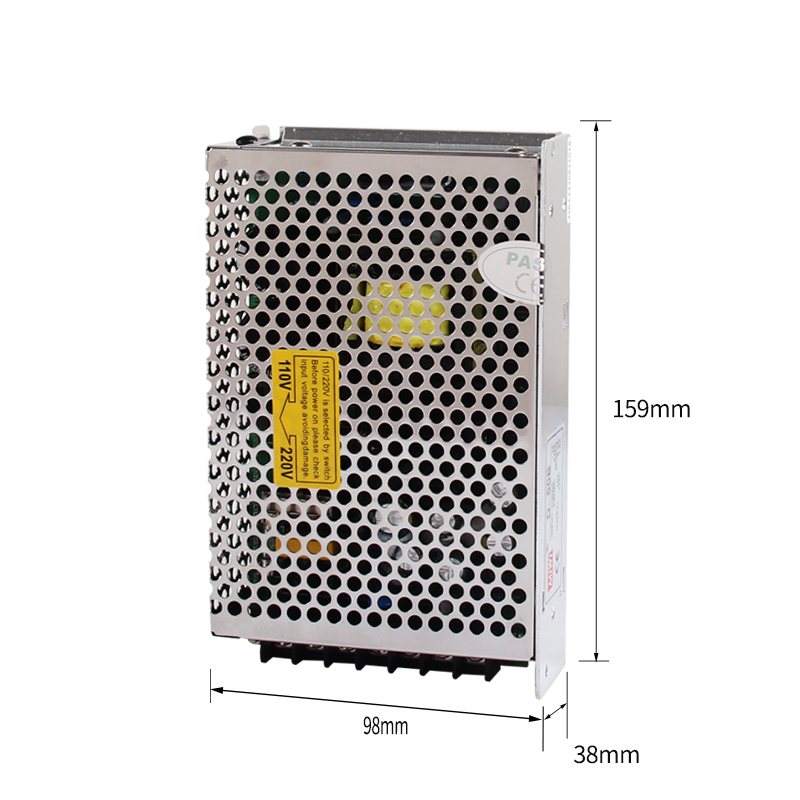

Overall dimension159*98*38mm
Weight0.52Kgs
Safety standardsMeet UL1012
EMC standardsMeet FCC Part 15J Conduction class B
