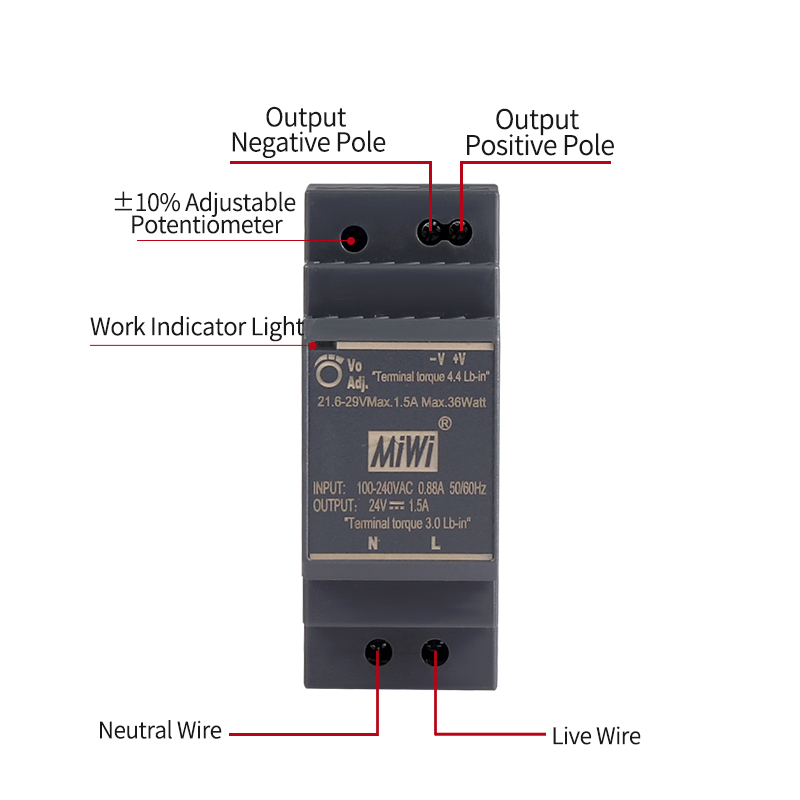

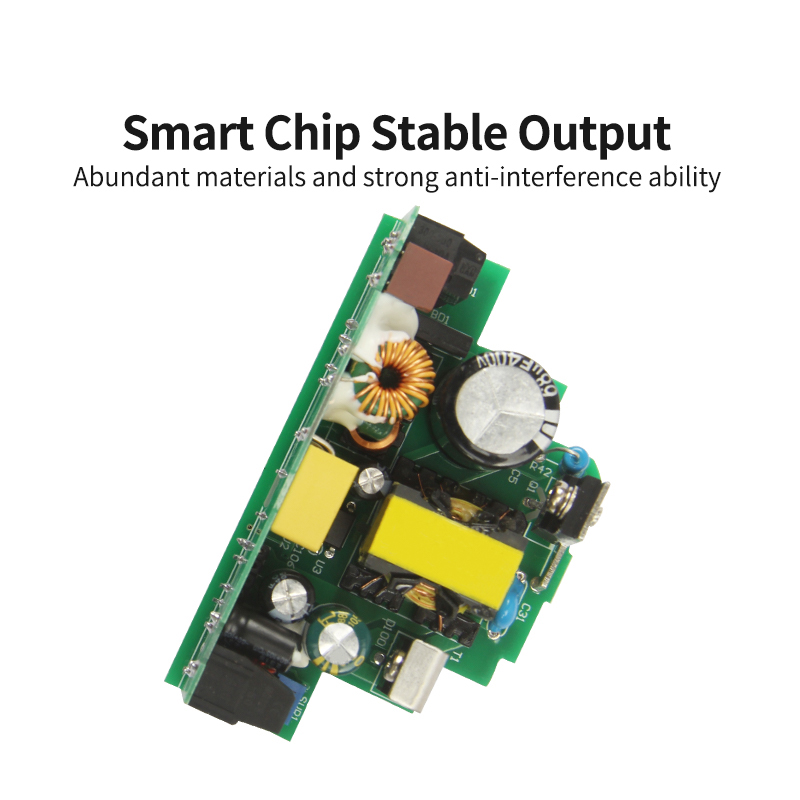

| MODEL | HDR-30-5 | HDR-30-12 | HDR-30-15 | HDR-30-24 | HDR-30-48 |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 3A | 2A | 2A | 1.5A | 0.75A |
| CURRENT RANGE | 0 ~3A | 0 ~2A | 0 ~ 2A | 0 ~ 0.63A | 0 ~ 0.75A |
| RATED POWER | 15W | 24W | 30W | 36W | 36W |
| RIPPLE & NOISE | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p |
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load |
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC available) 120 ~ 370VDC(390VDC available) |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY | 82% | 88% | 89% | 89% | 90% |
| AC CURRENT | 0.88A/115VAC 0.48A/230VAC |
| INRUSH CURRENT | COLD START 25A/115VAC 45A/230VAC |
| PROTECTION | OVERLOAD | 105 ~ 145% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 5.75 ~ 7.5V | 15 ~ 18V | 18.8 ~ 22.5V | 30 ~ 36V | 57.6~ 67.2V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to Derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03%/°C (0~50°C) RH non-condensing |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| OPERATING ALTITUDE | 2000 meters |
| SAFETY & EMC | SAFETY STANDARDS | TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH |
| EMC EMISSION | Parameter | Standard | Test Level / Note |
| Conducted | EN55032(CISPR32) | Class B |
| Radiated | EN55032(CISPR32) | Class B |
| Harmonic Current | EN61000-3-2 | Class A |
| Voltage Flicker | EN61000-3-3 | ------- |
| EMC IMMUNITY | EN55024, EN55035, EN61000-6-2, EN61204-3 |
| Parameter | Standard | Test Level /Note |
| ESD | EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A |
| Radiated Susceptibility | EN61000-4-3 | Level 3, criteria A |
| EFT/Burest | EN61000-4-4 | Level 3, criteria A |
| Surge | EN61000-4-5 | Level 4,2KV/L-N, criteria A |
| Conducted | EN61000-4-6 | Level 3, criteria A |
| Magnetic Field | EN61000-4-8 | Level 4, criteria A |
| Voltage Dips and interruptions | EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
| OTHERS | MTBF | 968.1K hrs min. MIL-HDBK-217F (25℃) |

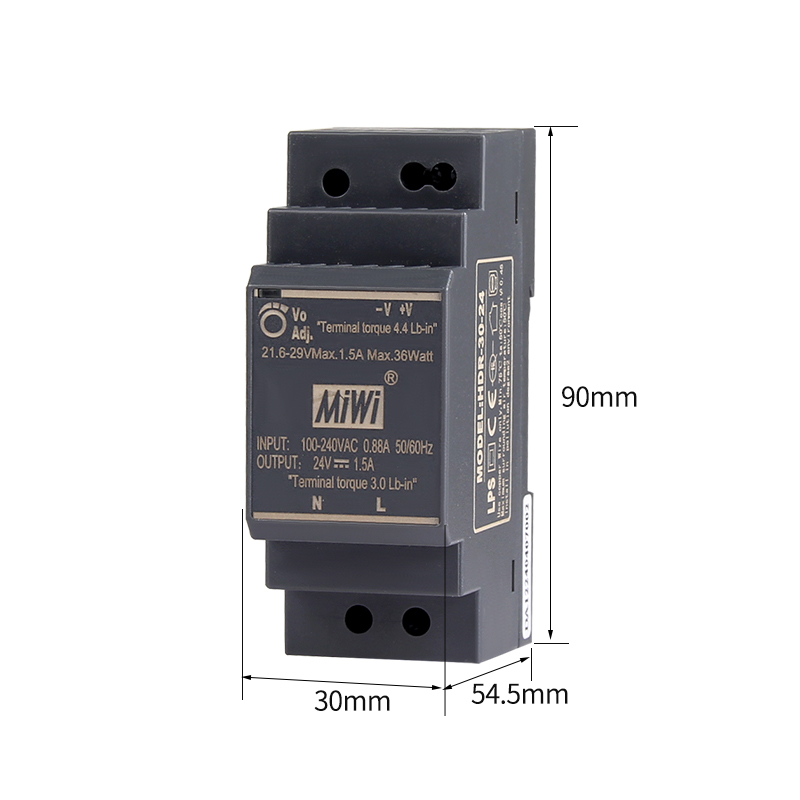

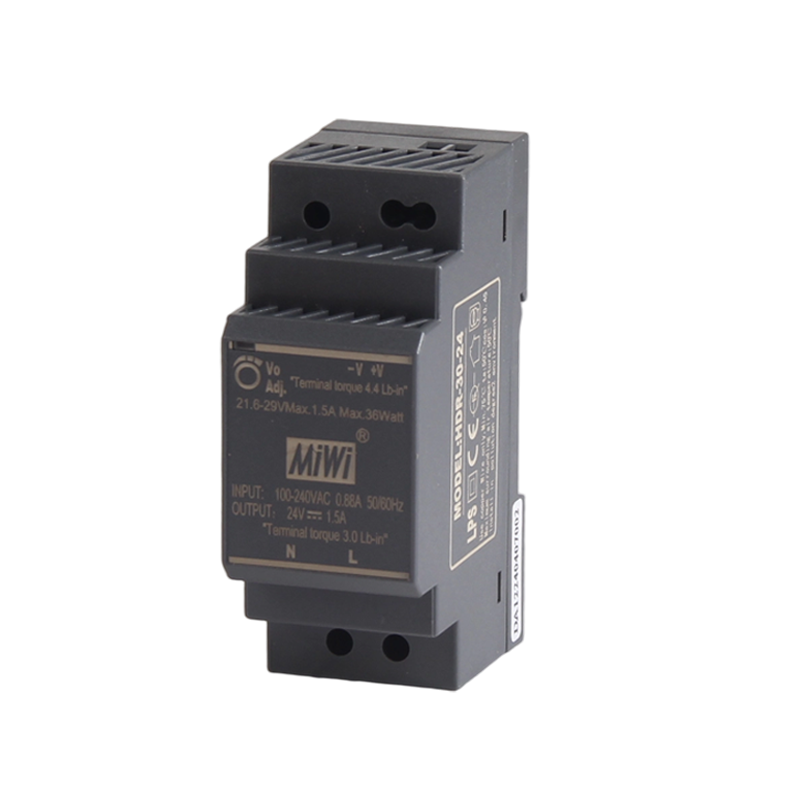

| DIMENSION | 35*90*54.5mm (W*H*D) |
| PACKING | 0.12Kg;96pcs/12.5Kg/1.04CUFT |
