HDR series is ultra-slim step sharp din rail switching power supply
HDR series is ultra-slim step sharp din rail switching power supply
You are here:Home >> Proudct >> HDR series is ultra-slim step sharp din rail switching power supply

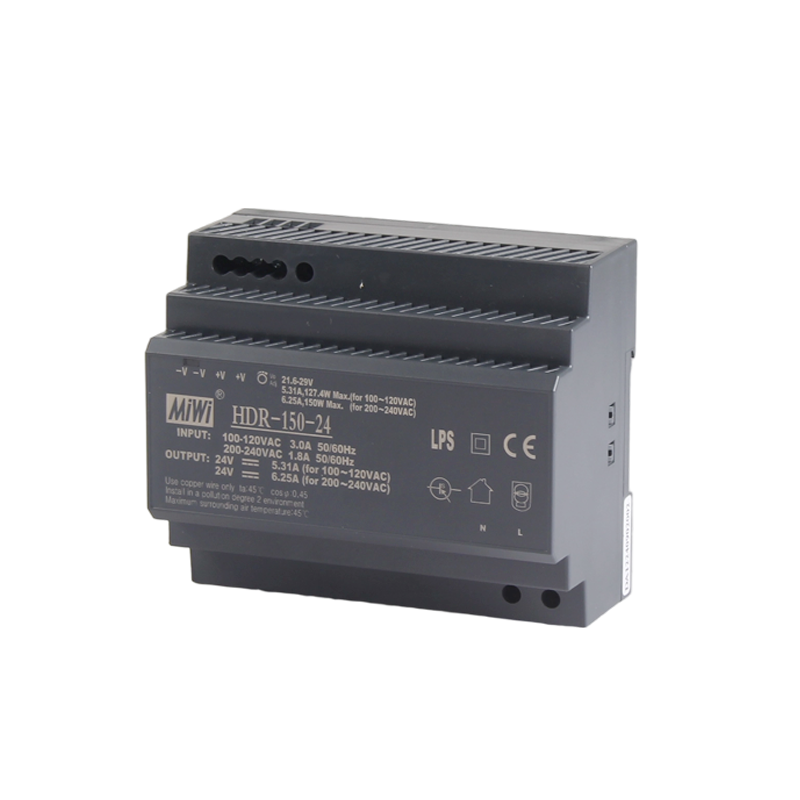

HDR series is ultra-slim step sharp din rail switching power supply
HDR-150
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：553168801@qq.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
MODELHDR-150-12 HDR-150-15HDR-150-24HDR-150-48
OUTPUTDC VOLTAGE12V15A24V48V
RATED CURRENT115VAC10.2A8.55A5.31A2.72A
230VAC11.3A9.5A6.25A3.2A
RATED POWER115VAC122.4W128.3W127.4W130.6W
230VAC135.6W142.5W150W153.6W
RIPPLE & NOISE (max.) 100mVp-p120mVp-p150mVp-p 200mVp-p
VOLTAGE ADJ. RANGE10.8~ 13.8V13.5 ~ 18V20.6 ~ 27.5V43.2 ~ 55.2V
VOLTAGE TOLERANCE ±1.0%±1.0%±1.0%±1.0%
LINE REGULATION±1.0%±1.0%±1.0%±1.0%
LOAD REGULATION±1.0%±1.0%±1.0%±1.0%
SETUP, RISE TIME500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
HOLD UPTIME (Typ.)30ms/230VAC 12ms/115VAC at full load

PROTECTION
OVERLOAD		105 ~135% rated output power
Hiccup mode when output voltage ＜50% , recovers automatically after fault condition is removed
Constant current limiting within 50%~100% rated output voltage,  recovers automatically after fault condition is removed
ENVIRONMENTWORKING TEMP. & HUMIDITY-30 ~ +70℃ (Refer to "Derating Curve") , 20 ~ 90% RH non-condensing
STORAGE TEMP. & HUMIDITY
‘-40 ~ +85℃, 10 ~ 95% RH non condensing
TEMP. COEFFICIENT
±℃ ℃ 0.03%/ (0 ~ ) - 45 RH non condensing
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETYWITHSTAND VOLTAGEI/P-O/P:4KVAC
ISOLATION RESISTANCEI/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
OTHERSMTBF3046.3K hrs min. Telcordia SR-332 (Bellcore) ; 535.9K hrs min. MIL-HDBK-217F (25℃)

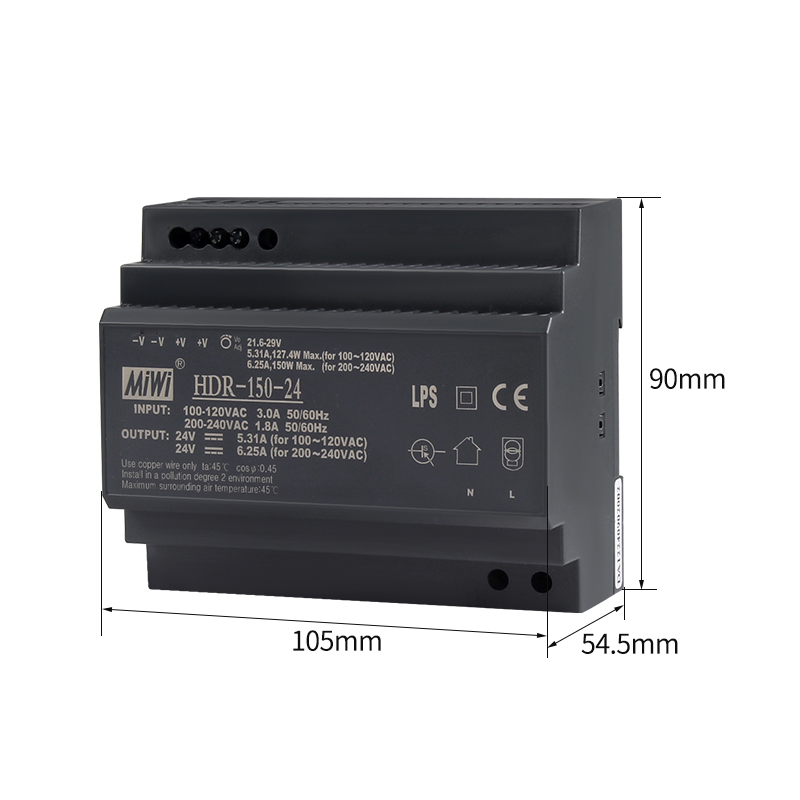

DIMENSION 105*90*54.5mm (W*H*D)
