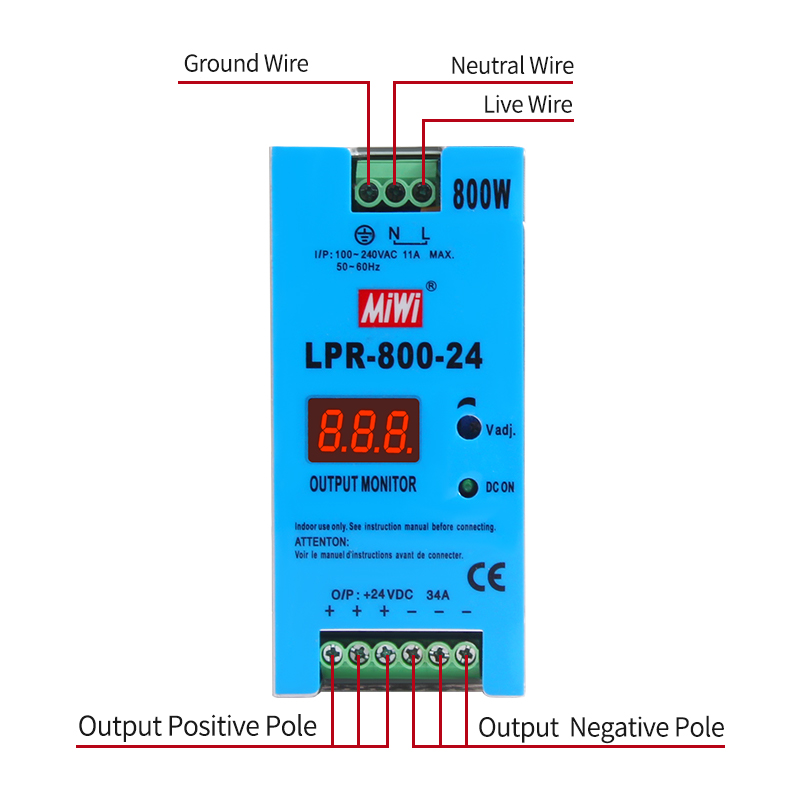

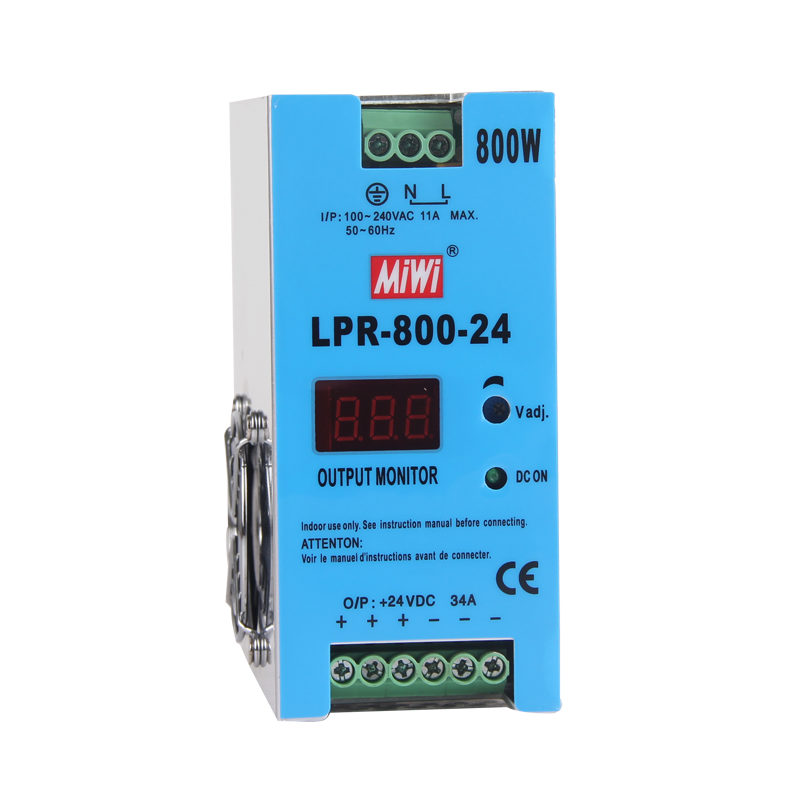

LPR-800LP series is din rail type switching power supply with output voltage digtal display
公司:Qianxiang Electric Technology Co., Ltd
电话:+86-577-62627101
邮箱:553168801@qq.com
地址:Wenzhou Yueqing, Zhejiang, China
分享:
立即咨询

LPR-800  800W DIN Rail Switching Power Supply

Item

Technical index

Output

DC Output Voltage

24V

36V

48V


Rated Current

33.3A

22.2A

16.7A


Rated Power

800W

800W

800W


Ripple & Noise

﹤340mv

﹤360mv

﹤480mv


Voltage Tolerance

±1%

±1%

±1%


Voltage Adj. Range

±10%


Load Regulation

±1%

±1%

±1%


Line Regulation

±1%

±1%

±1%

Input

Voltage Range

100VAC-240VAC  47Hz-63Hz/ 260VDC-380VDC


Efficiency

>91%

>92%

>92%


AC Current

﹤7A  230VAC


Power factor

PF>0.95/230VAC


Setup, Rise Time

200ms,50ms,20ms,230VAC

Protection

Overload

120%-145% cut off output


Over Voltage

>115%-140% cut off output


Short Circuit

Cut off output


Over Temperature

 Directly dissipating heat by fan

Environment

Working Temp, Humidity

-10℃~+50℃; 20%~90RH


Storage Temp, Humidity

-20℃~+85℃; 10%~95RH

Safety

Working Frequency Withstand Voltage

Input-Output: 1.5KVAC, Input-earth: 1.5KVAC, Output-earth: 0.5KVAC   1min


Insulation Resistance

 Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ

Others

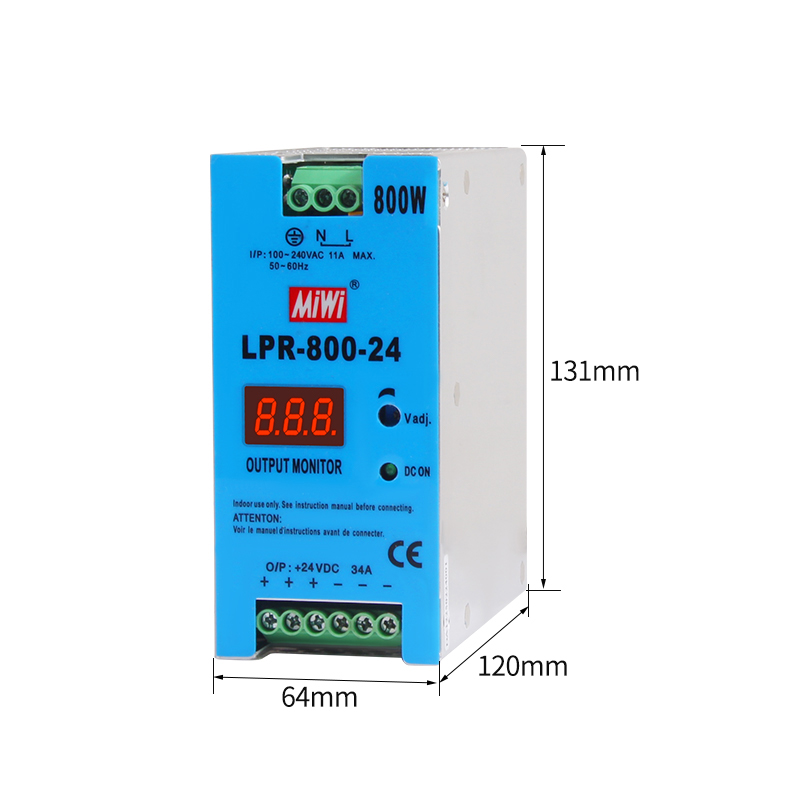

Dimension

131*120*64mm


Net Weight/Gross Weight

950/1020g
