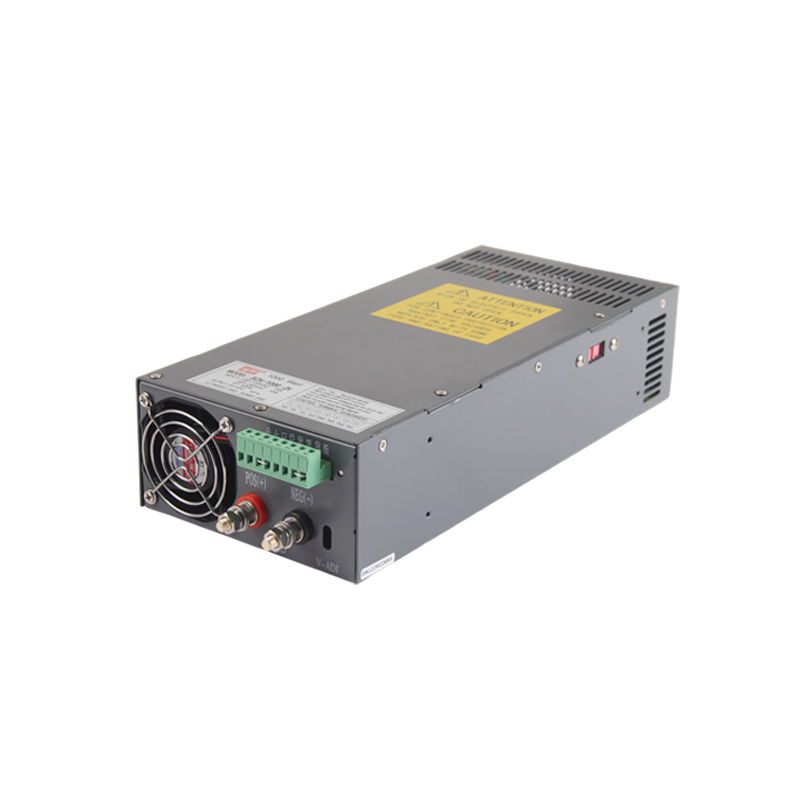

SCN-1000_Qianxiang Electric Technology Co., Ltd

Product Description

Model Specification	SCN-1000-12	SCN-1000-13.5	SCN-1000-15	SCN-1000-24	SCN-1000-27	SCN-1000-48	SCN-1000-110
DC Output Voltage	12V	13.5V	15V	24V	27V	48V	110V
Iutput Voltage Error	± 1%	± 1%	± 1%	± 1%	± 1%	± 1%
Rated Output Current	80A	74A	66A	40A	37A	20A
Output Current Range	0-80A	0-74A	0-66A	0-40A	0-37A	0-20A
Tripple and Noise	240mVp-p	240mVp-p	240mVp-p	240mVp-p	300mVp-p	300mVp-p
Voltage Adj range	±5.0% typical adjustment by potentiometer 20~100% adjustment by 1~5VDC external control
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Tolerance Voltage	± 1%	± 1%	± 1%	± 1%	± 1%	± 1%
DC Output Power	960W	999W	990W	960W	999W	960W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
AC Input Voltage Range	90 ~ 130VAC / 180 ~ 260VAC selected by switch
Input Current	14A/115VAC 8.0A/230VAC
AC Inrush Current	Cold-Start Current: 60A / 230VAC
Leakage Current	3.5mA/240VAC
Overload Protection	110 ~ 135% rated output power,Current limiting, delay shut down o/p voltage, re-power on to recover
Over Voltage Protection	110 ~ 135% follow to output set up point, Shut down o/p voltage, re-power on to recover
High Temperature Protection	>100℃ / measure by heat sink, near transformer,Shut down o/p voltage, re-power on to recover
Temperature Coefficient	± 0.04% /℃ (0~50℃)
Start, Rise, Hold time	800ms, 50ms, 16ms at full load
Vibration	10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Withstand Voltage	I/P-O/P, I/P-FG:1500VAC
Isolation Resistance	I/P-O/P, I/P-FG, 100M Ohms / 500VDC / 25 ℃/ 70% RH
Working Temp,Humidity	`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
Storage Temp,Humidity	`20℃~+85℃, 10%~95%RH
MTBF	120Khrs min. MIL-HDBK-217F (25℃ )

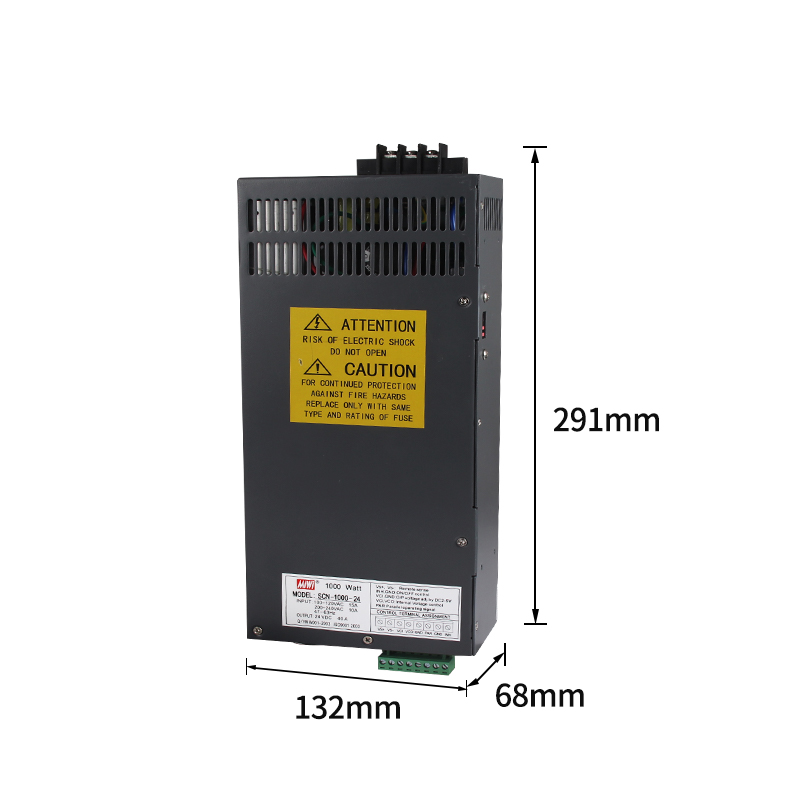

Overall Dimension	29113268 mm
Weight	2.65 kgs

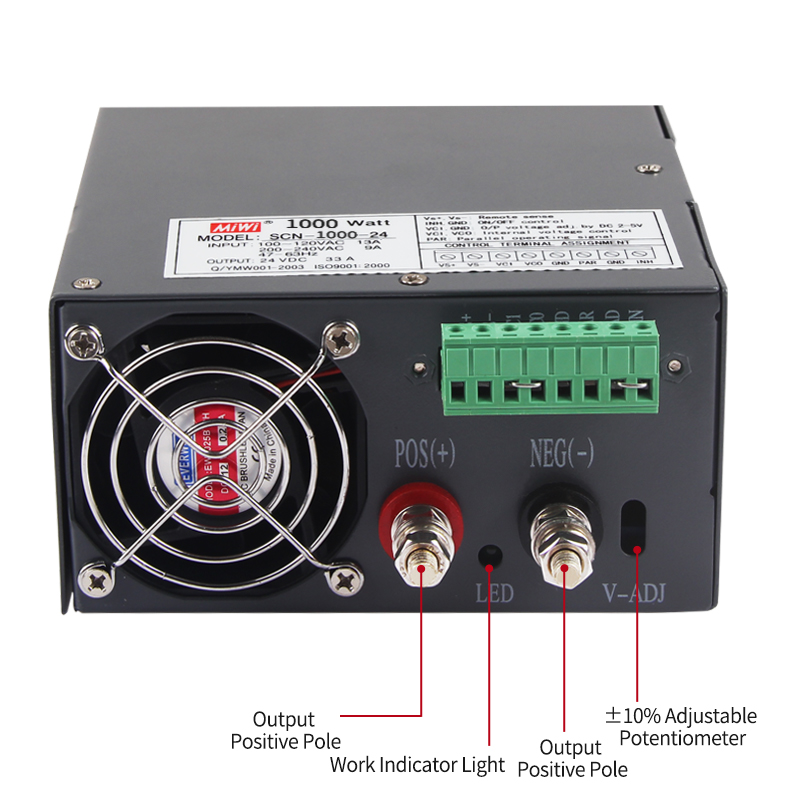

Special function	DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual)
Safety Standards	CE
EMC Standards	Meet FCC Part 15J Conduction class A
