| Model Specification | S-15-5 | S-15-12 | S-15-24 |
| DC Output Voltage | 5V | 12V | 24V |
| Iutput Voltage Error | ± 2% | ± 1% | ± 1% |
| Rated Output Current | 3A | 1.3A | 0.7A |
| Output Current Range | 0-3A | 0-1.3A | 0-0.7A |
| Tripple and Noise | 50mVp-p | 50mVp-p | 100mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 0.5% | ± 0.5% |
| DC Output Power | 15W | 15.6W | 16.8W |
| Efficiency | 65% | 68% | 72% |

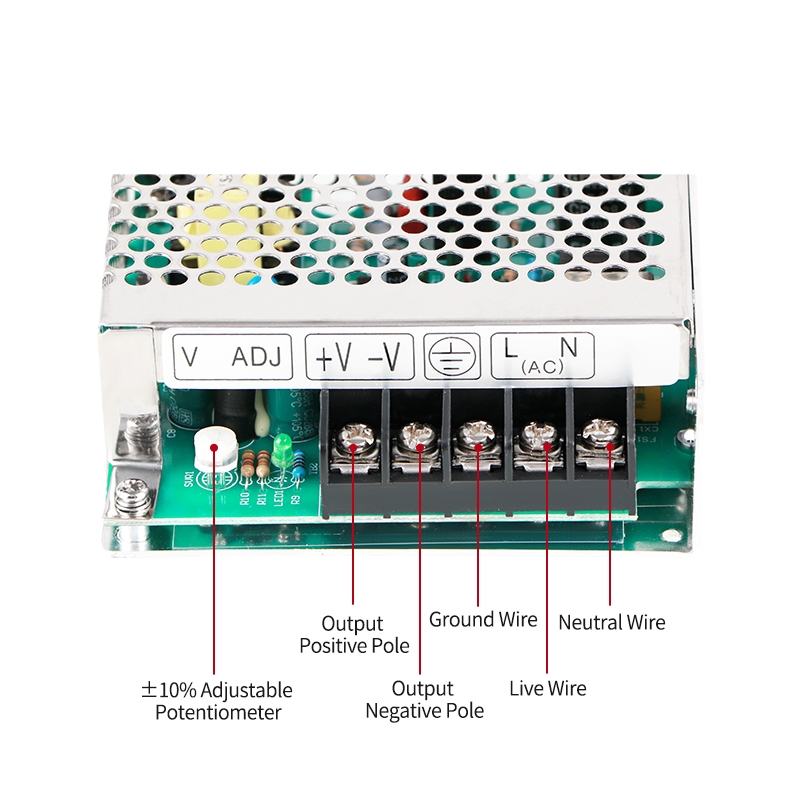

| Adjustable Range for DC Voltage | `+10, -5% | ± 10% | ± 10% |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | ||
| Input Current | 0.7A/115V 0.3A/230V | ||
| AC Inrush Current | Cold-Start Current: 15A/115V, 30A/230V | ||
| Leakage Current | <0.75mA/240VAC | ||
| Overload Protection | 105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery | ||
| Over Voltage Protection | ………… | ||
| High Temperature Protection | ………… | ||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | ||
| Start, Rise, Hold time | 800ms, 50ms, 30ms,/ 115VAC, 300ms, 50ms, 80ms, /230VAC | ||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | ||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | ||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | ||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | ||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | ||

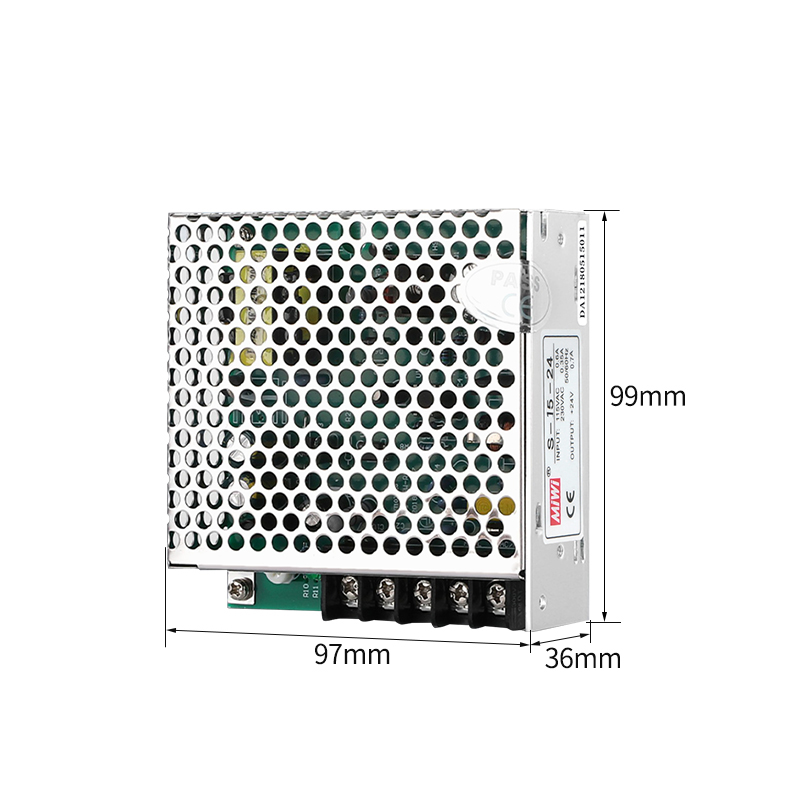

| Overall Dimension | 99*97*35mm | ||
| Weight | 0.3kgs | ||
| Safety Standards | CE | ||
| EMC Standards | Meet FCC Part 15J Conduction class B | ||
| 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. | |||
