S-60_Qianxiang Electric Technology Co., Ltd

Product Description

Model Specification	S-60-5V	S-60-12V	S-60-15V	S-60-24V
DC Output Voltage	5V	12V	15V	24V
Iutput Voltage Error	± 2%	± 1%	± 1%	± 1%
Rated Output Current	12A	5A	4A	2.5A
Output Current Range	0-12A	0-5A	0-4A	0-2.5A
Tripple and Noise	100mVp-p	120mVp-p	120mVp-p	120mVp-p
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Tolerance Voltage	± 1%	± 0.5%	± 0.5%	± 0.5%
DC Output Power	60W	60W	60W	60W
Efficiency	73%	76%	77%	79%
Adjustable Range for DC Voltage	`+10, -5%	± 10%	± 10%	± 10%
AC Input Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current	2A/115V 1A/230V
AC Inrush Current	Cold-Start Current: 30A/115V, 60A/230V
Leakage Current	<1mA/240VAC
Overload Protection	105%~150% Type: Cut Output, Reset: Auto Recovery
Over Voltage Protection	…………
High Temperature Protection	…………
Temperature Coefficient	± 0.03% /℃ (0~50℃)
Start, Rise, Hold time	800ms, 50ms, 10ms, /115VAC 300ms, 50ms, 80ms, /230VAC
Vibration	10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand Voltage	Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation Resistance	Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity	`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity	`20℃~+85℃, 10%~95%RH

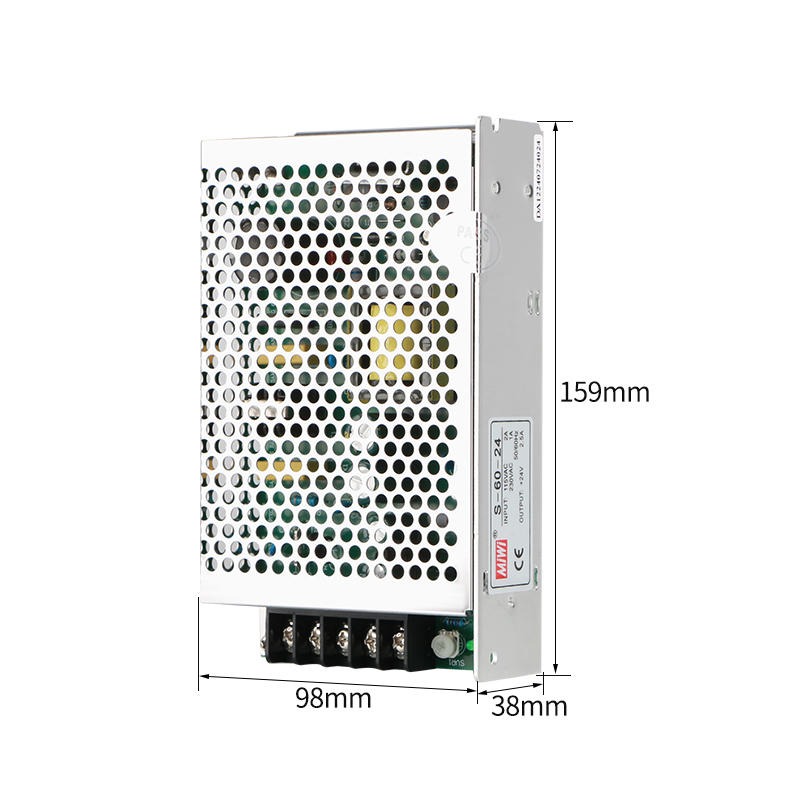

Overall Dimension	1599838mm
Weight	0.56kgs
Safety Standards	CE certificate
EMC Standards	Meet FCC Part 15J Conduction class B
1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C2,3,6 must be knocked down.
