| Model Specification | S-50-5V | S-50-12V | S-50-15V | S-50-24V |
| DC Output Voltage | 5V | 12V | 15V | 24V |
| Iutput Voltage Error | ± 2% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 10A | 4.2A | 3.4A | 2.1A |
| Output Current Range | 0-10A | 0-4.2A | 0-3.4A | 0-2.1A |
| Tripple and Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC Output Power | 50W | 50.4W | 51W | 50.4W |
| Efficiency | 71% | 78% | 78% | 82% |
| Adjustable Range for DC Voltage | `+10, -5% | ± 10% | ± 10% | ± 10% |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
| Input Current | 1.3A/115V 0.65A/230V |
| AC Inrush Current | Cold-Start Current: 18A/115V, 36A/230V |
| Leakage Current | <1mA/240VAC |
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery |
| Over Voltage Protection | ………… |
| High Temperature Protection | ………… |
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) |
| Start, Rise, Hold time | 200ms, 100ms, 20ms |
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH |
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH |

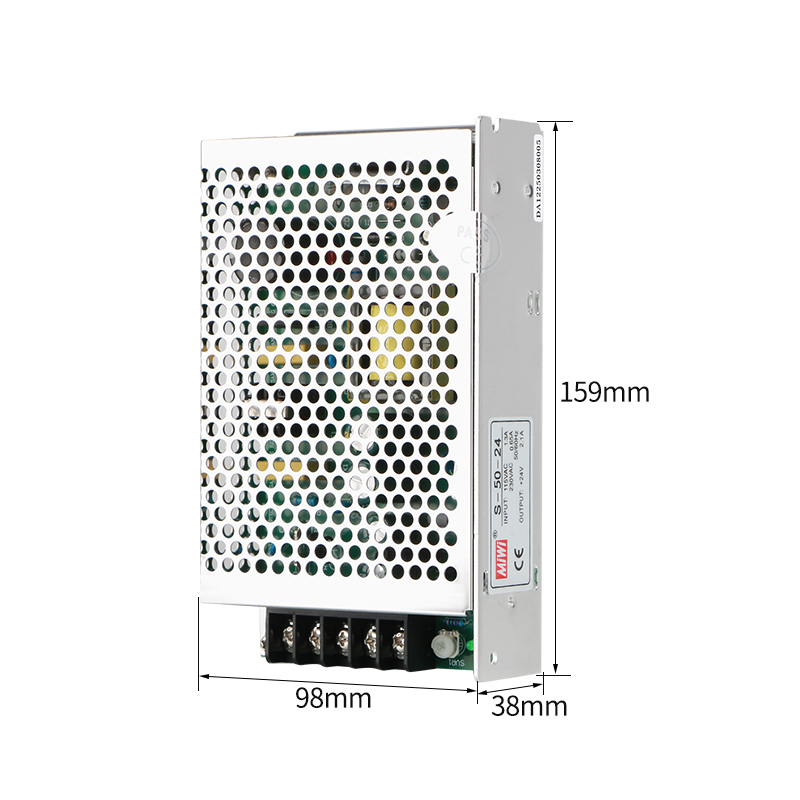

| Overall Dimension | 159*98*38mm |
| Weight | 0.5kgs |
| Safety Standards | CE |
| EMC Standards | Meet FCC Part 15J Conduction class B |
