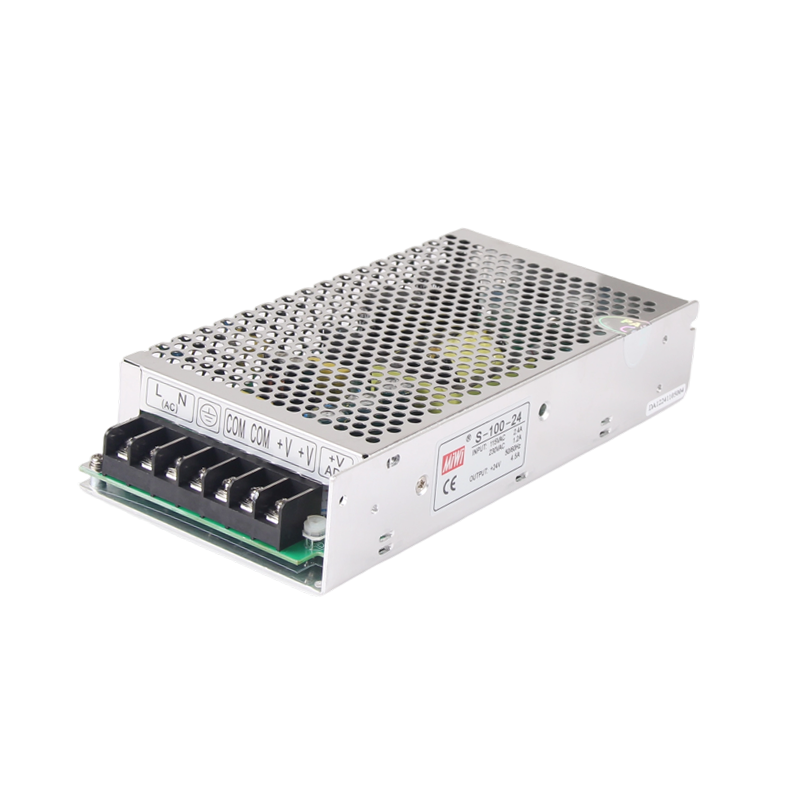

S-100_Qianxiang Electric Technology Co., Ltd

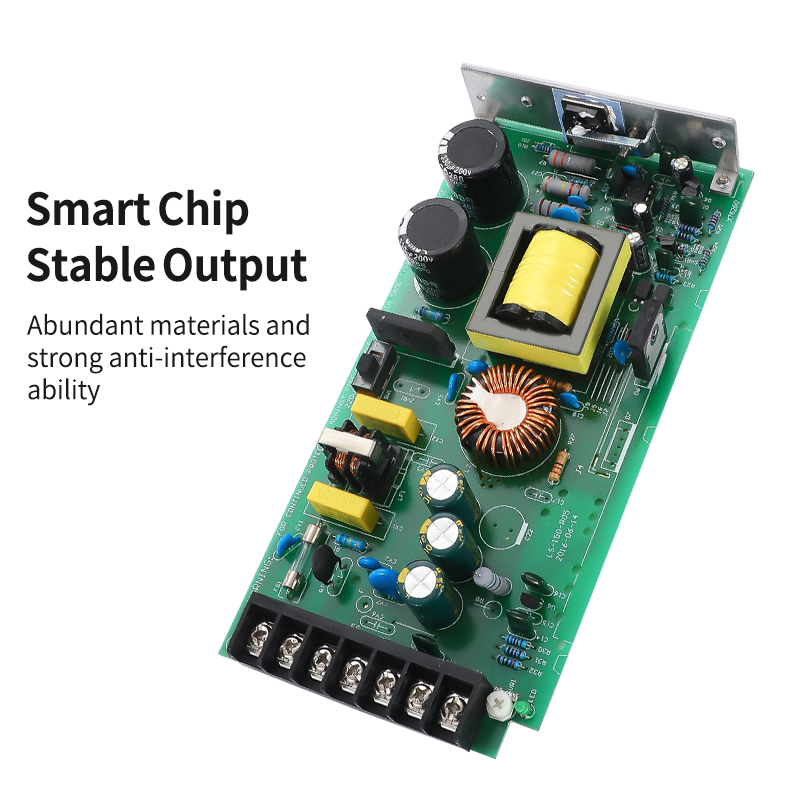

Product Description

Model Specification	S-100-3V	S-100-5V	S-100-7.5V	S-100-12V	S-100-15V	S-100-24V	S-100-27V	S-100-48V
DC Output Voltage	3V	5V	7.5V	12V	15V	24V	27V	48V
Iutput Voltage Error	± 2%	± 2%	± 1%	± 1%	± 1%	± 1%	± 1%	± 1%
Rated Output Current	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
Output Current Range	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
Tripple and Noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.3%	± 0.3%	± 0.2%	± 0.2%	± 0.2%
Tolerance Voltage	± 0.5%	± 0.5%	± 0.5%	± 0.3%	± 0.3%	± 0.2%	± 0.2%	± 0.2%
DC Output Power	60W	100W	102W	102W	100.5W	108W	99.9W	96W
Efficiency	70%	78%	80%	81%	81%	84%	84%	84%
Adjustable Range for DC Voltage	2.85-3.3	4.75-5.5	6.75-8.25	10.8-13.2	13.5-16.5	21.6-26.4	26-32	43.2-52.8

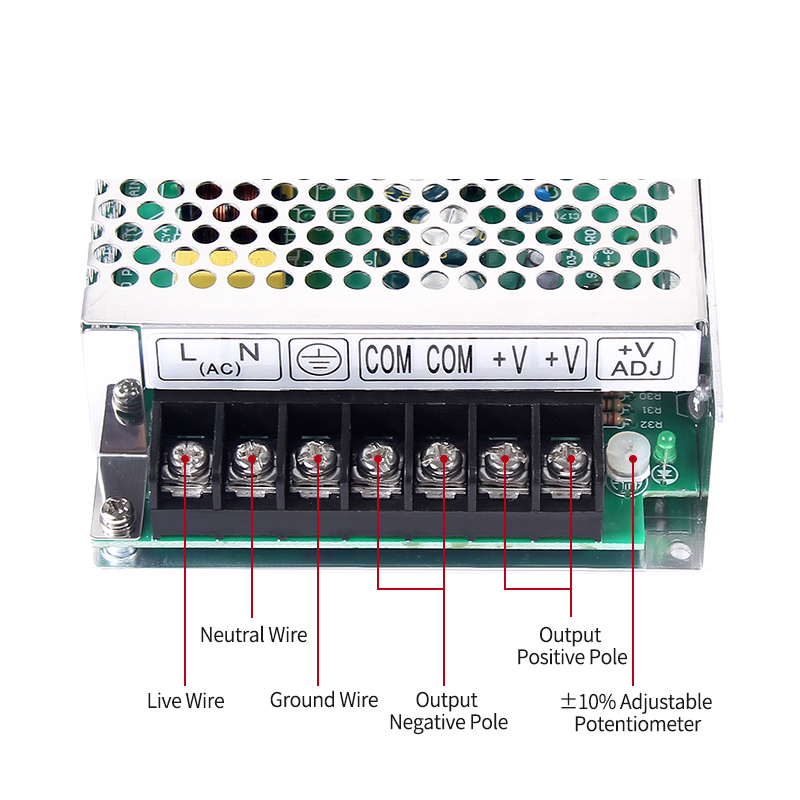

AC Input Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current	2.4A/115V 1.2A/230V
AC Inrush Current	Cold-Start Current: 30A/115V, 60A/230V
Leakage Current	<1mA/240VAC
Overload Protection	105%~150% Type: Cut Output, Reset: Auto Recovery
Over Voltage Protection	…………
High Temperature Protection	…………
Temperature Coefficient	± 0.03% /℃ (0~50℃)
Start, Rise, Hold time	200ms, 100ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand Voltage	Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation Resistance	Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity	`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity	`20℃~+85℃, 10%~95%RH

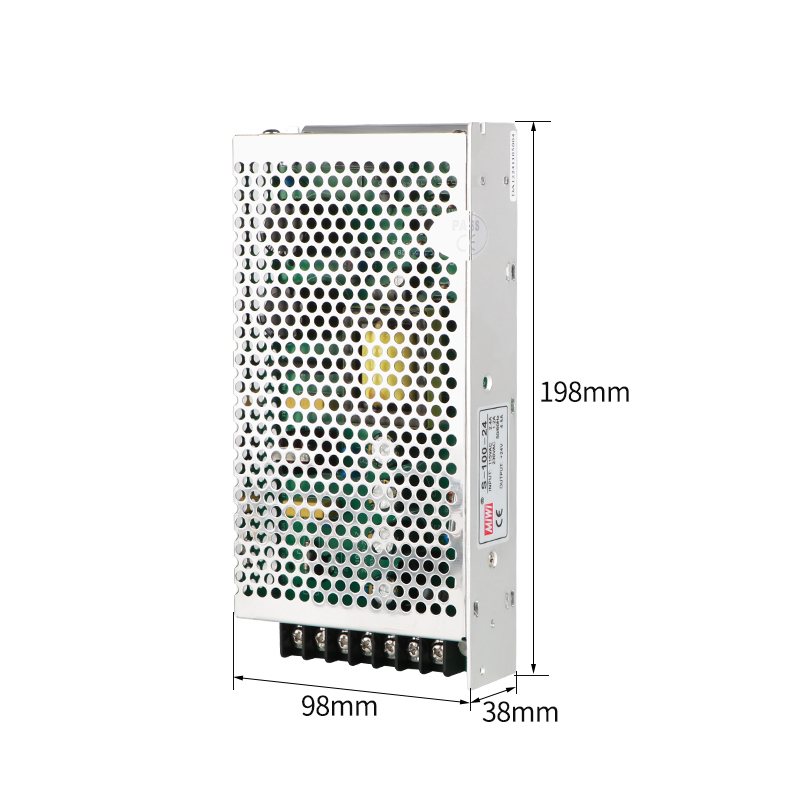

Overall Dimension	1999838mm
Weight	0.65kgs
Safety Standards	CE
EMC Standards	Meet FCC Part 15J Conduction class B
1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%.
