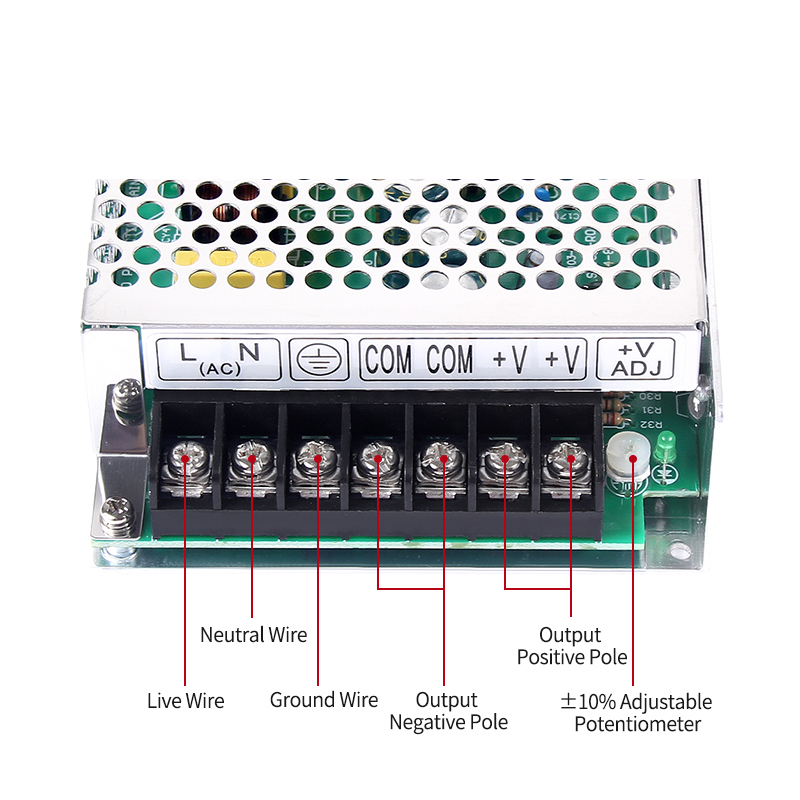

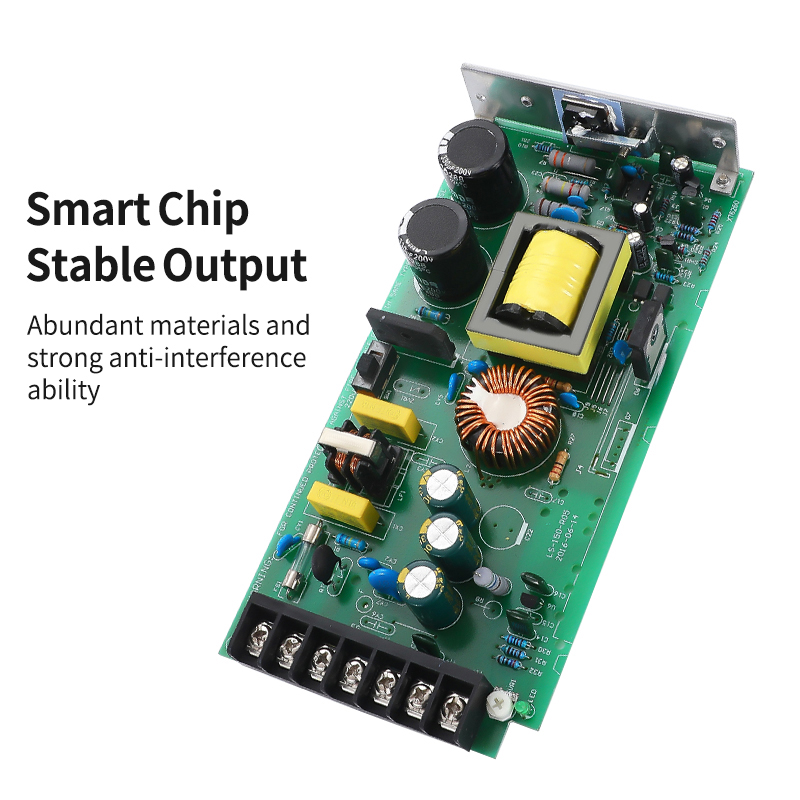

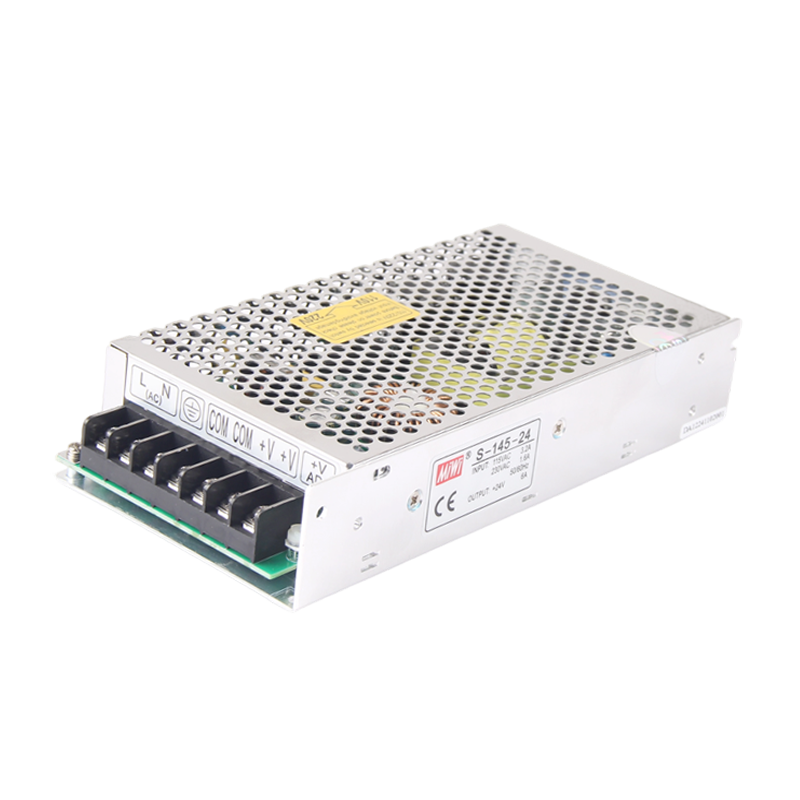

| Model Specification | S-145-5V | S-145-7.5V | S-145-12V | S-145-24V | S-145-36V |
| DC Output Voltage | 5V | 7.5V | 12V | 24V | 36V |
| Iutput Voltage Error | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 25A | 18A | 12A | 6A | 4A |
| Output Current Range | 0-25A | 0-18A | 0-12A | 0-6A | 0-4A |
| Tripple and Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.2% | ± 0.2% |
| Tolerance Voltage | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.2% | ± 0.2% |
| DC Output Power | 125W | 135W | 144W | 144W | 144W |
| Efficiency | 78% | 81% | 81% | 84% | 85% |
| Adjustable Range for DC Voltage | 4.75-5.5V | 6-8V | 10.8-13.2V | 21-28V | 32.5-39.7V |
| AC Input Voltage Range | 88~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | ||||
| Input Current | 3.2A/115V 1.6A/230V | ||||
| AC Inrush Current | Cold-Start Current: 35A/115V, 60A/230V | ||||
| Leakage Current | <1mA/240VAC | ||||
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery | ||||
| Over Voltage Protection | ………… | ||||
| High Temperature Protection | ………… | ||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | ||||
| Start, Rise, Hold time | 200ms, 50ms, 20ms | ||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | ||||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | ||||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | ||||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | ||||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | ||||

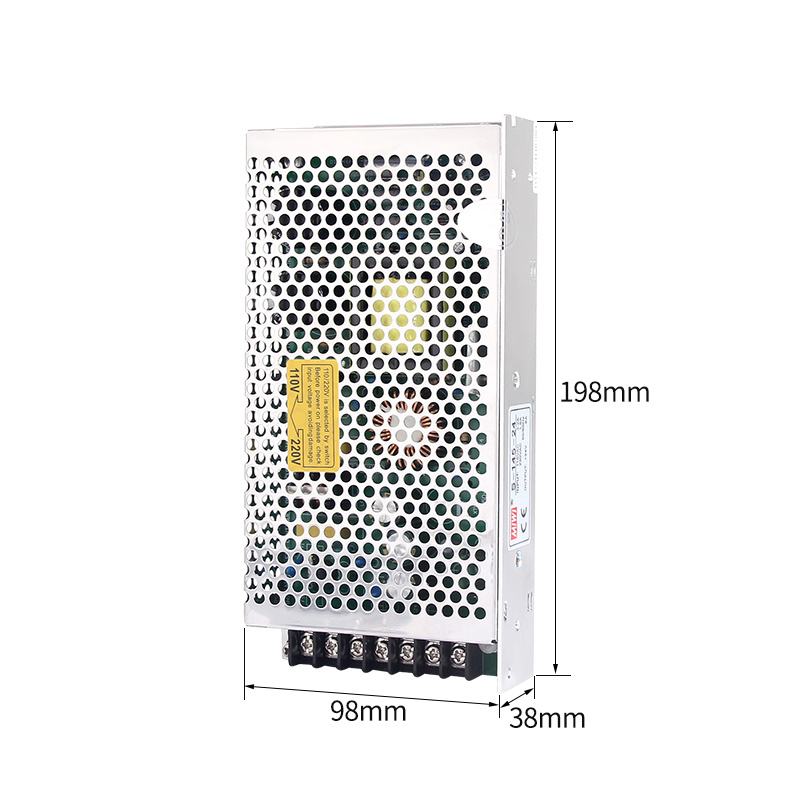

| Overall Dimension | 199*98*38mm | ||||
| Weight | 0.7kgs | ||||
| Safety Standards | CE | ||||
| EMC Standards | Meet FCC Part 15J Conduction class B | ||||
| 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. | |||||
