| Model Specification | S-150-5V | S-150-7.5V | S-150-9V | S-150-12V | S-150-13.5V | S-150-15V | S-150-24V | S-150-27V | S-150-48V |
| DC Output Voltage | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Iutput Voltage Error | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 30A | 20A | 16.7A | 12.5A | 11.2A | 10A | 6.5A | 5.6A | 3.2A |
| Output Current Range | 0-30A | 0-20A | 0-16.7A | 0-12.5A | 0-11.2A | 0-10A | 0-6.5A | 0-5.6A | 0-3.2A |
| Tripple and Noise | 150mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 240mVp-p | 240mVp-p | 240mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.2% | ± 0.2% | ± 0.2% |
| Tolerance Voltage | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.2% | ± 0.2% | ± 0.2% |
| DC Output Power | 150W | 150W | 150.3W | 150W | 151.2W | 150W | 156W | 151.2W | 153.6W |
| Efficiency | 78% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% |
| Adjustable Range for DC Voltage | 4.5-5.5V | 6-8.3V | 8-10.4V | 10.6-13.2V | 12-15V | 13.5-16.5V | 21-28V | 24-30V | 43-53V |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | ||||||||
| Input Current | 3.2A/115V 1.6A/230V | ||||||||
| AC Inrush Current | Cold-Start Current: 35A/115V, 60A/230V | ||||||||
| Leakage Current | <3.5mA/240VAC | ||||||||
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery | ||||||||
| Over Voltage Protection | ………… | ||||||||
| High Temperature Protection | ………… | ||||||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | ||||||||
| Start, Rise, Hold time | 100ms, 50ms, 20ms | ||||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | ||||||||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | ||||||||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | ||||||||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | ||||||||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | ||||||||

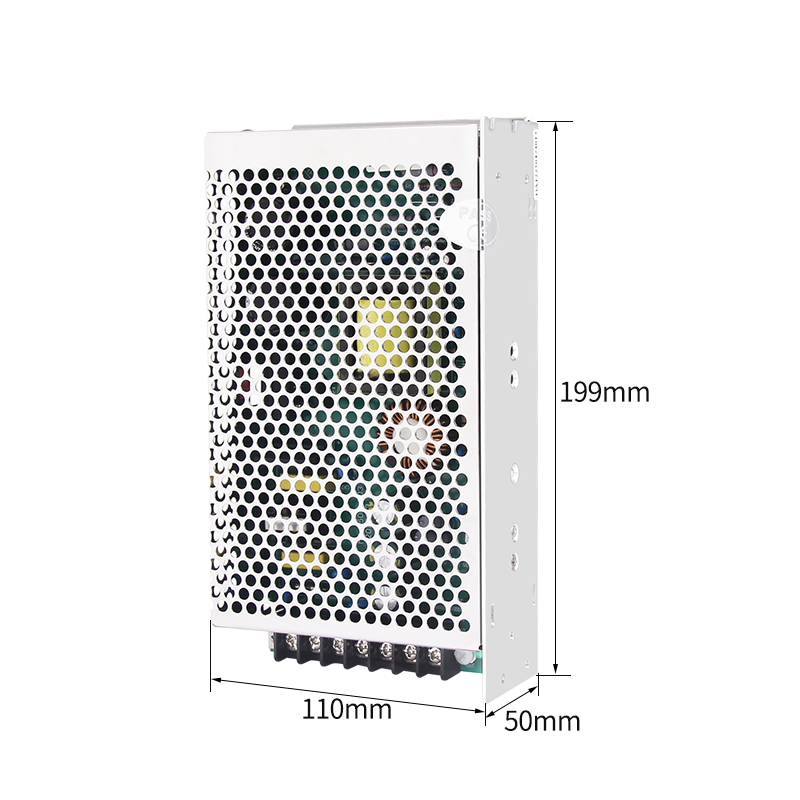

| Overall Dimension | 199*110*50mm | ||||||||
| Weight | 0.8kgs | ||||||||
| Safety Standards | CE | ||||||||
| EMC Standards | Meet FCC Part 15J Conduction class B | ||||||||
| 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C2,3,11 must be knocked down. | |||||||||
