| Model Specification | S-201-5V | S-201-7.5V | S-201-12V | S-201-13.5V | S-201-15V | S-201-24V | S-201-27V | S-201-48V | S-201-29 |
| DC Output Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | 29V |
| Iutput Voltage Error | ± 2% | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 40A | 26.5A | 16.5A | 14.7A | 13A | 8.3A | 7.4A | 4.2A | 6.9A |
| Output Current Range | 0-40A | 0-26.5A | 0-16.5A | 0-14.7A | 0-13A | 0-8.3A | 0-7.4A | 0-4.2A | 0-7A |
| Tripple and Noise | 180mVp-p | 180mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | 150mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC Output Power | 200W | 198.75W | 198W | 198.45W | 198W | 199.2W | 199.8W | 201.6W | 200.1W |
| Efficiency | 75% | 75% | 79% | 79% | 80% | 81% | 82% | 84% | 82% |
| Adjustable Range for DC Voltage | 4.5-5.6V | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-32V | 41-56V | 26-32V |
| AC Input Voltage Range | 90~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | ||||||||
| Input Current | 4.5A/115V 2.5A/230V | ||||||||
| AC Inrush Current | Cold-Start Current: 25A/115V, 50A/230V | ||||||||
| Leakage Current | <3.5mA/240VAC | ||||||||
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery | ||||||||
| Over Voltage Protection | 5.75 ~ 6.75V | 9.40V~10.90V | 13.8V~16.2V | 15.5V-18.2V | 18V~21V | 27.6V~32.4V | 33.7 ~ 39.2V | 57.6 ~ 67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| High Temperature Protection | ≥90°c (RTH3) Detect on inside ambient temperature | ||||||||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | ||||||||
| Start, Rise, Hold time | 200ms, 100ms, 20ms | ||||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | ||||||||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | ||||||||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | ||||||||

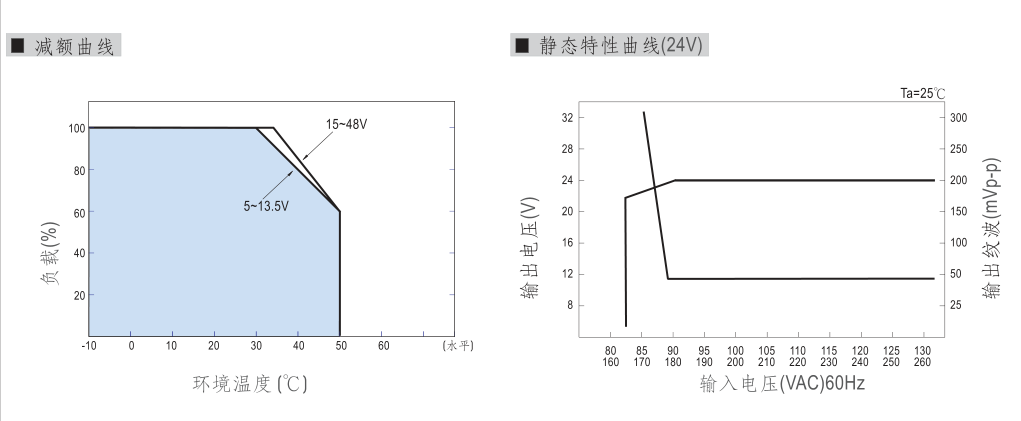

| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | ||||||||
| Storage Temperature and Humidity | -20°C~+85°C,10%~95%RH | ||||||||

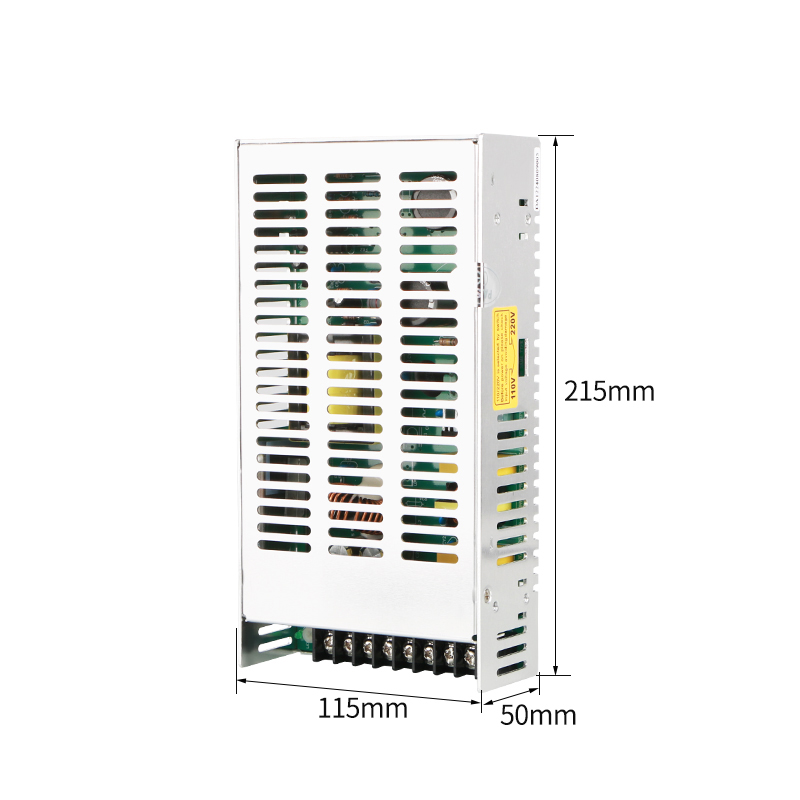

| Overall Dimension | 215*115*50 mm | ||||||||
| Weight | 0.9Kgs | ||||||||
| Safety Standards | CE | ||||||||
| EMC Standards | Meet FCC Part 15J Conduction class B | ||||||||
| Note: | 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.5. Load stability test: the load is from 0% to 100%, others 60%. 6. C3.4 must be knocked down, | ||||||||
