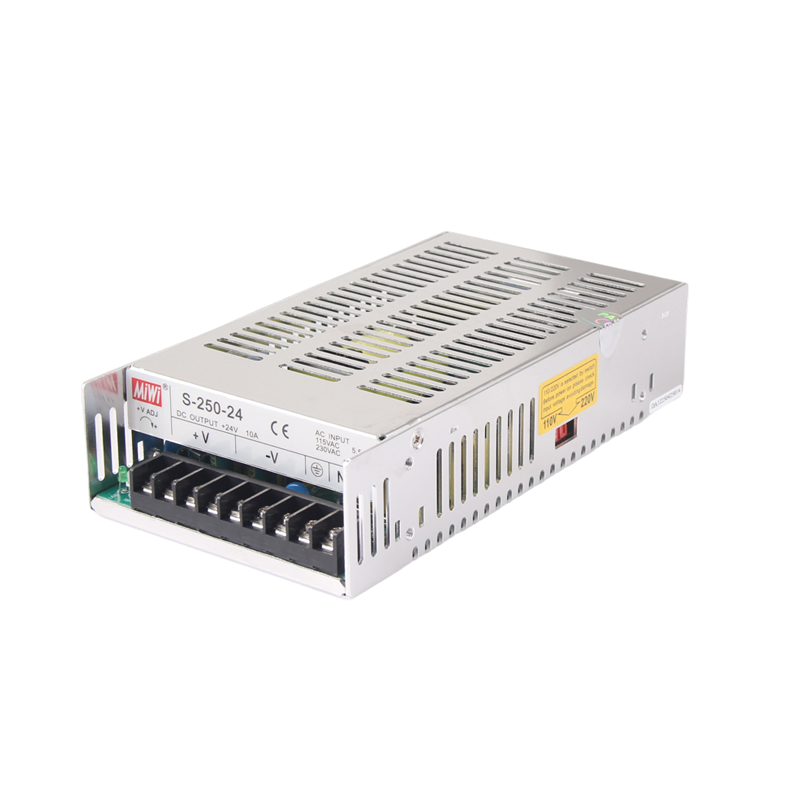

| Model Specification | S-250-5V | S-250-12V | S-250-13.5V | S-250-15V | S-250-24V | S-250-27V | S-250-48V |
| DC Output Voltage | 5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Iutput Voltage Error | ± 2% | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 45A | 20A | 18.6A | 16.7A | 10A | 9A | 5A |
| Output Current Range | 0-45A | 0-20A | 0-18.6A | 0-16.7A | 0-10A | 0-9A | 0-5A |
| Tripple and Noise | 200mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 240mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC Output Power | 247.5W | 240W | 248W | 250.5W | 240W | 243W | 240W |
| Efficiency | 75% | 79% | 79% | 80% | 81% | 82% | 84% |
| Adjustable Range for DC Voltage | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-32V | 41-56V |
| AC Input Voltage Range | 88~132VAC/176~264VAC selected by switch 47~63Hz; 240~370VDC | ||||||
| Input Current | 5A/115V 2.5A/230V | ||||||
| AC Inrush Current | Cold-Start Current: 30A/115V, 60A/230V | ||||||
| Leakage Current | <3.5mA/240VAC | ||||||
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery | ||||||
| Over Voltage Protection | ………… | ||||||
| High Temperature Protection | ………… | ||||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | ||||||
| Start, Rise, Hold time | 200ms, 100ms, 20ms | ||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | ||||||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | ||||||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | ||||||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | ||||||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | ||||||

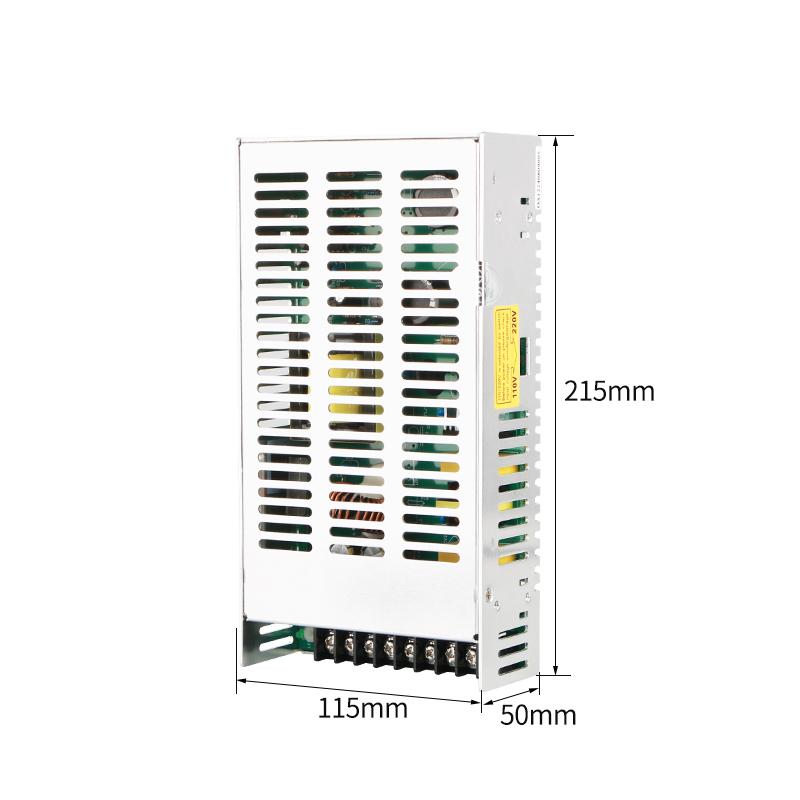

| Overall Dimension | 215*115*50 mm | ||||||
| Weight | 1.10 kgs | ||||||
| Safety Standards | CE | ||||||
| EMC Standards | Meet FCC Part 15J Conduction class B | ||||||
| Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C3.4 must be knocked down, | |||||||
