| Model Specification | S-350-5V | S-350-7.5V | S-350-12V | S-350-13.5V | S-350-15V | S-350-24V | S-350-27V | S-350-36V | S-350-48V |
| DC Output Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 36V | 48V |
| Iutput Voltage Error | ± 2% | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 50A | 40A | 29A | 25.8A | 23.2A | 14.6A | 13A | 9.7A | 7.3A |
| Output Current Range | 0-50A | 0-40A | 0-29A | 0-25.8A | 0-23.2A | 0-14.6A | 0-13A | 0-9.7A | 0-7.3A |
| Tripple and Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC Output Power | 250W | 300W | 348W | 348.5W | 348W | 350.4W | 351W | 349W | 350.4W |
| Efficiency | 73% | 76% | 74% | 79% | 78% | 81% | 82% | 83% | 83% |
| Adjustable Range for DC Voltage | 4.5-5.6V | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-32V | 27-39V | 40-56V |
| AC Input Voltage Range | 90~132VAC/180~264VAC selected by switch 47~63Hz; 240~370VDC | ||||||||
| Input Current | 6.5A/115V 4A/230V | ||||||||
| AC Inrush Current | Cold-Start Current: 25A/115V, 50A/230V | ||||||||
| Leakage Current | <3.5mA/240VAC | ||||||||
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery | ||||||||
| Over Voltage Protection | ………… | ||||||||
| High Temperature Protection | ………… | ||||||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | ||||||||
| Start, Rise, Hold time | 200ms, 100ms, 20ms | ||||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | ||||||||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | ||||||||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | ||||||||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | ||||||||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | ||||||||

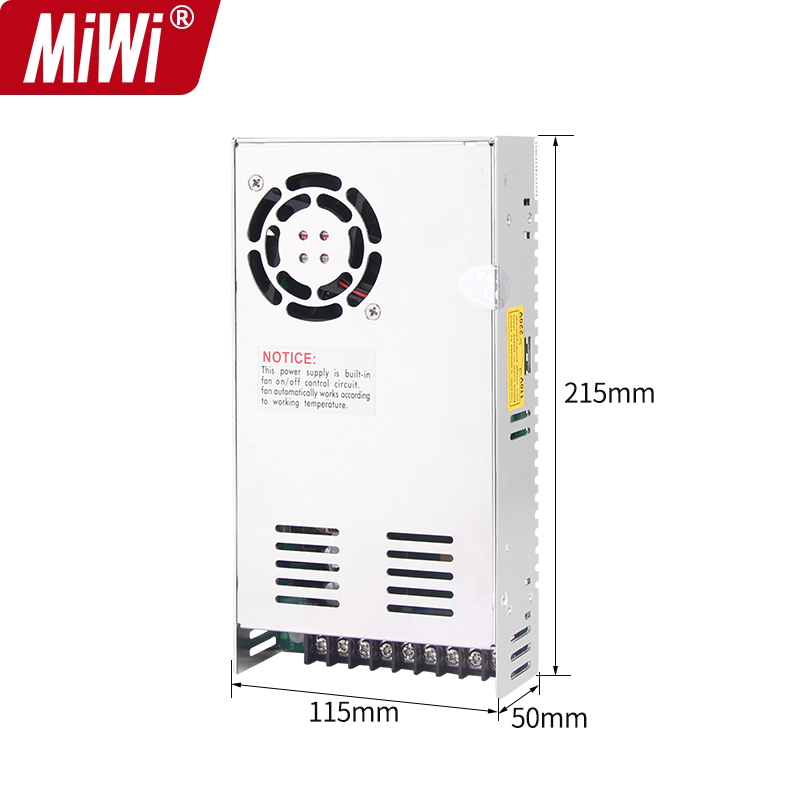

| Overall Dimension | 215*115*50 mm | ||||||||
| Weight | 1.15 kgs | ||||||||
| Safety Standards | CE | ||||||||
| EMC Standards | Meet FCC Part 15J Conduction class B | ||||||||
| Please Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C3.4 must be knocked down, | |||||||||
