| Model | S-400-5 | S-400-12 | S-400-13.5 | S-400-15 | S-400-24 | S-400-36 | S-400-48 |
| Output | DC voltage | 5V | 12V | 13.5V | 15V | 24V | 36V | 48V |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated current | 60A | 33A | 28A | 27A | 16.5A | 11A | 8.3A |
| Current range | 0~60A | 0~33A | 0-28A | 0~27A | 0~16.5A | 0~11A | 0~8.3A |
| Rated power | 300W | 396W | 348.3W | 405W | 396W | 396W | 398.4W |
| Ripple&noise | 100mvp-p | 150mvp-p | 150mvp-p | 150mvp-p | 150mvp-p | 180mvp-p | 200mvp-p |

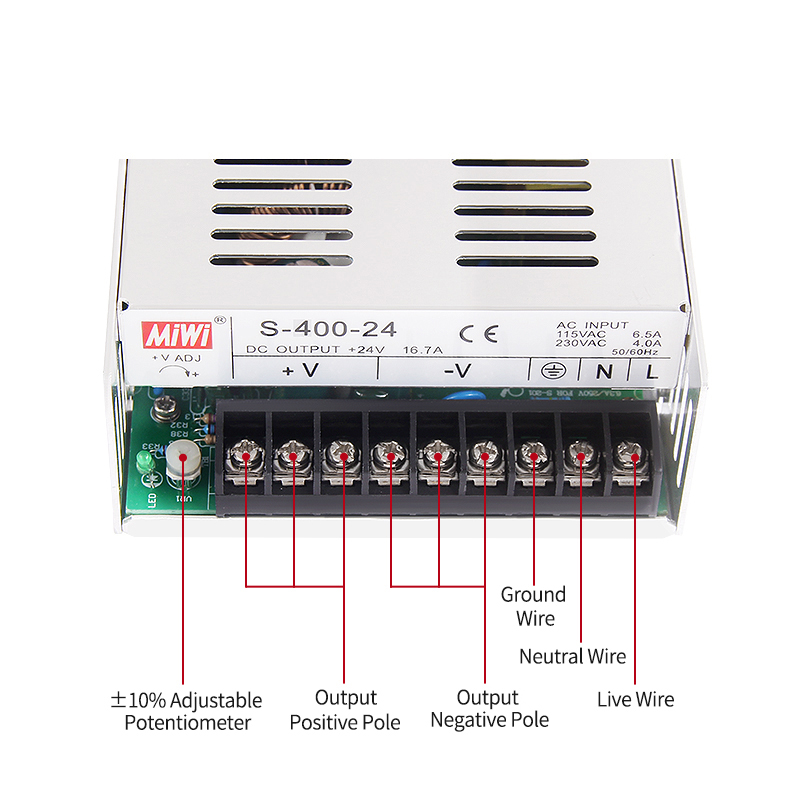

| DCvoltage ADJ.range | -9%~+10% | ±10% | -12%,+11% | ±10% | ±10% | ±10% | ±10% |
| Input | Voltage range | 90~132VAC/180~264VAC(selected by switch), 255~373VDC |
| Frequency | 47~63Hz |
| AC current | 7.5A/115VAC, 4.5A/230VAC |
| Efficiency | 78% | 80% | 79% | 80% | 82% | 82% | 83% |
| Inrush current | cold start current 30A/115VAC, 60A/230VAC |
| Leakage current | < 3.5mA/240VAC |
| Protection | Overload | above 105%~135% rated power |
| protection type: rated current limit, auto-recovery after fault condition is removed |
| Over voltage | 6.8~8.2V | 15.6~17.8V | 15.5~18.2V | 18.6~20.8V | 30.6~33.2V | 42.6~44.2V | 54.8~56.6V |
| protection type: hiccup mode, auto-recovery after fault condition is removed |
| Over temperature | ≥55°Cfan on, ≤50°Cfan off, ≥85°C shutdoff O/P |
| protection mode: cutoff output, auto-recovery after temperature goed down |
| Environment | Working temp,humidity | -10°C~+60°C, 20%~90%RH |
| Storagetemp,humidity | -20°C~+85°C, 10%~95%RH non-condensing |
| Withstand vibration | 10~500Hz, 2G 10min/1cycle, period for 60 minutes, each axes |
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC |
| Fitstandard | Safety standard | CE |
| EMC standard | meet EN55022, CLASS A |

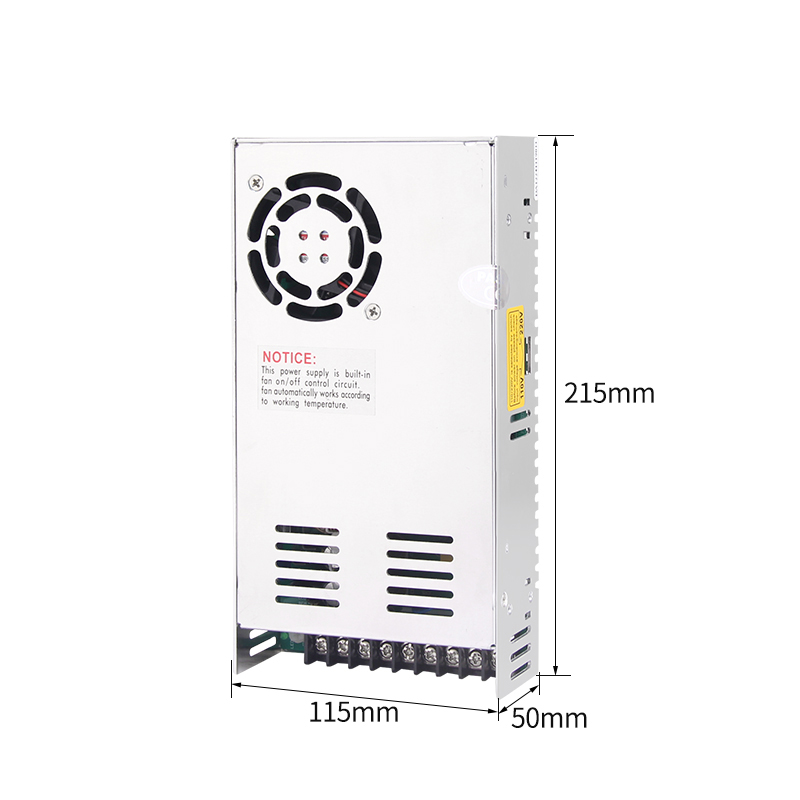

| Others | Dimension | 215*115*50mm (L*W*H) |
| Weight/packing | 1.0kg/24pcs/25kg/0.049 m³/1.72CUFT |
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. |
