S-600 600W Switching Power Supply | |||||
Item | Technical index | ||||
Output | DC Output Voltage | 12V | 24V | 36V | 48V |
Rated Current | 50A | 25A | 16.5A | 12.5A | |
Rated Power | 600W | 600W | 594W | 600W | |
Ripple & Noise | ﹤150mv | ﹤150mv | ﹤240mv | ﹤240mv | |
Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
Voltage Adj. Range | ±10% | ||||
Load Regulation | ±1% | ±1% | ±1% | ±1% | |
Line Regulation | ±1% | ±1% | ±1% | ±1% | |
Input | Voltage Range | 180VAC-264VAC 47Hz-63Hz/260VDC-380VDC | |||
Efficiency | ＞82% | ＞84% | ＞86% | ＞86% | |
AC Current | ﹤5A 230VAC | ||||
Setup, Rise Time | 200ms,50ms,20ms,230VAC | ||||
Protection | Overload | 120%-145% cut off output | |||
Over Voltage | ＞115%-140% cut off output | ||||
Short Circuit | Cut off output | ||||
Over Temperature | RTH2＞50℃ Fan Start＞90℃ cut off output | ||||
Environment | Working Temp, Humidity | -10℃~+50℃;20%~90RH | |||
Storage Temp, Humidity | -20℃~+85℃;10%~95RH | ||||
Safety | Working Frequency Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC 1min | |||
Insulation esistance | Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ | ||||

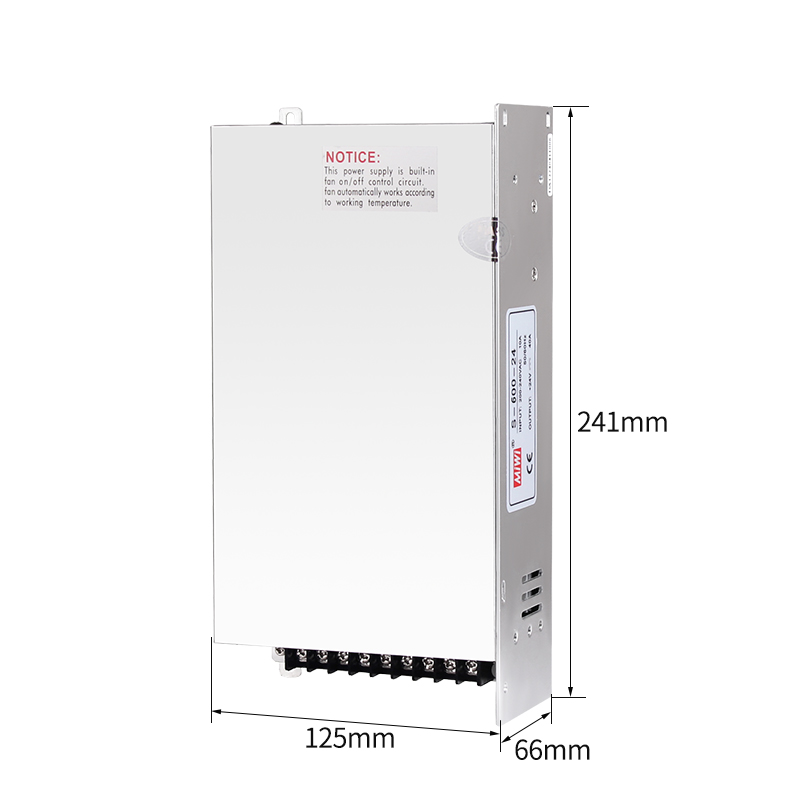

Others | Dimension | 241*125*66mm | |||
Net Weight/Gross Weight | 1268/1334g | ||||
