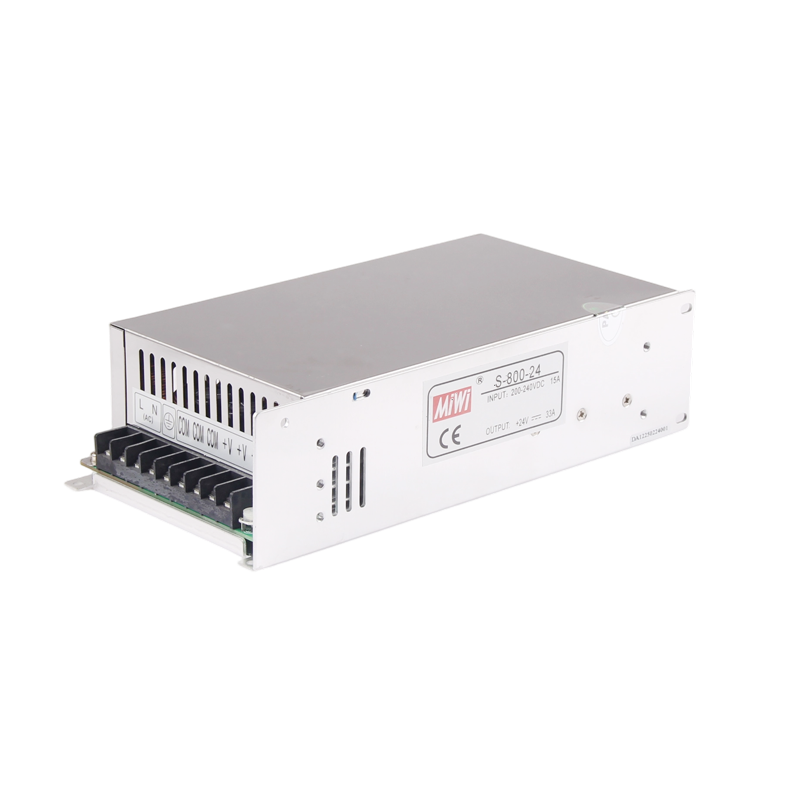

| S-800 800W Switching Power Supply | ||||
| Item | Technical index | |||
Output | DC Output Voltage | 24V | 36V | 48V |
| Rated Current | 33A | 22A | 16A | |
| Rated Power | 792W | 792W | 768W | |
| Ripple & Noise | ﹤150mv | ﹤240mv | ﹤240mv | |
| Voltage Tolerance | ±1% | ±1% | ±1% | |
| ±10% | ||||

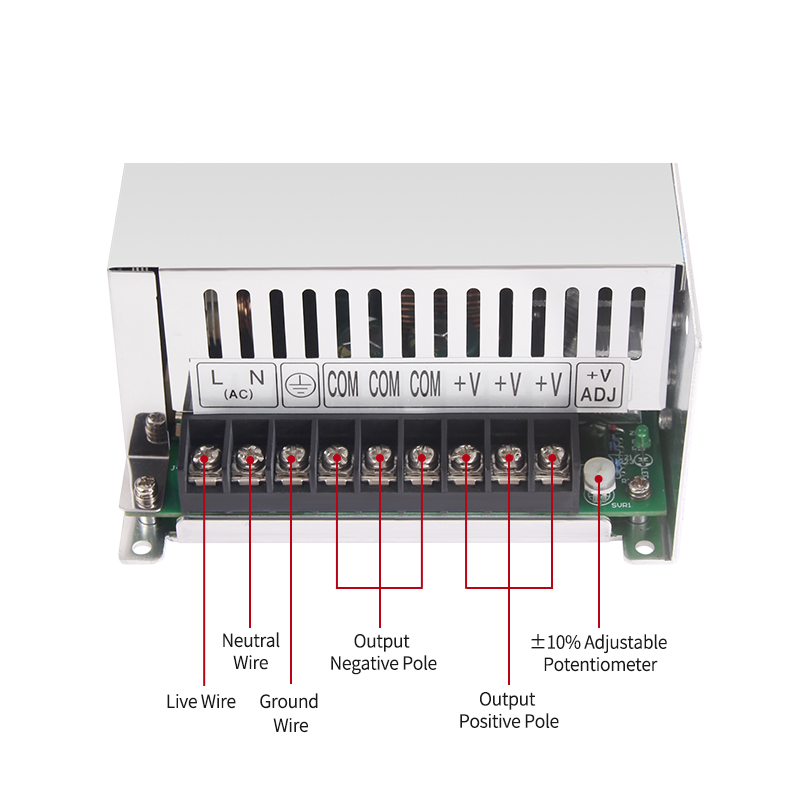

| Output Voltage Adj. Range | ||||
| Load Regulation | ±1% | ±1% | ±1% | |
| Line Regulation | ±1% | ±1% | ±1% | |
| Input | Voltage Range | 180VAC-264VAC 47Hz-63Hz/260VDC-380VDC | ||
| Efficiency | ＞82% | ＞84% | ＞86% | |
| AC Current | ﹤5A 230VAC | |||
| Setup, Rise Time | 200ms,50ms,20ms,230VAC | |||
| Protection | 120%-145% cut off output | |||
| Overload | ||||
| Over Voltage | ＞115%-140% cut off output | |||
| Short Circuit | Cut off output | |||
| Over Temperature | RTH2＞50℃ Fan Start ＞90℃ cut off output | |||
| Environment | Working Frequency Withstand Voltage | -10℃~+50℃;20%~90RH | ||
| Storage Temp, Humidity | -20℃~+85℃;10%~95RH | |||
| Safety | Working Frequency Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC 1min | ||
| Insulation Resistance | Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ | |||

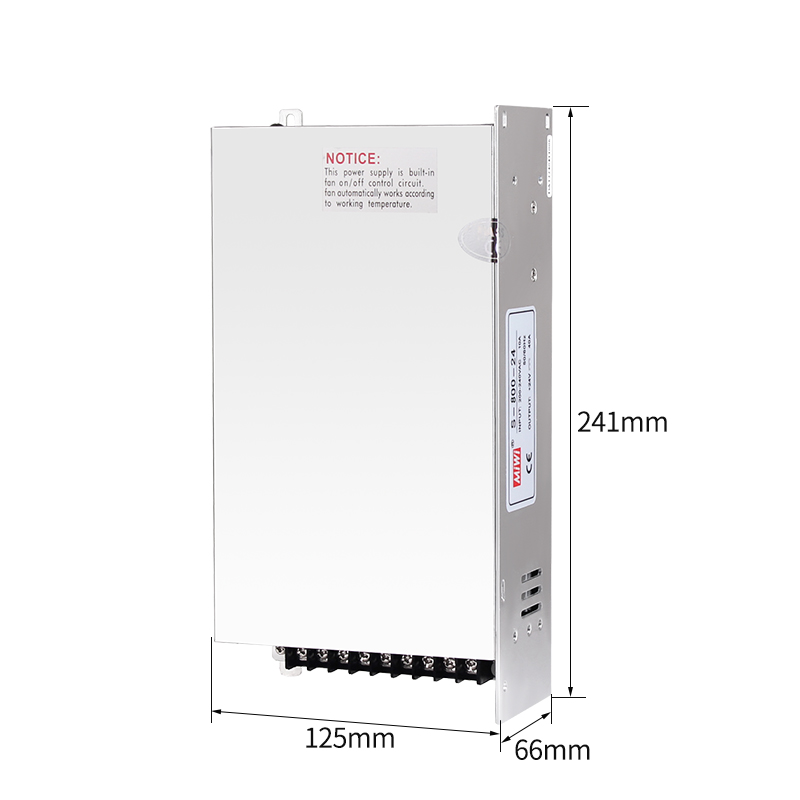

| Others | Dimension | 241*125*66 | ||
| Net Weight/Gross Weight | 1268/1334g | |||
