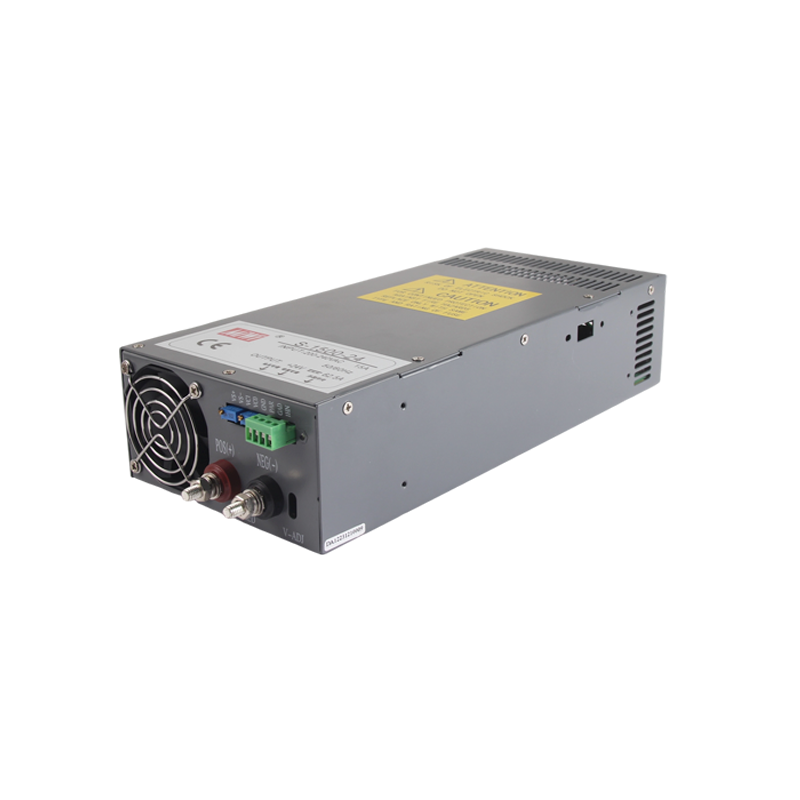

| S-1500 1500W Switching Power Supply |
| Item | Technical index |
| Output | DC Output Voltage | 12V | 24V | 36V | 48V |
| Rated Current | 0-125A | 0-62.5A | 0-41.6A | 0-31.2A |
| Rated Power | 1500W | 1500W | 1497.6W | 1497.6W |
| Ripple & Noise | 150mvp-p | 240mvp-p | 360mvp-p | 480mvp-p |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% |

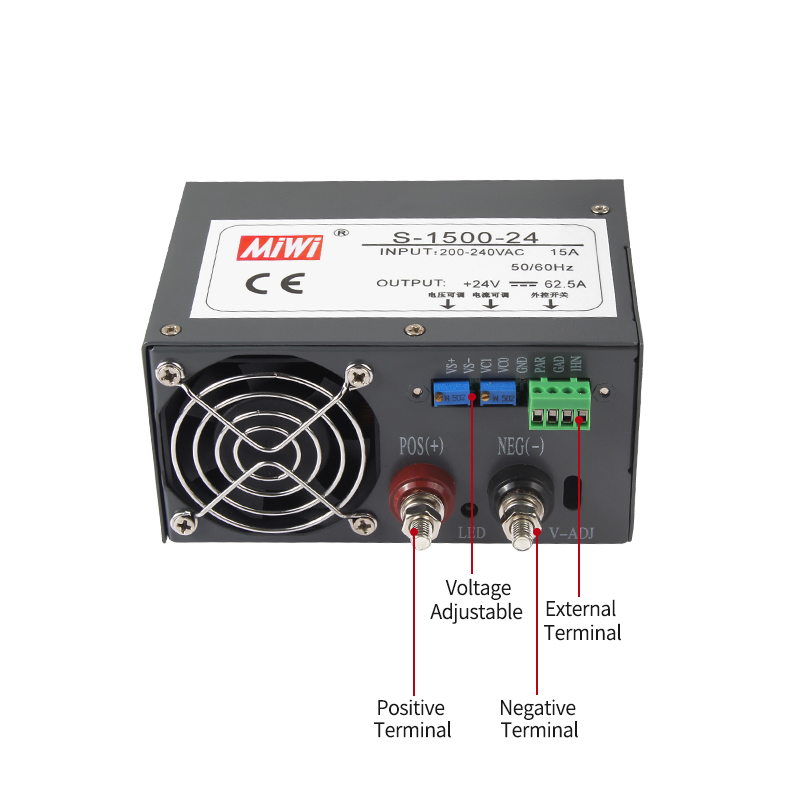

| Voltage Adj. Range | 0-13.8V | 0-26.4V | 0-39.6V | 0-52.8V |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Input | Voltage Range |
| 200VAC-240VAC 47Hz-63Hz |
| Efficiency | 83% | 85% | 85% | 87% |
| AC Current | 15A |
| Power factor | 0.65 |
| Setup, Rise Time | 200ms, 50ms,20ms,230VAC |
| Protection | Overload | Recovers automatically after constant current voltage goes down |
| Over Voltage | ＞115%-135% shut down o/p voltage, recovers automatically |
| Short Circuit | Shut down o/p voltage,recovers automatically |
| Over Temperature | Directly dissipating heat by fan, ＞85% cut off output |
| Environment | Working Temp, Humidity | -10°C~+50°C; 20%~95RH |
| Storage Temp, Humidity | -20°C~+85°C; 10%~95RH |
| Safety | Working Frequency Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC 1min |
| Insultation Resisance | Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ |

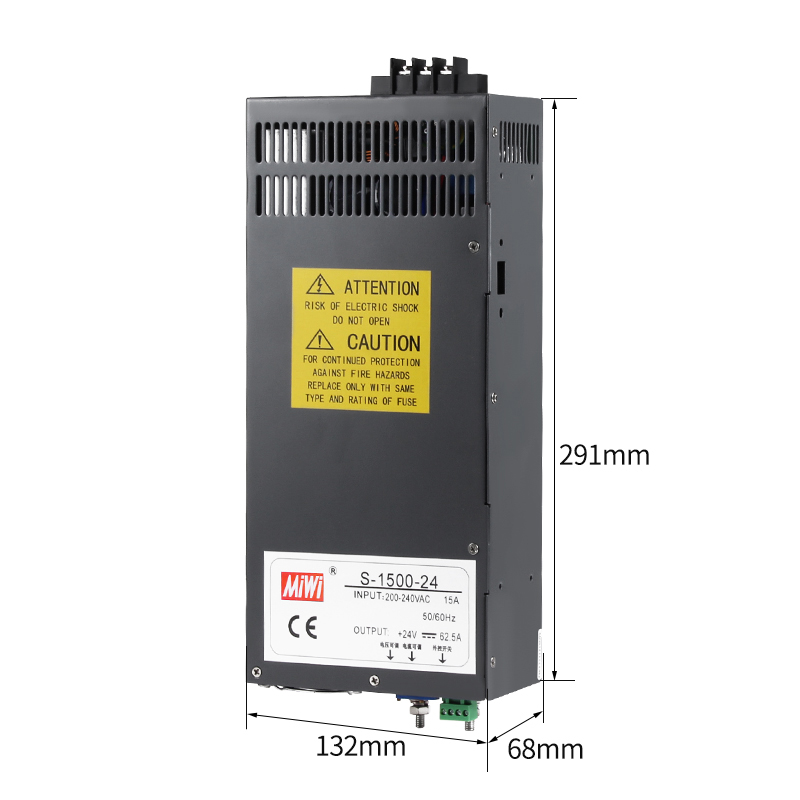

| Others | Dimension | 291×132×68mm |
| Net Weight/Gross Weight | 2500G/2600G |
