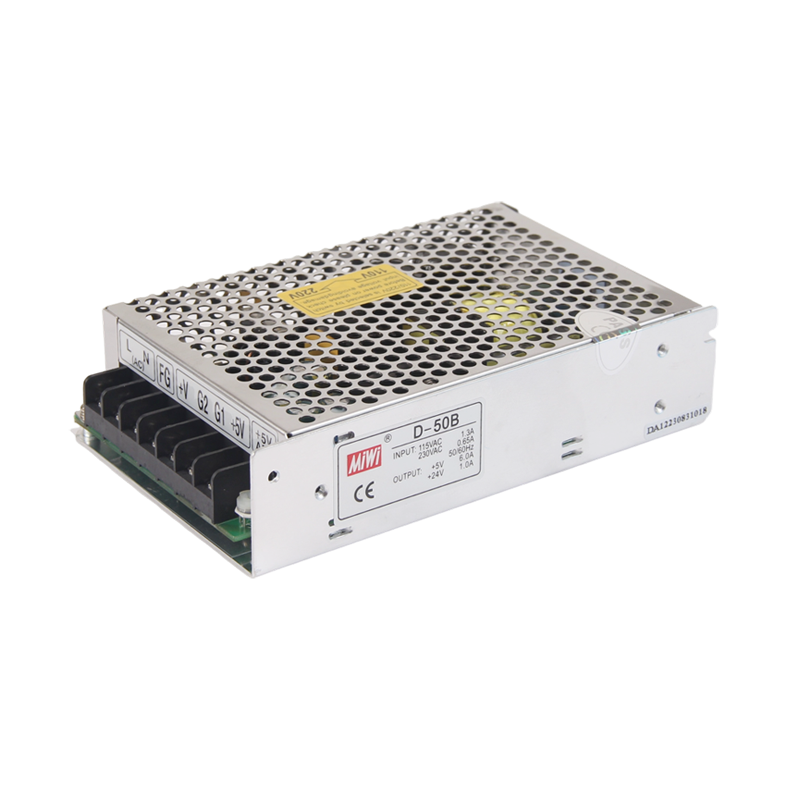

| Model | D-50A | D-50B |
| Specification | CH1 | CH2 | CH1 | CH2 |
| DC output voltage | 5V | 12V | 5V | 24V |
| Iutput Voltage Error | ±2% | ± 3, -7% | ±2% | ± 3, -5% |
| Rated output current | 6A | 2A | 6A | 1A |
| Output current rage | 1-6A | 0.3-2A | 1-6A | 0.2-1A |
| Tripple and Noise | 50mVp-p | 100mVp-p | 50mVp-p | 100mVp-p |
| Inlet stability(Note4) | ±0.5% | ±1% | ±0.5% | ±1% |
| Tolerance Voltage | ±0.5% | ±0.5% | ±0.5% | ±8% |
| DC output power | 54W | 54W |
| Efficiency | 73% | 73% |
| Adjustable range for DC voltage | ±10,-5% | ±10,-5% |
| AC input voltage range | 85~132VAC/170~264VAC;selected by switch 47~63Hz;240-370VDC |
| Input current | 1.3A/115V 0.65A/230V |
| AC Inrush Current | Cold-start current 18A/115V 36A/230V |
| Leakage current | <0.5mA/240VAC |
| Overload protection | 105%150% TypeFOLDBACK ,Cut off output; Reset: auto recovery |
| Over-voltage protection |
|
| High-temperature protection |
|
| Temperature coefficient | ± 0.03% /℃ (0~50℃) |
| Start, Rise, Hold time | 200ms,50ms,30ms |
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Withstand voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms |
| Working temperature and humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH |
| Store temperature and humidity | -20+85,10%95RH |

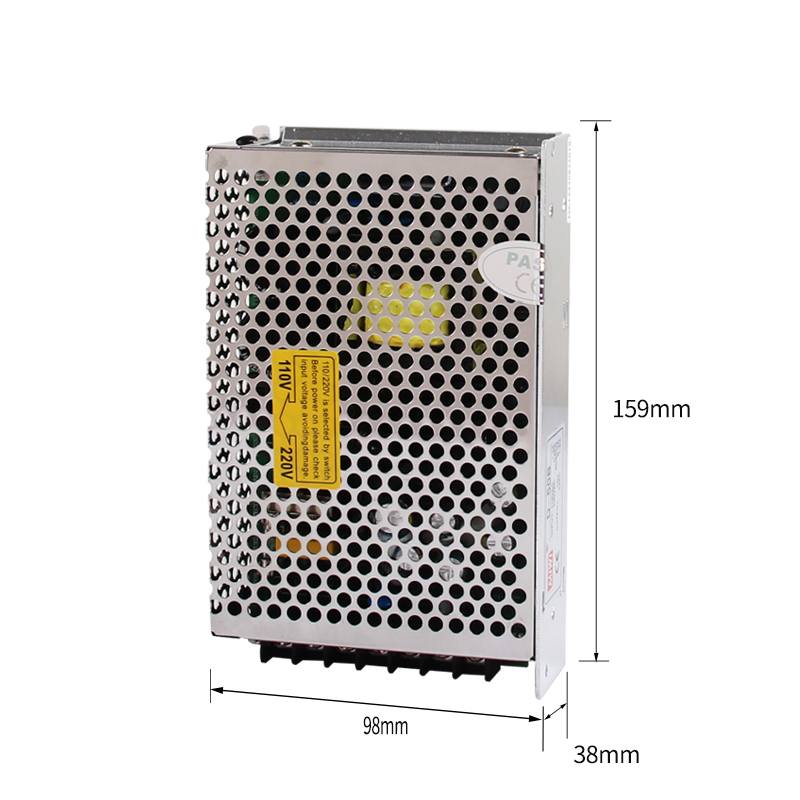

| Overall dimension | 159*98*38mm |
| Weight | 0.52Kgs |
| Safety standards | Meet UL1012 |
| EMC standards | Meet FCC Part 15J Conduction class B |
