| Model Specification | D-120 A | D-120 B | ||
| DC Output Voltage | 5V | 12V | 5V | 24V |
| Iutput Voltage Error | ± 2% | ± 6% | ± 2% | ± 7% |
| Rated Output Current | 12A | 5A | 6A | 4A |
| Output Current Range | 2-12A | 0.5-5A | 2-10A | 0.4-4A |
| Tripple and Noise | 60mVp-p | 120mVp-p | 60mVp-p | 150mVp-p |
| Iniet Stability | ± 0.5% | ± 1% | ± 0.5% | ± 1% |
| Tolerance Voltage | ± 0.5% | ± 5% | ± 0.5% | 6% |
| DC Output Power | 120W | 126W | ||
| Efficiency | 78% | 80% | ||
| Adjustable Range for DC Voltage | `+10, -5% | ± 10, -5% | ||
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||
| Input Current | 2.5A/115V 1.25A/230V | |||
| AC Inrush Current | Cold-Start Current: 35A/115V, 35A/230V | |||
| Leakage Current | <3.5mA/240VAC | |||
| Overload Protection | 105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery | |||
| Over Voltage Protection | ………… | |||
| High Temperature Protection | ………… | |||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | |||
| Start, Rise, Hold time | 200ms, 50ms, 30ms | |||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | |||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | |||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | |||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | |||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | |||

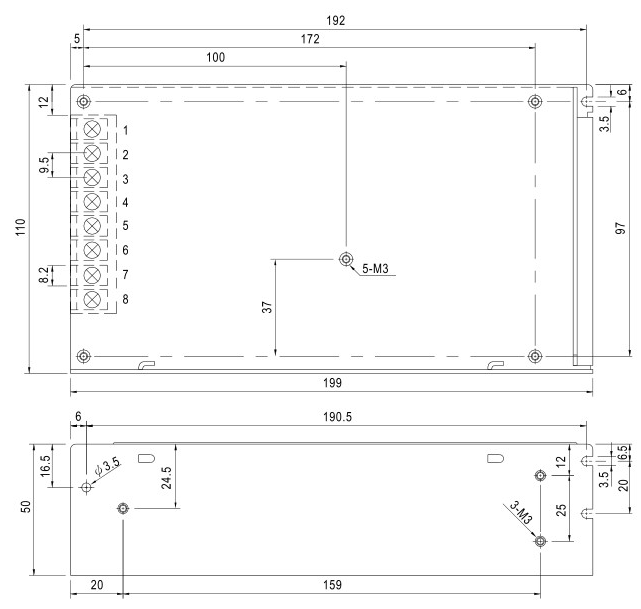

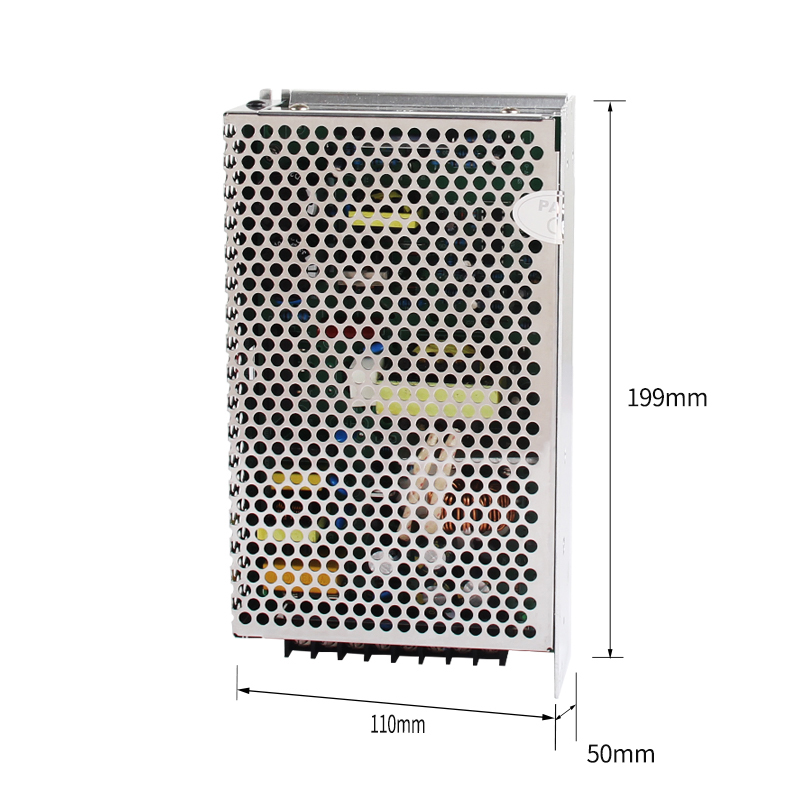

| Overall Dimension | 199*110*50 mm | |||
| Weight | 0.85 kgs | |||
| Safety Standards | CE | |||
| EMC Standards | Meet FCC Part 15J Conduction class B | |||
| 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. Total output canbe maximum Current, total load can not exceed the maximum output power. 7. C3,4,11 must be knocked down. | ||||
