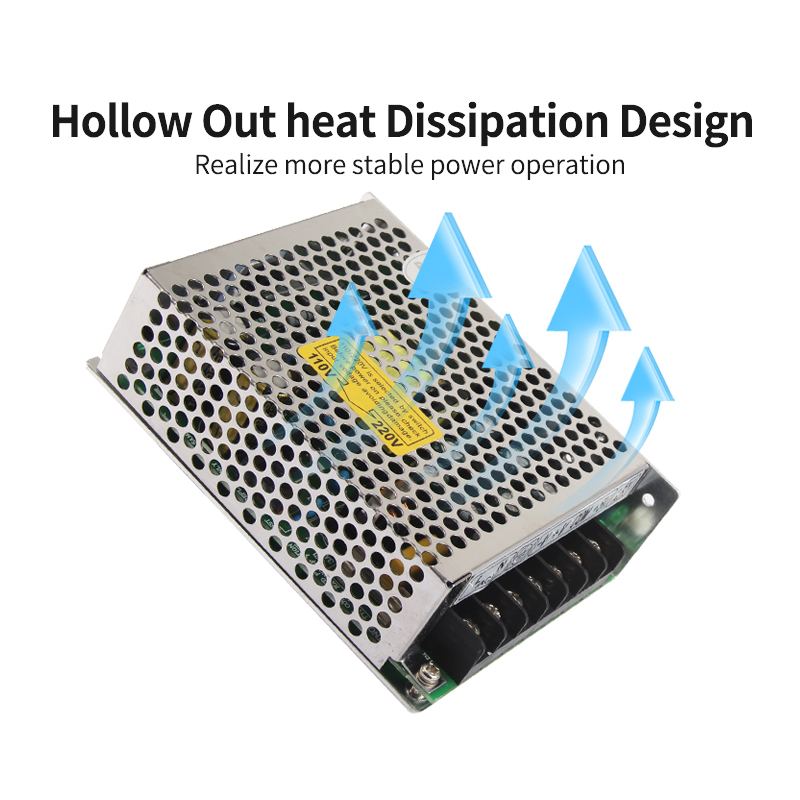

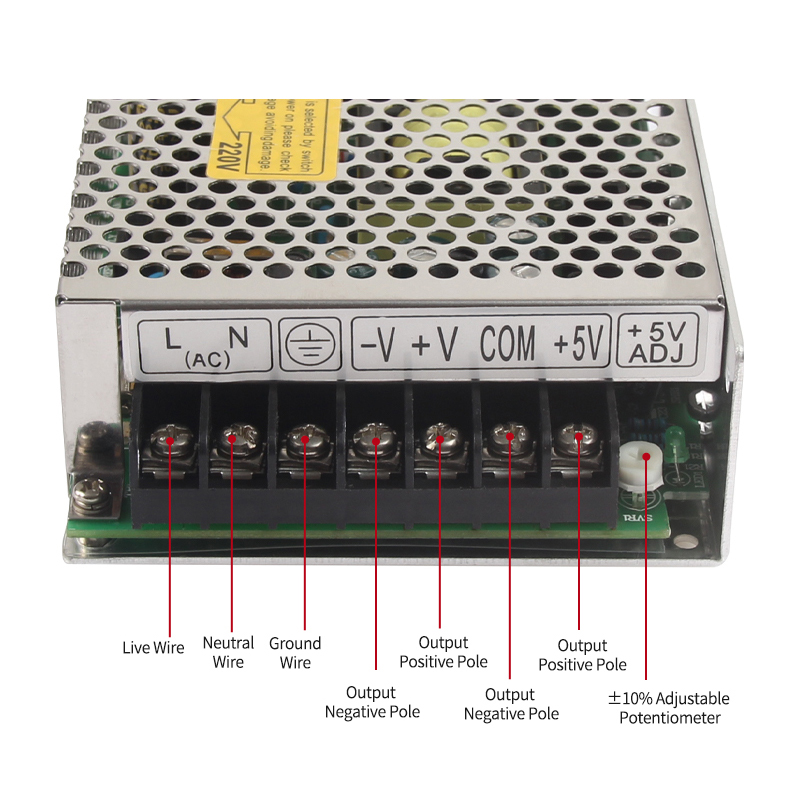

Model Specification | T-30 A | T-30 B | ||||
DC Output Voltage | 5V | 12V | `-5V | 5V | 12V | `-12V |
Iutput Voltage Error | ± 2% | ± 2, -6% | ± 2, -10% | ± 2% | ± 2, -6% | ± 6% |
Rated Output Current | 3A | 1A | 0.5A | 3A | 1A | 0.5A |
Output Current Range | 0.5-3A | 0.1-1A | 0.1-0.5A | 0.5-3A | 0.1-1A | 0.4-4A |
Tripple and Noise | 50mVp-p | 100mVp-p | 50mVp-p | 50mVp-p | 100mVp-p | 100mVp-p |
Iniet Stability | ± 0.5% | ± 1% | ± 1% | ± 0.5% | ± 1% | ± 1% |
Tolerance Voltage | ± 0.5% | ± 5% | ± 5% | ± 0.5% | ± 5% | ± 5% |
DC Output Power | 30W | 33W | ||||
Efficiency | 70% | 72% | ||||
Adjustable Range for DC Voltage | `+10, -5% | ± 10, -5% | ||||
AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||||
Input Current | 0.8A/115V 0.45A/230V | |||||
AC Inrush Current | Cold-Start Current: 18A/115V, 36A/230V | |||||
Leakage Current | <0.5mA/240VAC | |||||
Overload Protection | 105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery | |||||
Over Voltage Protection | ………… | |||||
High Temperature Protection | ………… | |||||
Temperature Coefficient | ± 0.03% /℃ (0~50℃) | |||||
Start, Rise, Hold time | 200ms, 100ms, 30ms | |||||
Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | |||||
Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | |||||
Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | |||||
Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | |||||
Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | |||||

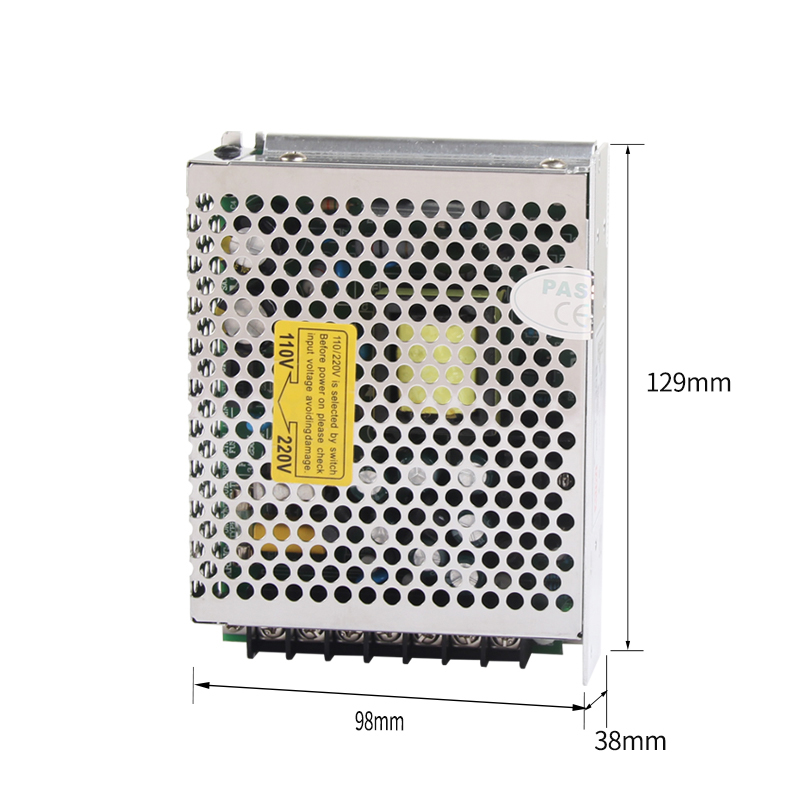

Overall Dimension | 129*98*38 mm | |||||
Weight | 0.4 kgs | |||||
Safety Standards | CE | |||||
EMC Standards | Meet FCC Part 15J Conduction class B | |||||
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. | ||||||
