Model Specification | T-50 A | T-50 B | T-50 C | T-50 D |
DC Output Voltage | 5V | 12V | `-5V | `55V | 12V | `-12V | 5V | 15V | `-15V | 5V | 12V | 24V |
Iutput Voltage Error | ± 2% | ± 5% | ± 5% | ± 2% | ± 5% | ± 5% | ± 2% | ± 5% | ± 5% | ± 2% | ± 6% | ± 6% |
Rated Output Current | 7A | 1A | 1A | 5A | 1A | 1A | 4A | 1A | 1A | 3A | 1A | 1A |
Output Current Range | 0.6-7A | 0.2-1A | 0.2-1A | 0.6-5A | 0.2-1A | 0.2-1A | 0.6-4A | 0.2-1A | 0.2-1A | 0.6-4A | 0.2-1.2A | 0.2-1.2A |
Tripple and Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 50mVp-p | 120mVp-p | 120mVp-p |
Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 1% | ± 1% |
Tolerance Voltage | ± 2% | ± 5% | ± 5% | ± 2% | ± 5% | ± 5% | ± 2% | ± 5% | ± 5% | ± 2% | ± 6% | ± 6% |
DC Output Power | 52W | 49W | 50W | 51W |
Efficiency | 66% | 69% | 71% | 72% |
Adjustable Range for DC Voltage | `+10, -5% | ± 10, -5% | ± 10, -5% | ± 10, -5% |
AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
Input Current | 1.6A/115V 0.8A/230V |
AC Inrush Current | Cold-Start Current: 20A/115V, 40A/230V |
Leakage Current | <0.5mA/240VAC |
Overload Protection | 105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery |
Over Voltage Protection | ………… |
High Temperature Protection | ………… |
Temperature Coefficient | ± 0.03% /℃ (0~50℃) |
Start, Rise, Hold time | 200ms, 100ms, 16ms |
Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH |
Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH |

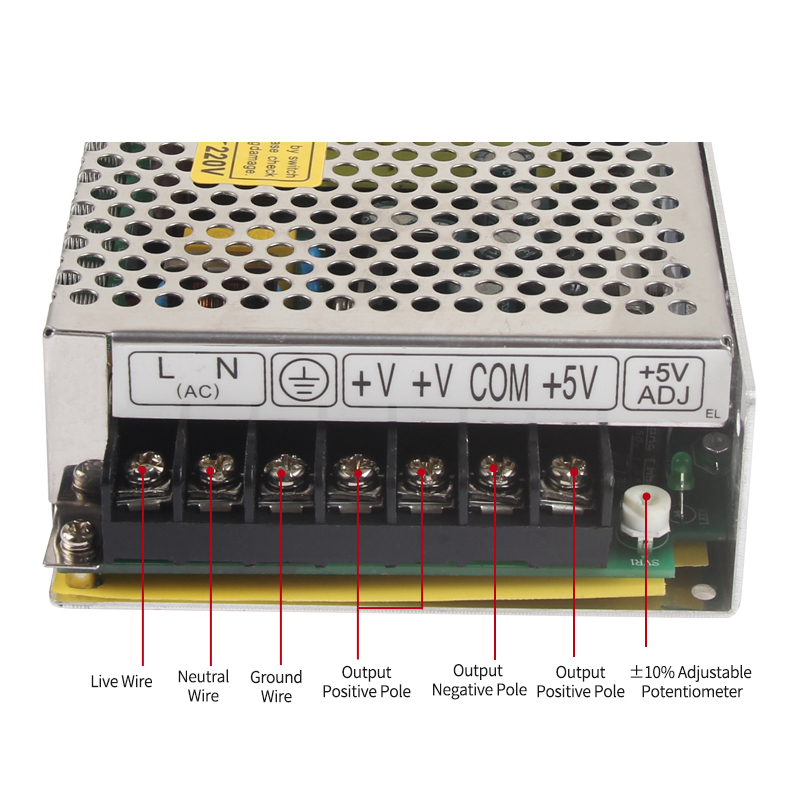

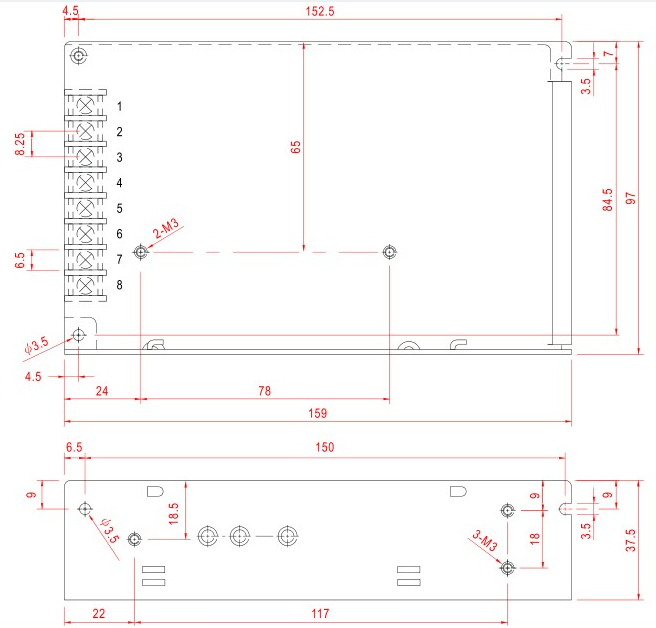

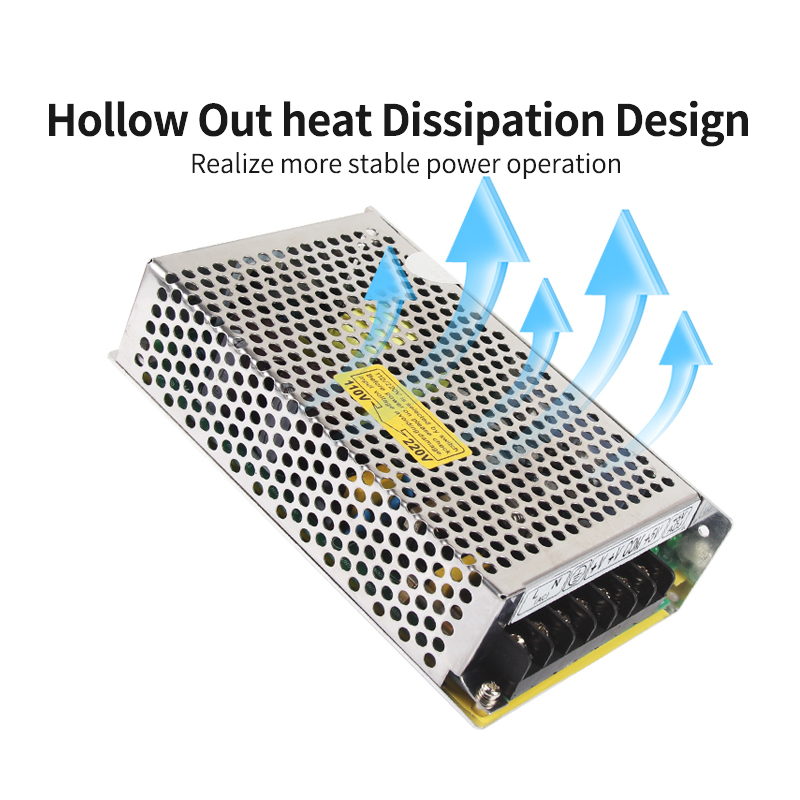

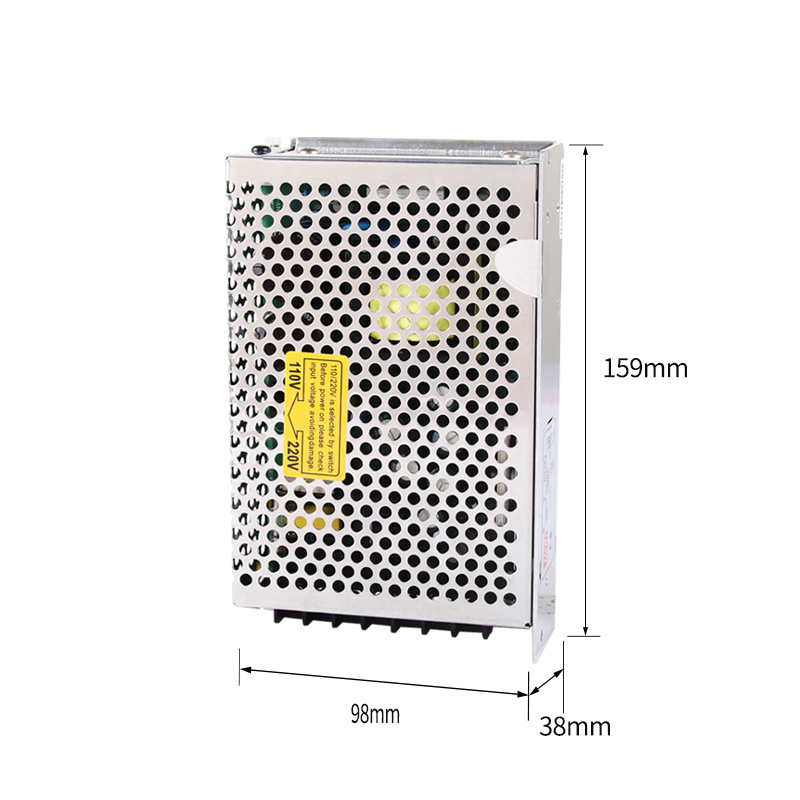

Overall Dimension | 159*98*38 mm |
Weight | 0.54 kgs |
Safety Standards | CE |
EMC Standards | Meet FCC Part 15J Conduction class B |
1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. |
2. Error, include the setting error, line stability and load stability. |
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. |
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. |
5. Load stability test: the load is from 0% to 100%, others 60%. |
6. Total output canbe maximum Current, total load can not exceed the maximum output power. |
