| Model Specification | T-100 C | T-100 D | ||||
| DC Output Voltage | 5V | 15V | `-15V | `5V | 12V | `24V |
| Rated Output Current | 10A | 2.5A | 1A | 8A | 2 | 2A |
| Output Current Range | 2-12A | 0.5-2.5A | 0-1A | 2-10A | 1-2A | 0.2-2A |
| Tripple and Noise | 80mVp-p | 150mVp-p | 150mVp-p | 80mVp-p | 150mVp-p | 150mVp-p |
| Iniet Stability | ± 0.5% | ± 1% | ± 1% | ± 0.5% | ± 1% | ± 1% |
| Tolerance Voltage | ± 1% | ± 10,`5% | ± 10,`5% | ± 2% | ± 6% | ± 6% |
| DC Output Power | 117.5W | 118W | ||||
| Efficiency | 77% | 79% | ||||
| Adjustable Range for DC Voltage | `+10, -5% | ± 10, -5% | ||||
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||||
| Input Current | 2.5A/115V 1.25A/230V | |||||
| AC Inrush Current | Cold-Start Current: 30A/115V, 60A/230V | |||||
| Leakage Current | <1mA/240VAC | |||||
| Overload Protection | 105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery | |||||
| Over Voltage Protection | ………… | |||||
| High Temperature Protection | ………… | |||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | |||||
| Start, Rise, Hold time | 800ms,50ms,16ms/ 115VAC; 300ms,50ms,80ms /230VAC | |||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | |||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/70%RH | |||||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | |||||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | |||||

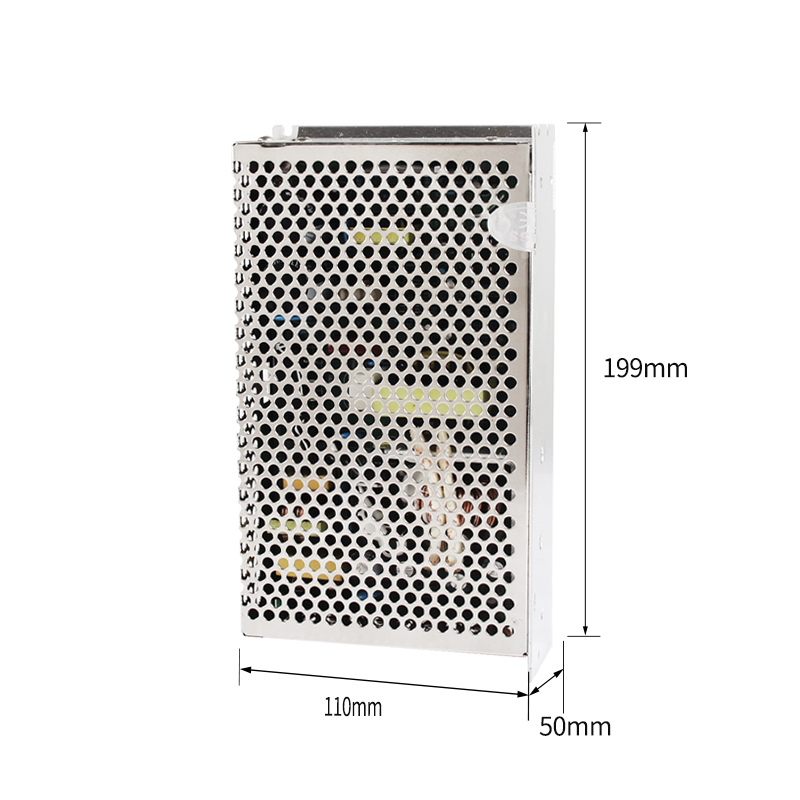

| Overall Dimension | 199*110*50 mm | |||||
| Weight | 0.83 kgs | |||||

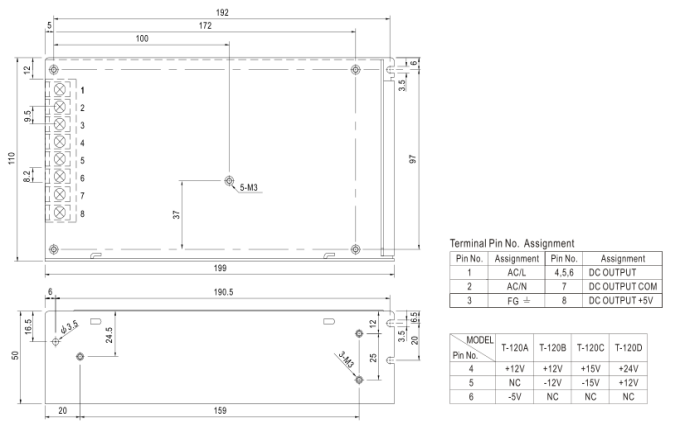

| 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. Total output canbe maximum Current, total load can not exceed the maximum output power. Mechanical Specification | ||||||
