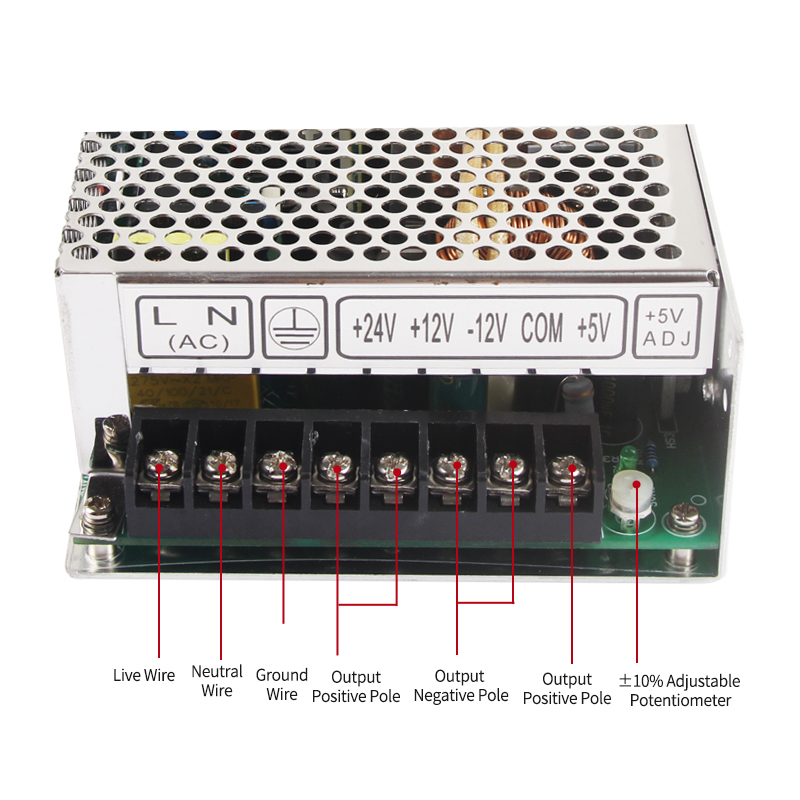

| Model Specification | Q-120 B | Q-120 C | Q-120 D | |||||||||
| DC Output Voltage | 5V | 12V | `-5V | `-12V | 5V | 15V | `-5V | `-15V | 5V | 12V | 24V | `-12V |
| Iutput Voltage Error | ± 2% | ± 6% | ± 6% | ± 6% | ± 2% | ± 10,-5% | ± 6% | ± 10,-5% | ± 2% | ± 6% | ± 6% | ± 6% |
| Rated Output Current | 11A | 4A | 1A | 1A | 12A | 3.5A | 1A | 3.5A | 12A | 4A | 2A | 1A |
| Output Current Range | 2-11A | 0.5-4A | 0.2-1A | 0.2-1A | 0.2-12A | 0.5-3.5A | 0.2-1A | 0.5-3.5A | 2-12A | 0.2-4A | 0.2-2A | 0.2-1A |
| Tripple and Noise | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p |
| Iniet Stability | ± 0.5% | ± 1% | ± 1% | ± 1% | ± 0.5% | ± 1% | ± 1% | ± 1% | ± 0.5% | ± 1% | ± 1% | ± 1% |
| Tolerance Voltage | ± 0.5% | ± 5% | ± 5% | ± 5% | ± 0.5% | ± 6% | ± 5% | ± 8% | ± 0.5% | ± 5% | ± 5% | ± 5% |
| DC Output Power | 120W | 122.5W | 124W | |||||||||
| Efficiency | 77% | 76% | 80% | |||||||||
| Adjustable Range for DC Voltage | `+10, -5% | ± 10, -5% | ± 10, -5% | |||||||||
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||||||||||
| Input Current | 2.5A/115V 1.25A/230V | |||||||||||
| AC Inrush Current | Cold-Start Current: 35A | |||||||||||
| Leakage Current | <3.5mA/240VAC | |||||||||||
| Overload Protection | 105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery | |||||||||||
| Over Voltage Protection | ………… | |||||||||||
| High Temperature Protection | ………… | |||||||||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | |||||||||||
| Start, Rise, Hold time | 200ms, 50ms, 20ms | |||||||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | |||||||||||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | |||||||||||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | |||||||||||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | |||||||||||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | |||||||||||

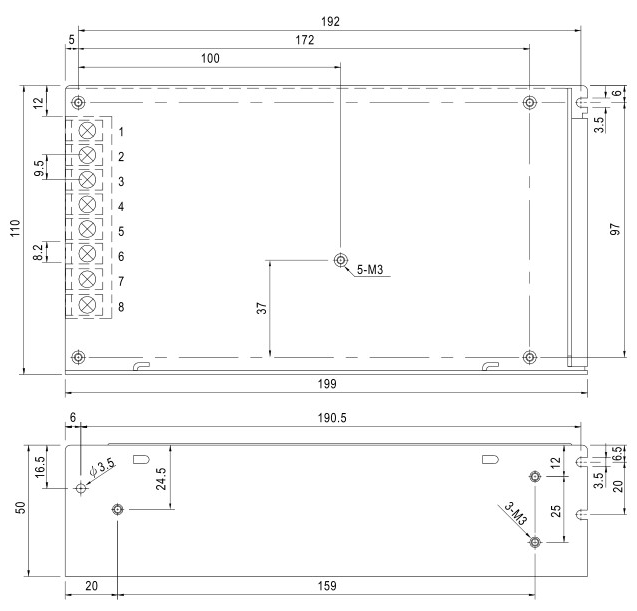

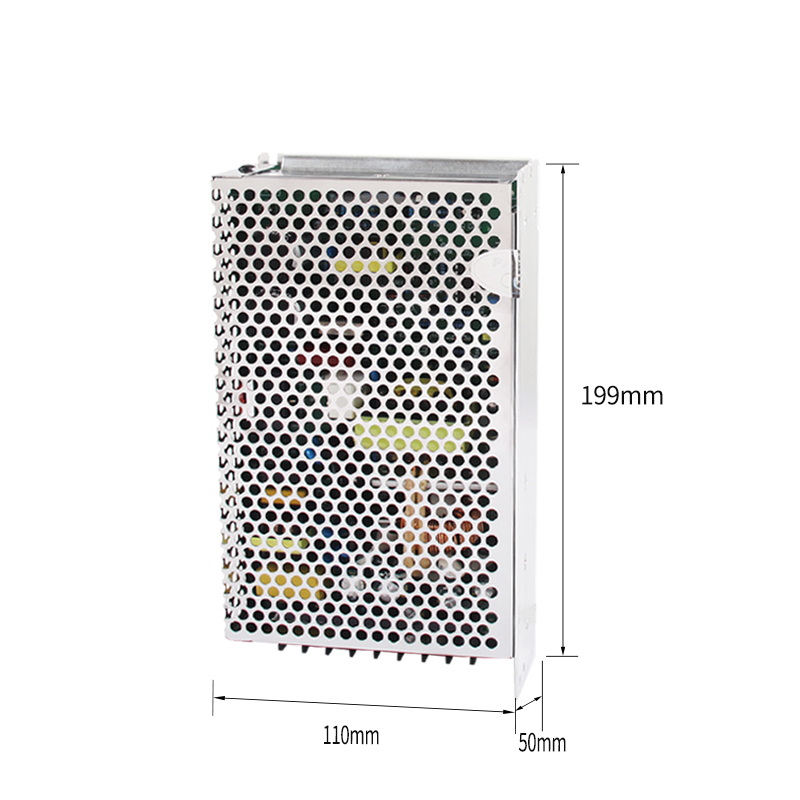

| Overall Dimension | 199*110*50 mm | |||||||||||
| Weight | 0.88 kgs | |||||||||||
| Safety Standards | CE | |||||||||||
| EMC Standards | Meet FCC Part 15J Conduction class B | |||||||||||
| 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. Total output canbe maximum Current, total load can not exceed the maximum output power. 7. C2,3,6 must be knocked down. | ||||||||||||
