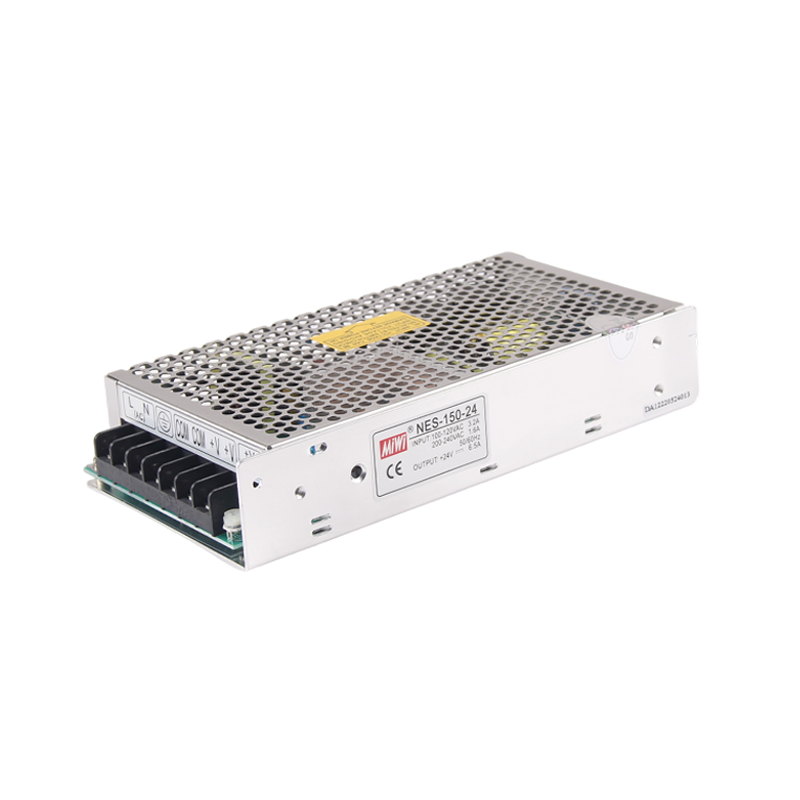

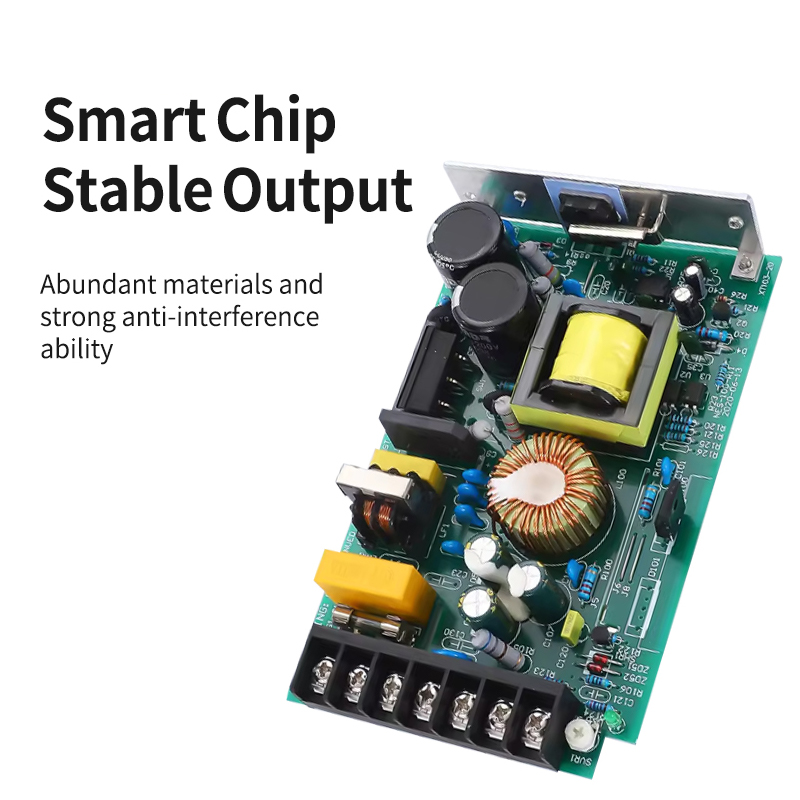

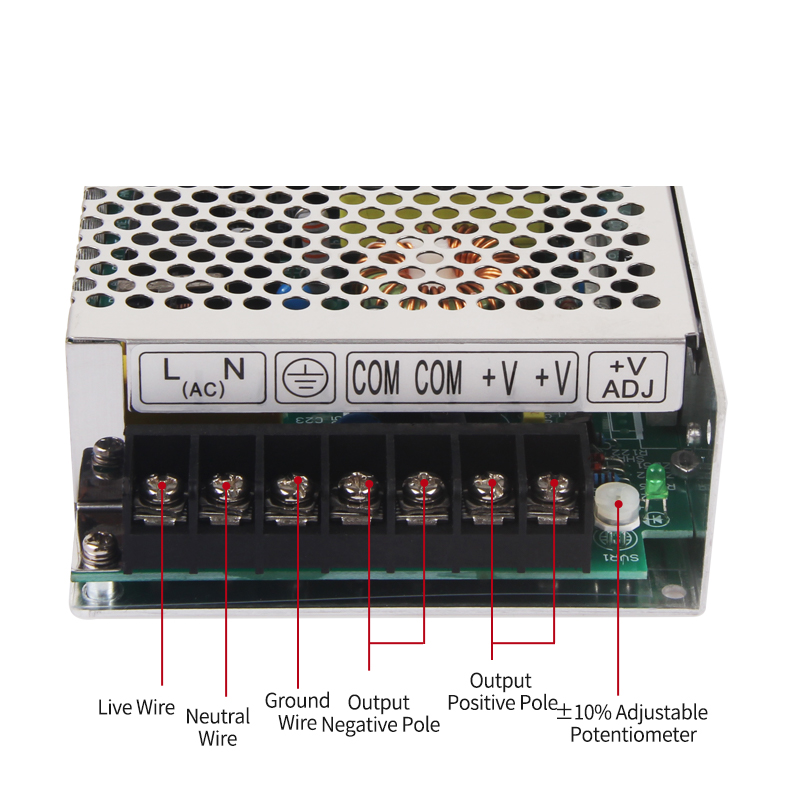

| MODEL | NES-150-3.3 | NES-150-5 | NES-150-7.5 | NES-150-9 | NES-150-12 | NES-150-15 | NES-150-24 | NES-150-48 | |
| OUTPUT | DC VOLTAGE | 3.3 V | 5V | 7.5V | 9V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 30A | 26A | 20A | 16.7A | 12.5A | 10A | 6.5A | 3.3A | |
| CURRENT RANGE | 0 ~ 30A | 0 ~ 26A | 0 ~ 20A | 0 ~ 16.7A | 0 ~ 12.5A | 0 ~ 10A | 0 ~ 6.5A | 0 ~ 3.3A | |
| RATED POWER | 99W | 130W | 150W | 150W | 150W | 150W | 156W | 158.4W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 3.2 ~ 3.5V | 4.75 ~ 5.5V | 7.13 ~ 8.3V | 8.55 ~ 9.9V | 11.4 ~ 13.5V | 14.25 ~ 16.5V | 22..8 ~ 27.6V | 45.6 ~ 52.8V | |
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION Note.5 | ±2% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 800ms, 20ms/230VAC 1200ms, 20ms/115VAC at full load | ||||||||
| HOLD UP TIME (Typ.) | 24ms/230VAC 20ms/115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE Note 7 | 90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 373VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 73% | 78% | 80% | 83% | 83% | 83% | 86% | 86% | |
| AC CURRENT (Typ.) | 3A/115VAC 2A/230VAC | ||||||||
| INRUSH CURRENT (Typ.) | COLD START 45A/VAC | ||||||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 3.8-4.65V | 5.75 ~ 6.75V | 8.6 ~ 10.1V | 10.4 ~ 12.2V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 55.2 ~ 64.8V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃(Refer to Derating Curve") " | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing C34 | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ± 0.03%℃/ (0 ~ 50 ℃ ) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC Note 8 | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B, GB9254 CLASS B | ||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3，GB17625.1 | ||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A | ||||||||
| OTHERS | MTBF | 433.3 Khrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 159*97*38mm (L*W*H) | ||||||||
| NOTE | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMS test, please refer to "EMI testing of component power suppliers." 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. | ||||||||
