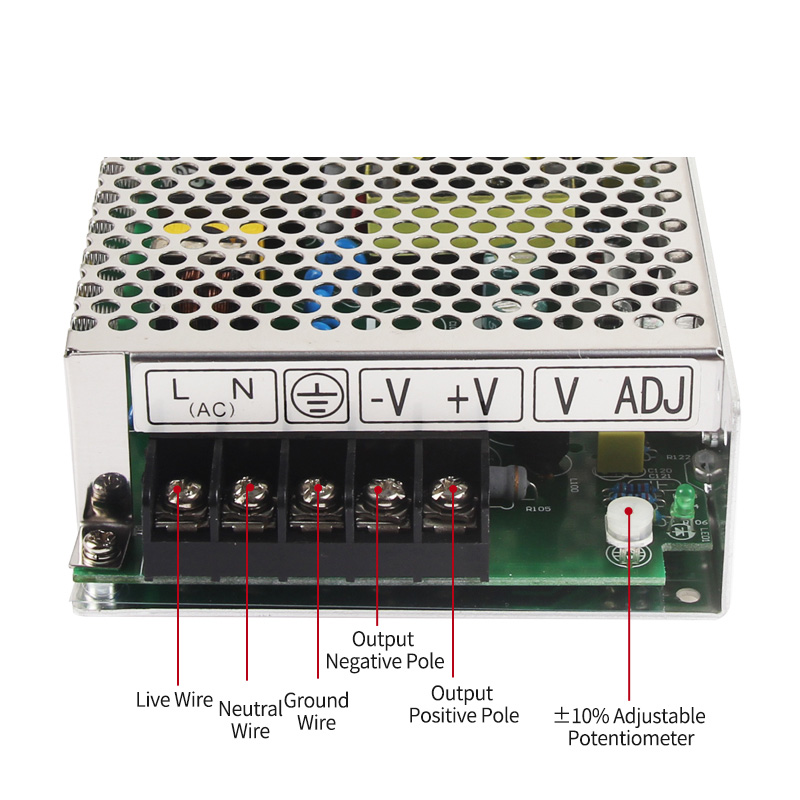

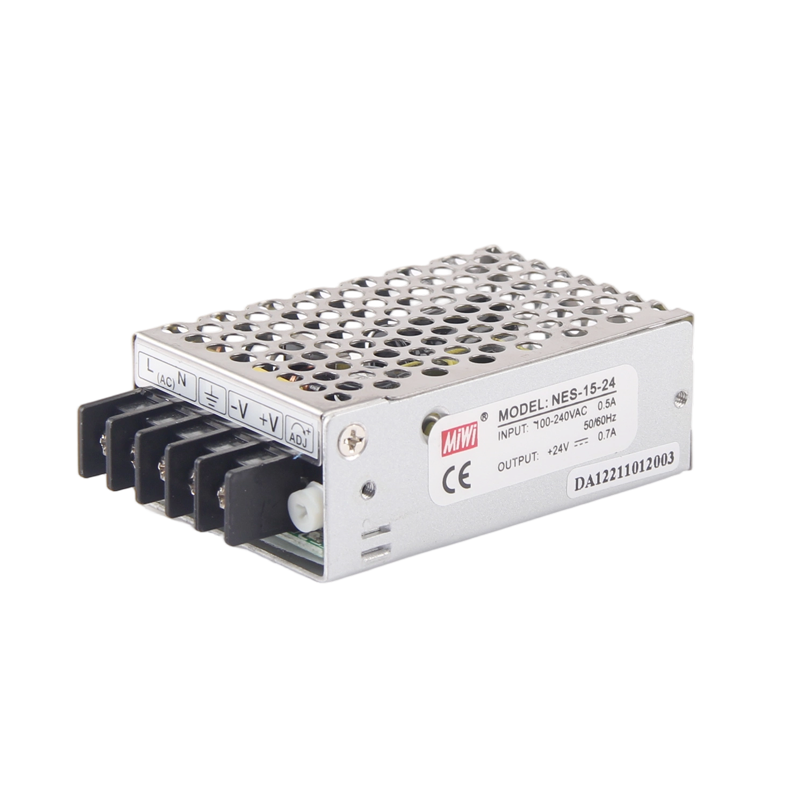

| MODEL | NES-15-5 | NES-15-12 | NES-15-15 | NES-15-24 | NES-15-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 3A | 1.3A | 1A | 0.7A | 0.35A | |
| CURRENT RANGE | 0 ~ 3A | 0 ~ 1.3A | 0 ~ 1A | 0 ~ 0.7A | 0 ~ 0.35A | |
| RATED POWER | 15W | 15.6W | 15W | 16.8W | 16.8W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V | 43.2 ~ 52.8V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION Note.4 | ±1.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION Note.5 | ±1.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 100ms/230VAC 20ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE Note 7 | 85 ~ 264VAC 120 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 79% | 81% | 81% | 85% | 82% | |
| AC CURRENT (Typ.) | 0.35A/115VAC 0.25A/230VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 45A | |||||
| LEAKAGE CURRENT | <2mA / 240VAC | |||||
| PROTECTION | OVERLOAD | Aboved 105% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 55.2 ~ 64.8V | |
| Protection type : Shut off | ||||||
| OVER TEMPERATURE | U1 Tj 140°C typically (U1) detect on main control IC | |||||
| Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃(Refer to Derating Curve") " | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ± 0.03%℃/ (0 ~ 45 ℃ ) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC Note 8 | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A | |||||
| OTHERS | MTBF | 563.5Khrs min. MIL-HDBK-217F (25℃) | ||||

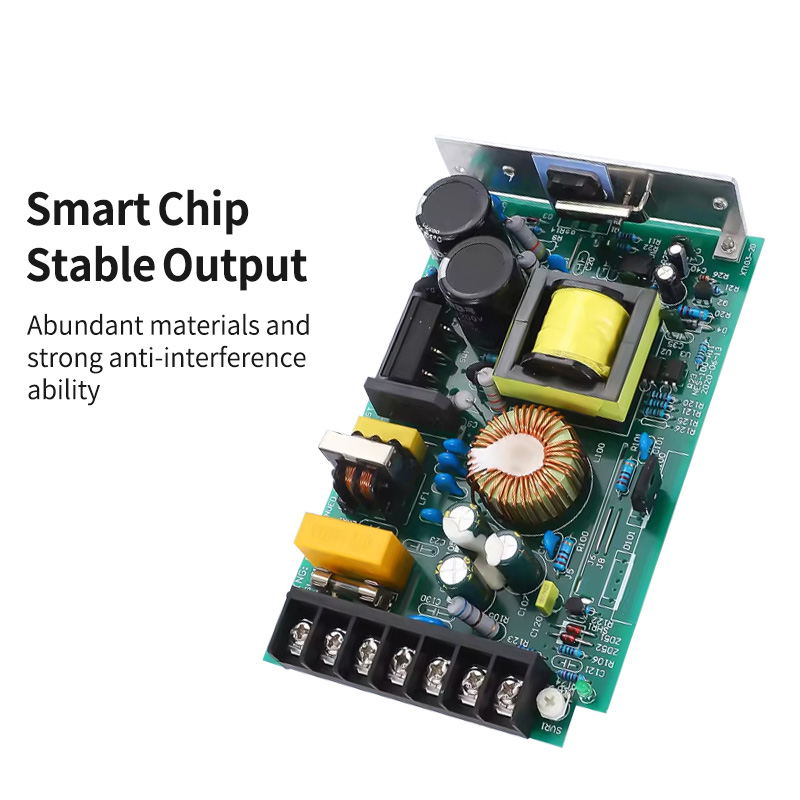

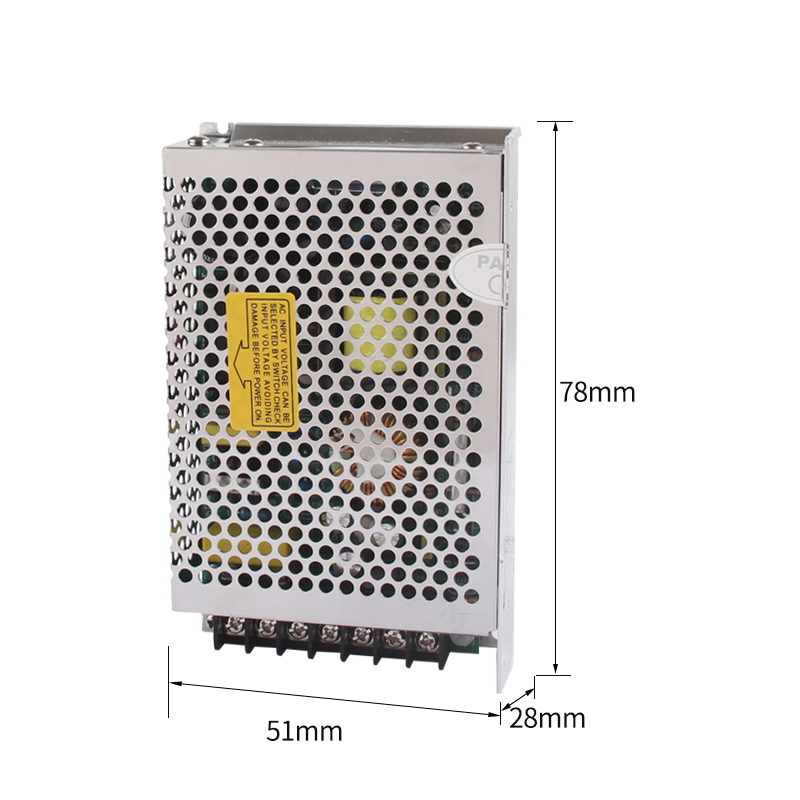

| DIMENSION | 78*51*28mm (L*W*H) | |||||
| NOTE | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be rre-confirmed that it still meets EMC directives. For guidance on how to perform these EMS test, please refer to "EMI testing of component power suppliers." | |||||
