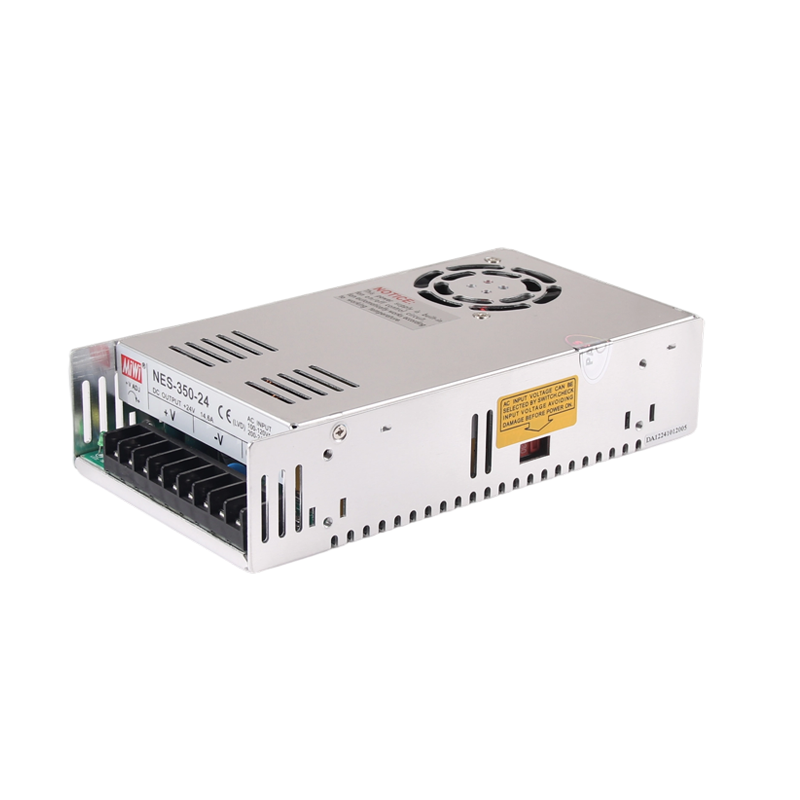

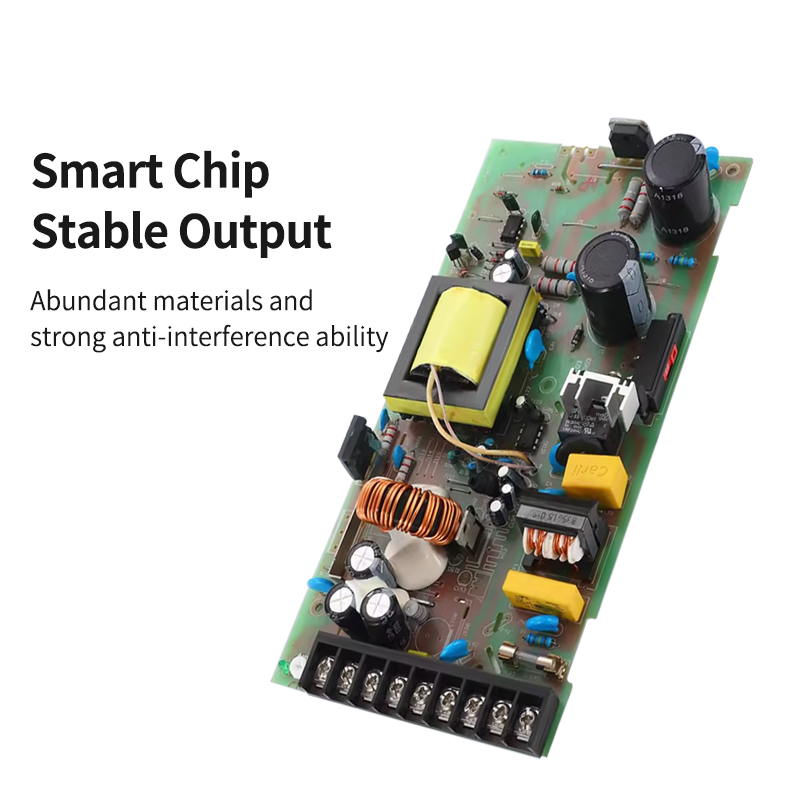

| MODEL | NES-350-3.3 | NES-350-5 | NES-350-7.5 | NES-350-12 | NES-350-15 | NES-350-24 | NES-350-27 | NES-350-36 | NES-350-48 | |
| OUTPUT | DC VOLTAGE | 3.3 V | 5V | 7.5V | 12V | 15V | 24V | 27V | 36V | 48V |
| RATED CURRENT | 60A | 60A | 46A | 30A | 23.2A | 14.6A | 13A | 9.7A | 7.3A | |
| CURRENT RANGE | 0~60A | 0~60A | 0~46A | 0~30A | 0~23.2A | 0~14.6A | 0 ~ 13A | 0~9.7A | 0~7.3A | |
| RATED POWER | 198W | 300W | 345W | 360W | 348W | 360W | 351W | 349W | 350.4W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 2.97 ~ 3.7V | 4.5 ~5.6V | 6 ~ 9V | 10~ 13.5V | 13.5~18V | 20~26.4V | 26 ~ 32V | 32~40V | 41~56V | |
| VOLTAGE TOLERANCE Note.3 | +3% ,-4.5% | ±3.0% | ±2.0% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.5% | ±2.0% | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 20ms/230VAC 16ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE Note 7 | 90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 74% | 78% | 80% | 83% | 84% | 87% | 88% | 87.5% | 87.5% | |
| AC CURRENT (Typ.) | 7A/115VAC 4A/230VAC | |||||||||
| INRUSH CURRENT (Typ.) | 40A/115VAC 60A/230VAC | |||||||||
| LEAKAGE CURRENT | <3.5mA / 240VAC | |||||||||
| PROTECTION | OVERLOAD | 105~ 135% rated output power | ||||||||
| Protection type :Constant current limiting, recovers automatically after after fault condition is recover | ||||||||||
| OVER VOLTAGE | 3.8-4.6V | 5.75 ~ 7.5V | 9.4 ~ 11.25V | 13.8~ 16.2V | 18 ~ 21V | 27.6~ 32.4V | 33.7 ~ 39.2V | 41.4~ 46.8V | 57.6~ 67.2V | |
| Protection type : Shut down O/P voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | 90°C±5°C (3.3-7.5V) , 85°C±5°C 12-15V) ,80°C±5°C (24V), 75°C±5°C (27-48V), (TSW1) Detect on case | |||||||||
| Protection type : Shut down O/P voltage, recovers automatically after temperature is gose down | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -20 + 60℃(Refer to load derating curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing C34 | |||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ± 0.03%℃/ (0 ~ 50 ℃ ) | |||||||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC Note 8 | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| OTHERS | MTBF | 234.3 Khrs min. MIL-HDBK-217F (25℃) | ||||||||

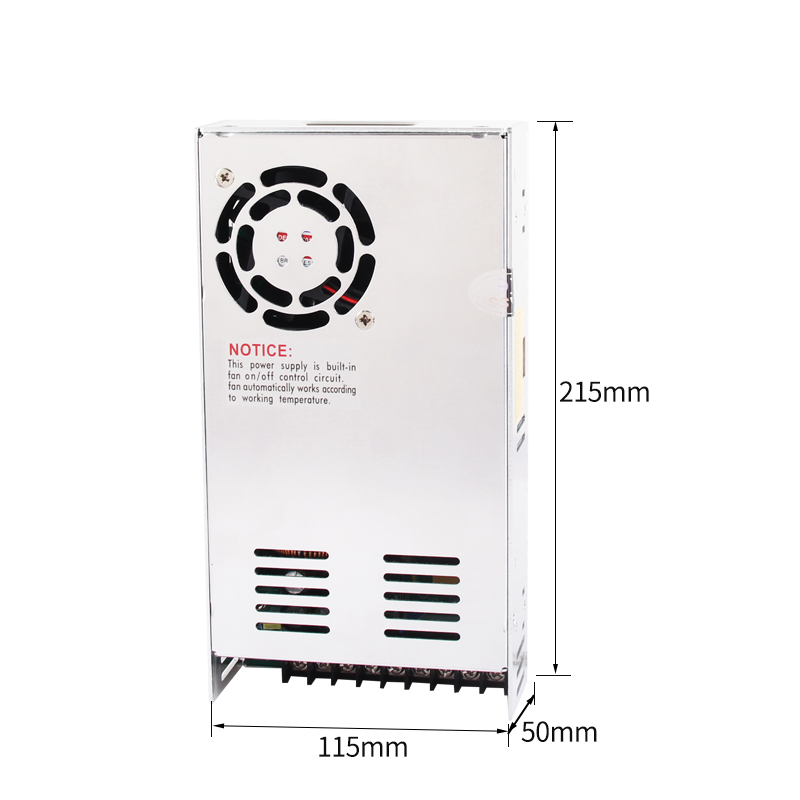

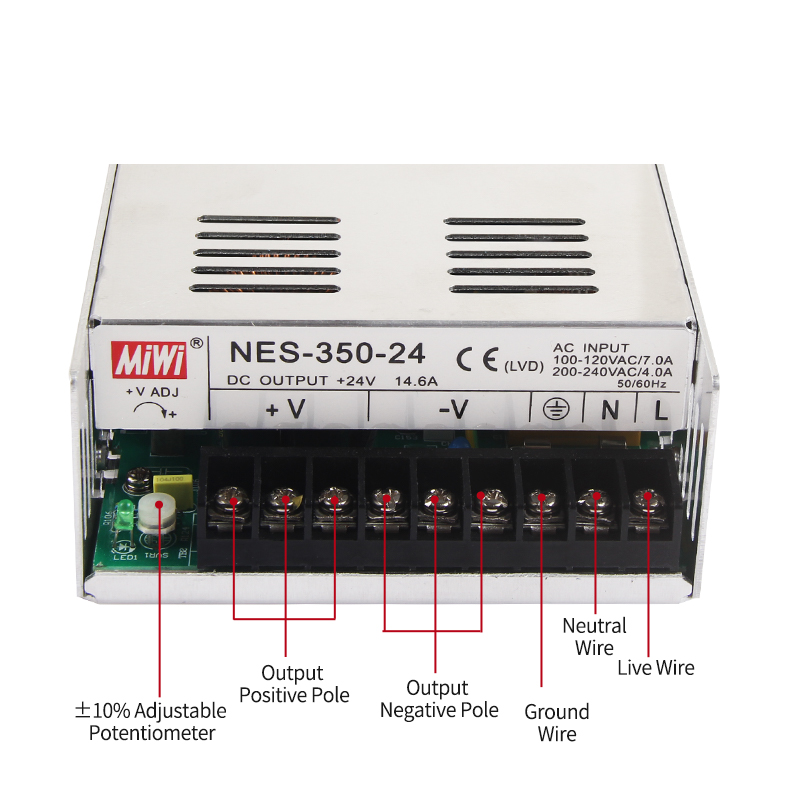

| DIMENSION | 215*115*50mm (L*W*H) | |||||||||
| NOTE | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.Please connect positive pole of input voltage to mark “L” of the terminal block and connect negative pole of input voltage with mark “N” of the terminal block. using DC voltage for input voltage. | |||||||||
