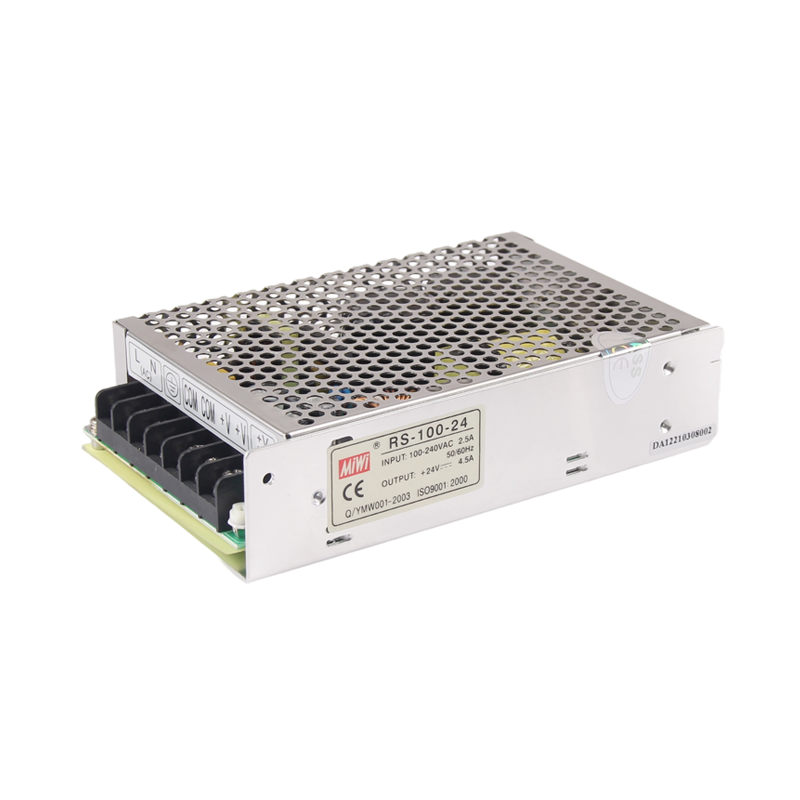

| MODEL | RS-100-3.3 | RS-75-5 | RS-75-12 | RS-75-15 | RS-75-24 | RS-75-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 20A | 16A | 8.5A | 7A | 4.5A | 2.3A | |
| CURRENT RANGE | 0 ~ 20A | 0 ~ 16A | 0 ~ 8.5A | 0 ~ 7A | 0 ~ 4.5A | 0 ~ 2.3A | |
| RATED POWER | 66W | 80W | 102W | 105W | 108W | 110.4W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 3.2V ~ 3.5V | 4.75 ~ 5.5V | 11.4 ~ 13.2V | 14.25 ~ 16.5V | 22.8 ~ 26.4V | 45.6 ~ 52.8V | |
| VOLTAGE TOLERANCE Note.3 | 3.00% | 2.00% | 1.00% | 1.00% | 1.00% | 1.00% | |
| LINE REGULATION | 0.50% | 0.50% | 0.50% | 0.50% | 0.50% | 0.50% | |
| LOAD REGULATION | 2.00% | 1.00% | 0.50% | 0.50% | 0.50% | 0.50% | |
| SETUP, RISE TIME Note.5 | 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load | ||||||
| HOLD UPTIME (Typ.) | 60ms/230VAC 14ms/115VAC at full load | ||||||
| VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) | ||||||
| INPUT | FREQUENCY RANGE | 47 ~63Hz | |||||
| EFFICIENCY (Typ.) | 74.00% | 77.00% | 81.00% | 82.00% | 84.00% | 84.00% | |
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 40A/230VAC | ||||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 3.8 ~ 4.45V | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6~ 32.4V | 55.2 ~ 64.8V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| ENVIRONMENT | WORKING TEMP. | -25~70℃ （Refer to: Derating Curve"） | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85C, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/C (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
 SAFETY &EMC (Note 4) | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH | ||||||
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 | ||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2), heavy industry level, criteria A | ||||||
| OTHERS | MTBF | 265Khrs min. MIL-HDBK-217F (25 ) | |||||
| DIMENSION | 159*97*38mm (L*W*H) | ||||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation. 4.Line regulation is measured from low line to high line at rated load 5.Load regulation js measured form 0% to 100% rated load 6.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests,please refer to"EMI testing of component power supplies." | ||||||
