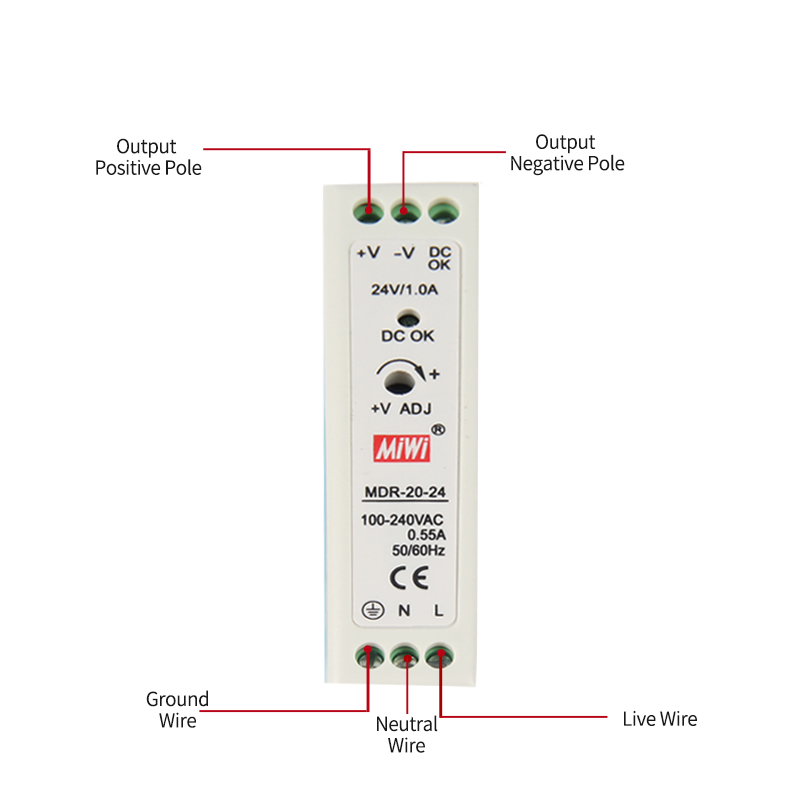

| MODEL | MDR-20-5 | MDR-20-12 | MDR-20-15 | MDR-20-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 3A | 1.67A | 1.34A | 1A | |
| CURRENT RANGE | 0 ~ 3A | 0 ~ 1.67A | 0 ~ 1.34A | 0 ~ 1A | |
| RATED POWER | 15W | 20W | 20W | 24W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ± 1.0% | ± 1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ± 1.0% | ± 1.0% | |
| SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||||
| HOLD UPTIME (Typ.) | 50ms/230VAC 20ms/115VAC at full load | ||||
| VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | ||||
| INPUT | FREQUENCY RANGE | 47 ~63Hz | |||
| EFFICIENCY (Typ.) | 76% | 80% | 81% | 84% | |
| AC CURRENT (Typ.) | 0.55A/115VAC 0.35A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 20A/115VAC 40A/230VAC | ||||
| LEAKAGE CURRENT | <1mA/240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | |||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| FUNCTION | DC OK ACTIVE SIGNAL (max.) | 3.75 ~ 6V / 50mA | 9 ~ 13.5V / 40mA | 11.5 ~ 16.5V / 40mA | 18 ~ 27V / 20mA |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70C (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85C, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/C (0 ~ 50℃) | ||||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||
 SAFETY &EMC (Note 4) | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH | ||||
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 | ||||
| EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A | ||||
| OTHERS | MTBF | 236.9K hrs min. MIL-HDBK-217F (25℃) | |||

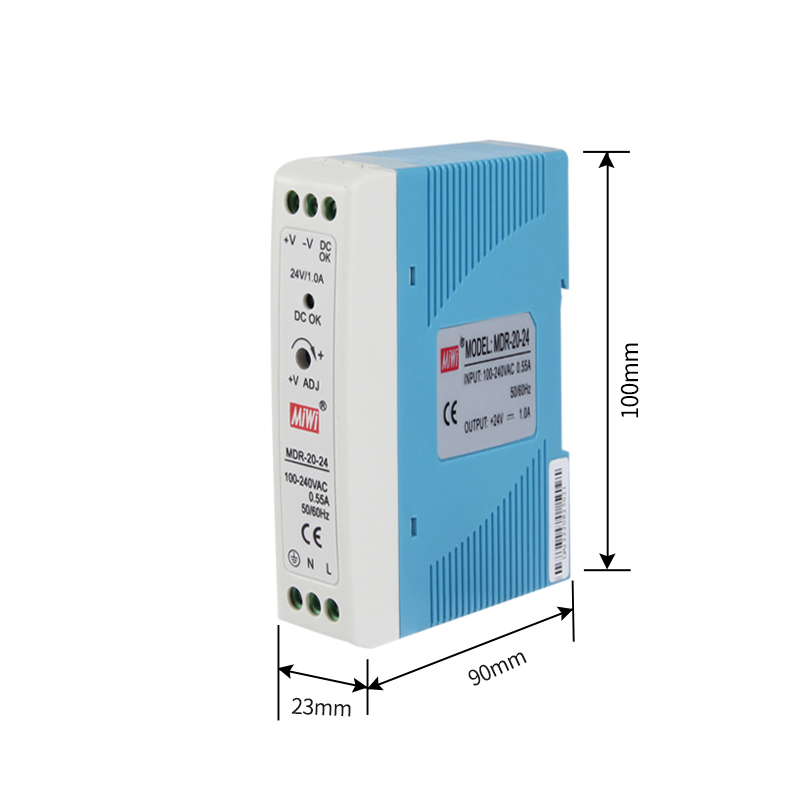

| DIMENSION | 22.5*90*100mm (W*H*D) | ||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. | ||||
