| Model | DR-75-12 | DR-75-24 | DR-75-48 | |
| OUTPUT | DC Voltage | 12V | 24V | 48V |
| Rated Current | 6.3A | 3.2A | 1.6A | |
| Current Range | 0-6.3A | 0-3.2A | 0-1.6A | |
| Rated Power | 75.6W | 76.8W | 76.8W | |
| Ripple & Noise (max.) Note.2 | 100mVp-p | 150mVp-p | 240mVp-p | |
| Voltage Adj. Range | 12-14V | 24-28V | 48-53V | |
| Voltage Tolerance Note.3 | ±2% | ±1% | ±1% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1% | ±1% | ±1% | |
| Setup, Rise Time | 1000ms, 60ms/230VAC 1800ms, 60ms/115VAC at full load | |||
| Hold Up Time | 60ms/230VAC 12ms/115VAC at full load | |||
| INPUT | Voltage Range | 85~264VAC 120~370VDC | ||
| FREQUENCY RANGE | 47~63Hz | |||
| AC Current | 1.6A/115V 0.96A/230V | |||
| Efficiency | 76% | 80% | 81% | |
| Inrush Current | COLD START 20A/115VAC 40A/230VAC | |||
| LEAKAGE CURRENT | <1mA / 240VAC | |||
| PROTECTION | Over Load | 105%~150% rated output power | ||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| Over Voltage | 15 ~ 16.5V | 29 ~ 34V | 58 ~ 65V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | 85°C± 5°C (TSW1) detect on heat sink of power transistor | |||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | Working Temp., | -10°C~+60°C; (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| Storage Temp., Humidity | -20°C~+85°C; 10%~95%RH | |||
| Temp. Coefficient | ±0.03%/°C(0~50°C) | |||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||
| SAFETY | Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH | |||
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | |||
| OTHERS | MTBF | 123.1K hrs min. MIL-HDBK-217F (25°C ) | ||

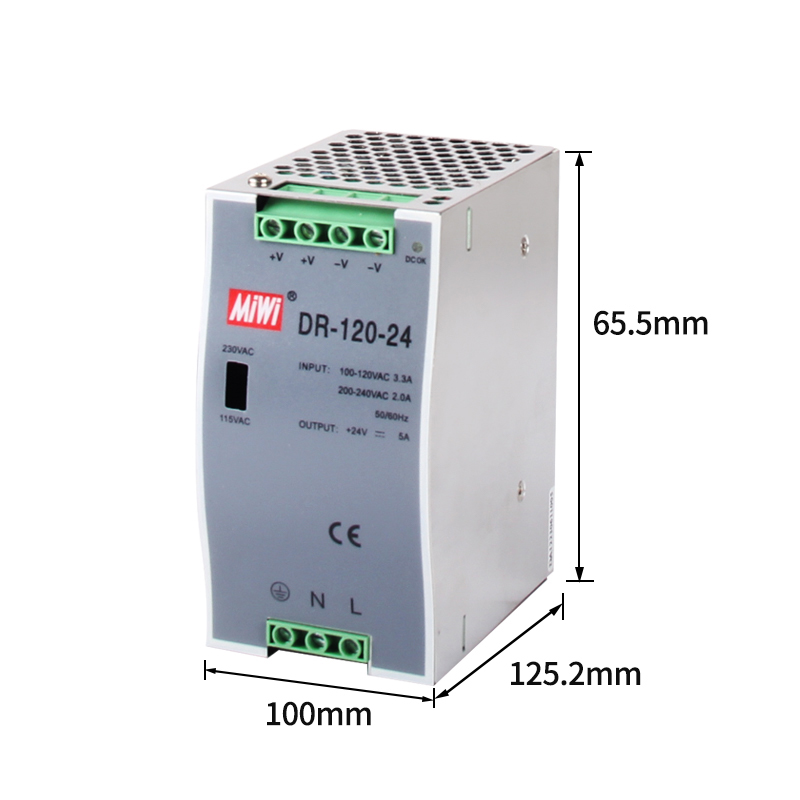

| DIMENSION | 55.5*125.2*100mm (W*H*D) | |||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||
