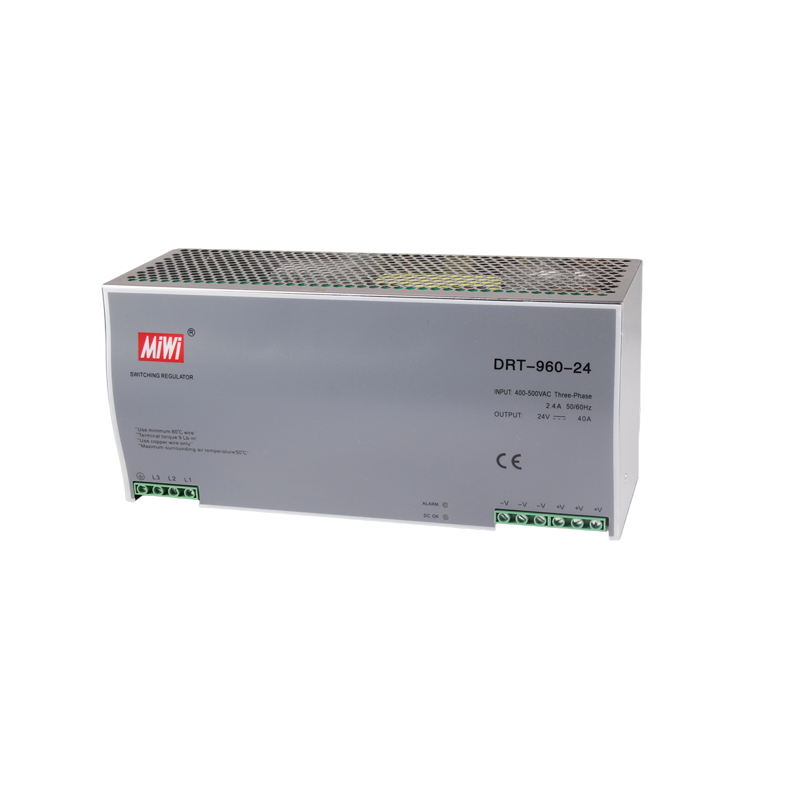

| 960W Single Output Industrial DIN Rail Power Supply |
| Model | Output | Tolerance Voltage | Ripple and Noise | Efficiency |
| DRT-960-24 | 24V, 0-40A | ± 1% | 80mvp-p | 91% |
| DRT-960-48 | 48V, 0-20A | ± 1% | 80mvp-p | 92% |
| 1. Globally applicable AC input power |
| 2. Low-cost, high reliability |
| 3. Protection: short circuit/ overload/ over-voltage/ over temperature |

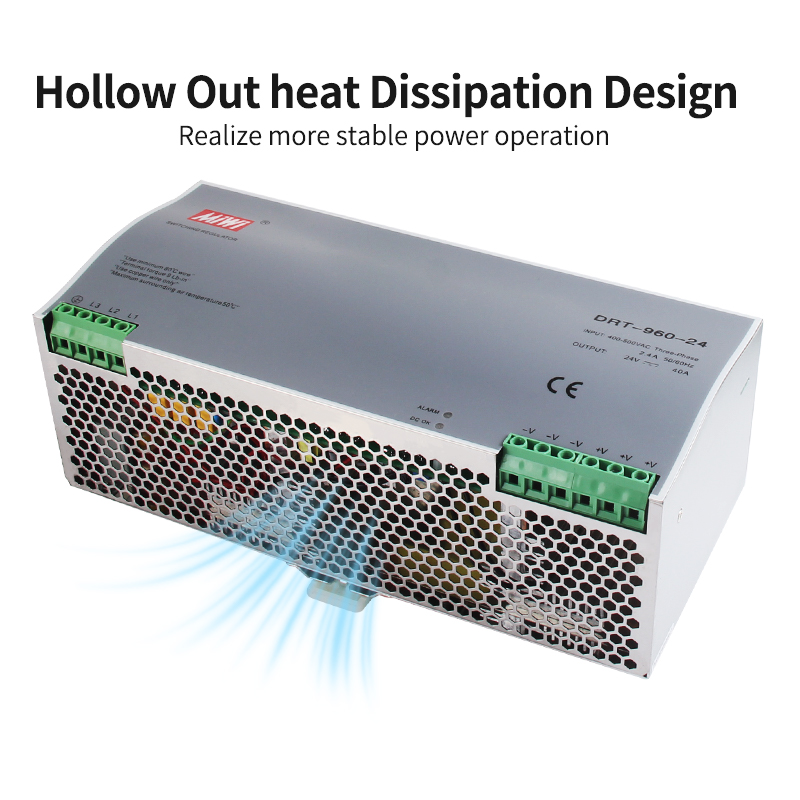

| 4. Cooling by free air convection. |
| 5. Small size, light weight |
| 6. 100% full load burn-in test |
| 7. Built-in EMI filter, a very small ripple |
| 8. 2 years warranty |
|
| 1. Test condictions for the following parameters: 38VAC input power |
| 2. Input voltage range: 340-550VAC 3 pole four-wire ( two phase for DRH-120) |
| 3. Input current: 1A 50-60Hz |
| 4. Inrush current: cold start current is 50A at 400VAC |
| 5. Overload protection: 105-150% |
| 6. Type: current limit reset: automatic restore. |
| 7. Over-voltage protection:30-36V for 24V, 59-66V for 48V |
| 8. Temperature Coefficient: ±0.03% (0~50℃) |
| 9. Earthquake resistance: 10-500Hz, 2G 10 min, 1 cycle, a total of 60 minutes, each axis. |
| 10. Pressure resistance: input and output:3KVAC; input and shell:1.5KVAC; output and shell:0.5KVAC |
| 12. Isolation resistance: input and output, the input and shell, output and shell:500VDC/100MΩ |
| 13. Temperature, humidity:-20℃~+70℃ |

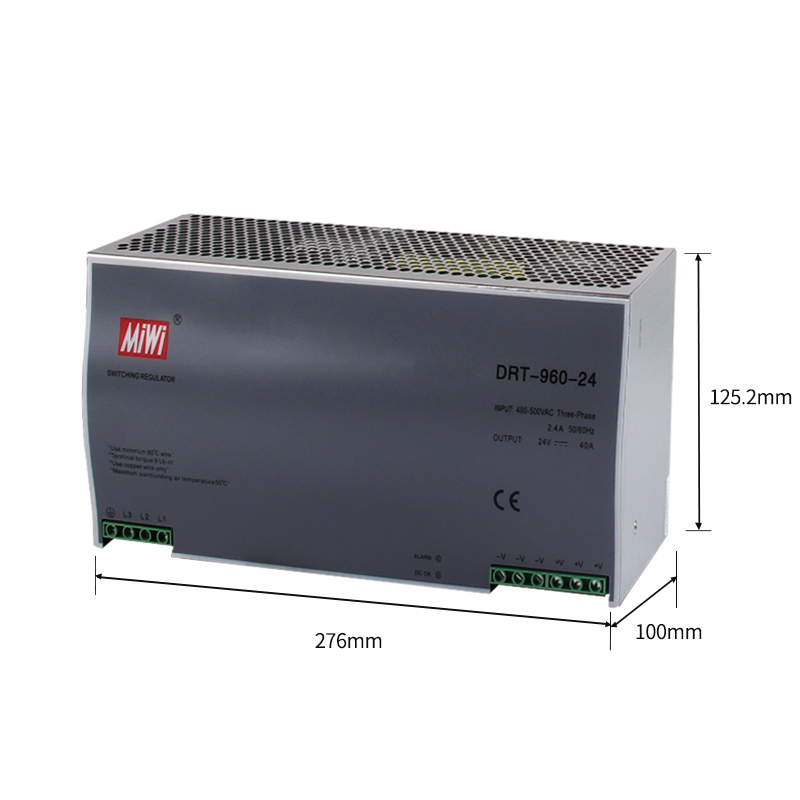

| 15. Dimension (L*W*H): 276*125.2*100 mm |
| NOTE： |
| 1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. |
| 2. Error, include the setting error, line stability and load stability. |
| 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. |
| 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. |
| 5. Load stability test: the load is from 0% to 100%, others 60%. |
| 6. Total stability test: the load is from 0% to 100%, others 60%. |
| 7. C2,3,6 must be knocked down. |
