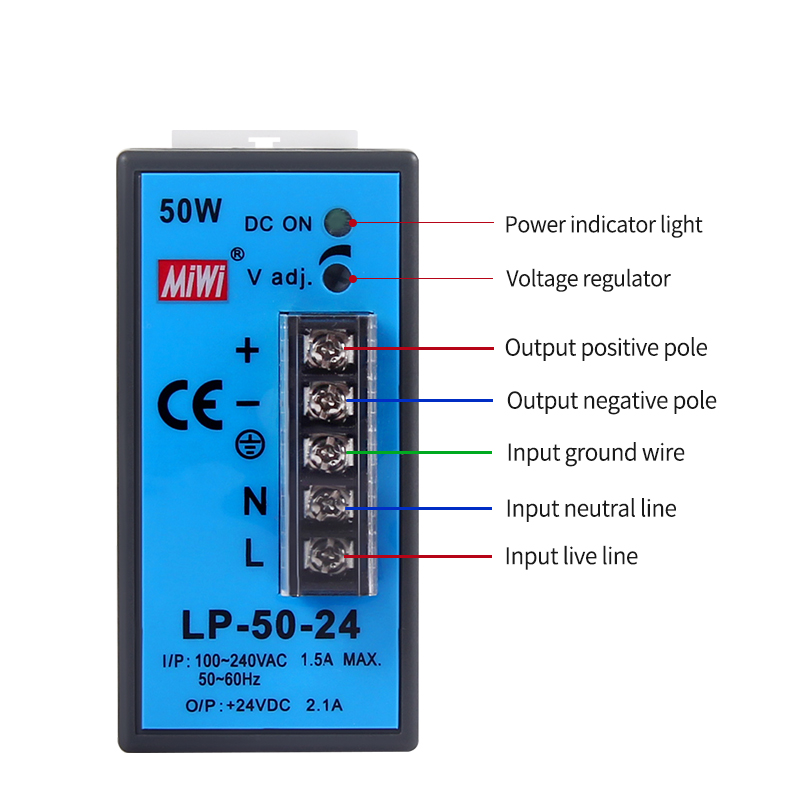

| Model / Specification | LP-50-5 | LP-50D-12 | LP-50-24 |
| Output | DC Output Voltage | 5V | 12V | 24V |
| Output Voltage tolerance | ± 2% | ± 1% | ± 1% |
| Rated Output Current | 8A | 4.2A | 2.1A |
| Output Current Range | 0-8A | 0-4.2A | 0-2.1A |
| DC Output Power | 40W | 50.4W | 50.4W |
| Tripple and Noise | 80mVp-p | 120mVp-p | 240mVp-p |
| Adjustable Range for DC Voltage | 4.75-5.5V | 11.4-13.2V | 20.5-26.5V |
| Input | AC Input Voltage Range | 90-264VAC or 100-360VDC 47~63Hz; |
| AC input current | 0.9A/115VAC 0.45A/230VAC |
| Efficiency | 78% | 83% | 85% |
| AC Inrush Current | Cold-Start Current: 18A/115V, 36A/230V |
| Leakage Current | <2mA/240VAC |
| Protection charateristic | Overload Protection | 110%-150% |
| Protection mode: cut off output and restart |
| Over Voltage Protection | 5.75-6.75V | 13.8-16.2V | 27-30V |
| Protection mode: cut off output and reset automatically |
| Environment | Work Temperature Humidity | -10℃~+50℃ , 20%~90%RH |
| Storage Temperature Humidity | `-20℃~+85℃, 10%~95%RH |
| Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft |
| Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC |
|
|
| Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC |
|
|
| Executive Stantand | Safety Standards | CE |
| EMC Standards | Design refer to FCC part 15J Conduction Class B |
| Others | Weight | 0.22KGS |
| Package | 60pcs/ctn 38.5*32*28 |
| size | 75.5*45*102(L*W*H) |
| Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. |
|
|
|
