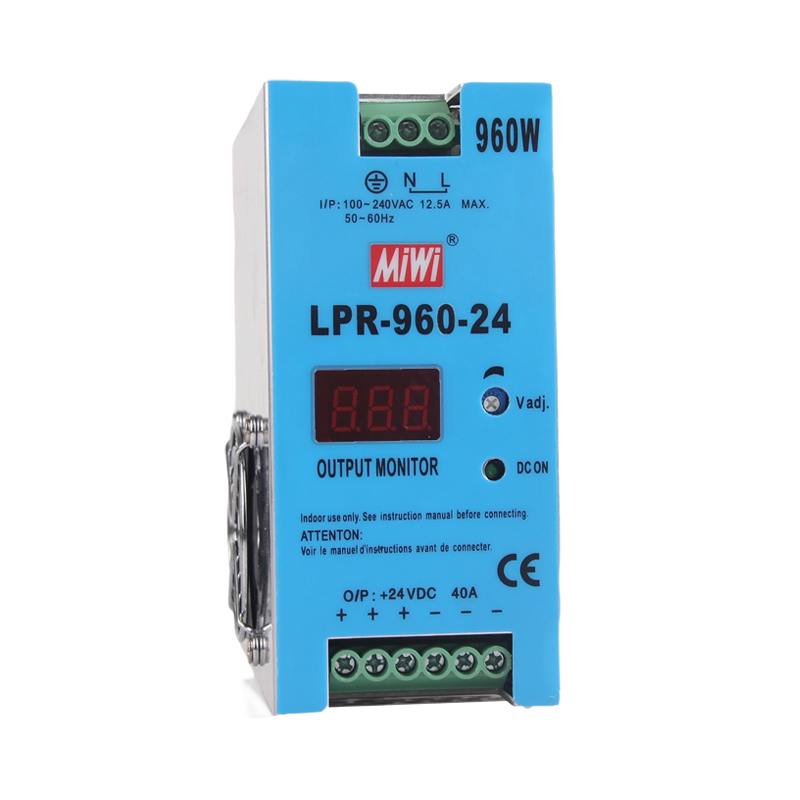

LPR-960 960W DIN Rail Switching Power Supply | ||||
Item | Technical index | |||
Output | DC Output Voltage | 24V | 36V | 48V |
Rated Current | 40A | 26.6A | 20A | |
Rated Power | 960W | 958W | 960W | |
Ripple & Noise | ﹤340mv | ﹤360mv | ﹤480mv | |
Voltage Tolerance | ±1% | ±1% | ±1% | |
Voltage Adj. Range | ±10% | |||
Load Regulation | ±1% | ±1% | ±1% | |
Line Regulation | ±1% | ±1% | ±1% | |
Input | Voltage Range | 100VAC-240VAC 47Hz-63Hz/ 260VDC-380VDC | ||
Efficiency | ＞91% | ＞92% | ＞92% | |
AC Current | ﹤9A 230VAC | |||
Power factor | PF＞0.95/230VAC | |||
Setup, Rise Time | 200ms,50ms,20ms,230VAC | |||
Protection | Overload | 120%-145% cut off output | ||
Over Voltage | ＞115%-140% cut off output | |||
Short Circuit | Cut off output | |||
Over Temperature | Directly dissipating heat by fan | |||
Environment | Working Temp, Humidity | -10℃~+50℃; 20%~90RH | ||
Storage Temp, Humidity | -20℃~+85℃; 10%~95RH | |||
Safety | Working Frequency Withstand Voltage | Input-Output: 1.5KVAC, Input-earth: 1.5KVAC, Output-earth: 0.5KVAC 1min | ||
Insulation Resistance | Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ | |||
Others | Dimension | 131*120*64mm | ||
Net Weight/Gross Weight | 950/1020g | |||
