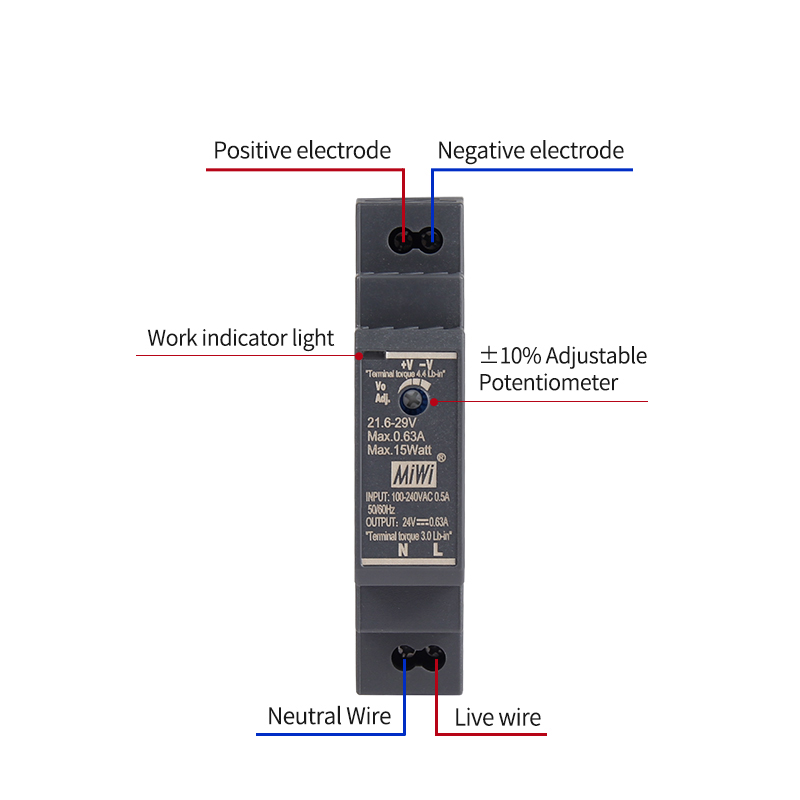

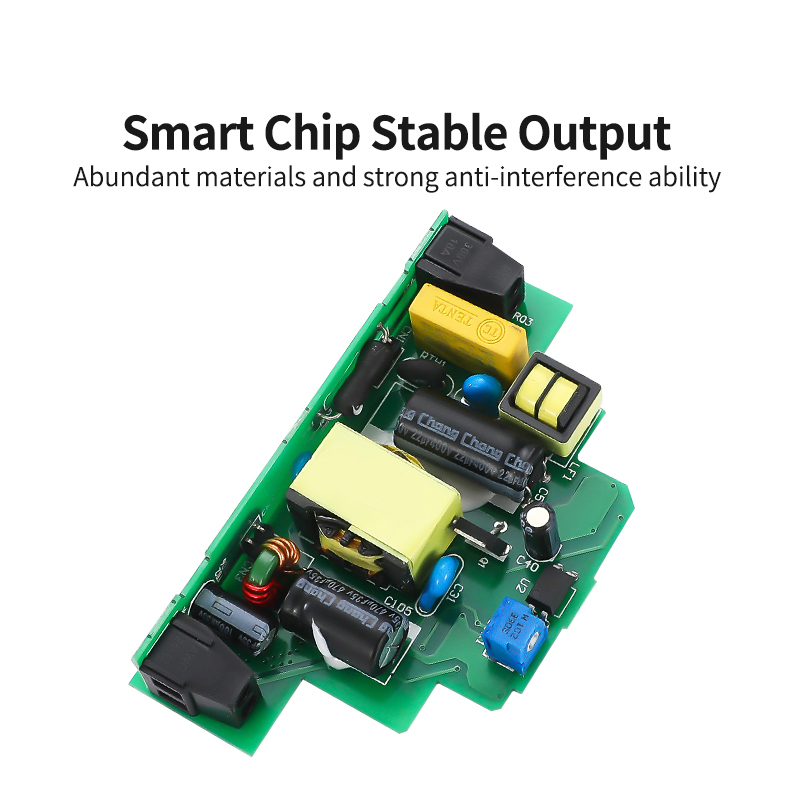

| MODEL | HDR-15-5 | HDR-15-12 | HDR-15-15 | HDR-15-24 | HDR-15-48 |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 2.4A | 1.25A | 1A | 0.63A | 0.32A |
| CURRENT RANGE | 0 ~ 2.4A | 0 ~1.25A | 0 ~ 1A | 0 ~ 0.63A | 0 ~ 0.32A |
| RATED POWER | 12W | 15W | 15W | 15.2W | 15.4W |
| RIPPLE & NOISE | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p |
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| SETUP, RISE TIME | 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load |
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC available) 120 ~ 370VDC(390VDC available) |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY | 80% | 85% | 86% | 86% | 87% |
| AC CURRENT | 0.5A/115VAC 0.25A/230VAC |
| INRUSH CURRENT | COLD START 25A/115VAC 45A/230VAC |
| PROTECTION | OVERLOAD | 105 ~ 145% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 5.75 ~ 6.75V | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V |
| Protection type : Shut off o/p voltage, clamping by zener diode |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to Derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03%/°C (0~50°C) RH non-condensing |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| OPERATING ALTITUDE | 2000 meters |
| OTHERS | MTBF | 1166K hrs min. MIL-HDBK-217F (25℃) |

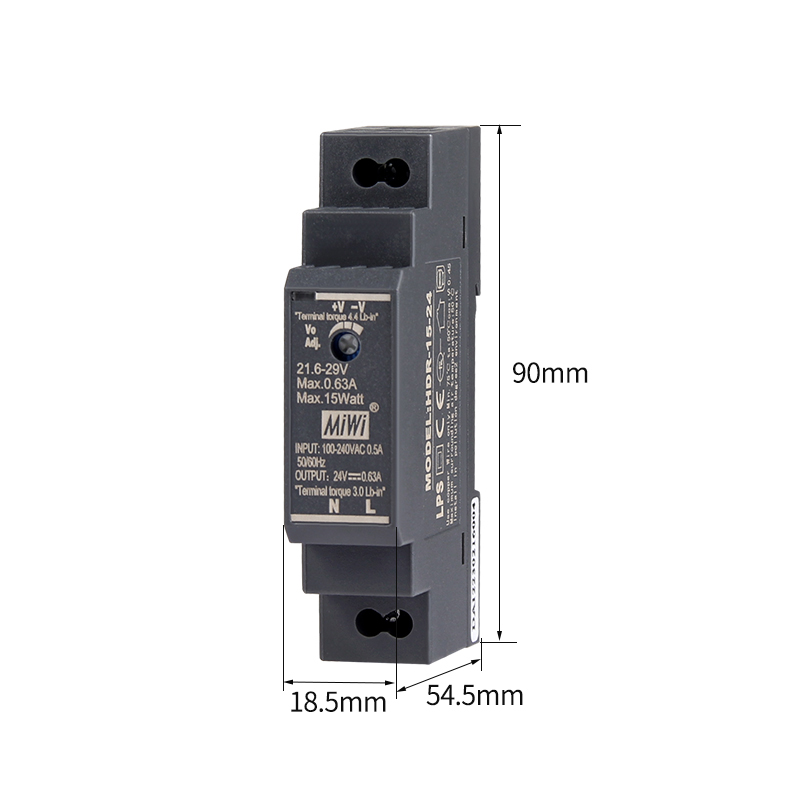

| DIMENSION | 17.5*90*54.5mm (W*H*D) |
| PACKING | 78g;160pcs/13.5Kg/1.19CUFT |
