| MODEL | HDR-60-5 | HDR-60-12 | HDR-60-15 | HDR-60-24 | HDR-60-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 6.5A | 4.5A | 4A | 2.5A | 1.25A | |
| CURRENT RANGE | 0 ~ 6.5A | 0 ~ 4.5A | 0 ~ 4A | 0 ~ 2.5A | 0 ~ 1.25A | |
| RATED POWER | 32.5W | 54W | 60W | 60W | 60W | |
| RIPPLE & NOISE | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 5.0 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | |||||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC available) 120 ~ 370VDC(390VDC available) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY | 85% | 88% | 89% | 90% | 91% | |
| AC CURRENT | 1.2A/115VAC 0.8A/230VAC | |||||
| INRUSH CURRENT | COLD START 25A/115VAC 45A/230VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | ||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to Derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/°C (0~50°C) RH non-condensing | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS | UI60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1 | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level / Note | |||
| Conducted | EN55032(CISPR32) | Class B | ||||
| Radiated | EN55032(CISPR32) | Class B | ||||
| Harmonic Current | EN61000-3-2 | Class A | ||||
| Voltage Flicker | EN61000-3-3 | ------- | ||||
| EMC IMMUNITY | EN55024, EN55035, EN61000-6-2, EN61204-3 | |||||
| Parameter | Standard | Test Level /Note | ||||
| ESD | EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | EN61000-4-3 | Level 3, criteria A | ||||
| EFT/Burest | EN61000-4-4 | Level 3, criteria A | ||||
| Surge | EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||
| Conducted | EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and interruptions | EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods | ||||
| OTHERS | MTBF | 927.6Khrs min. MIL-HDBK-217F (25°C) | ||||

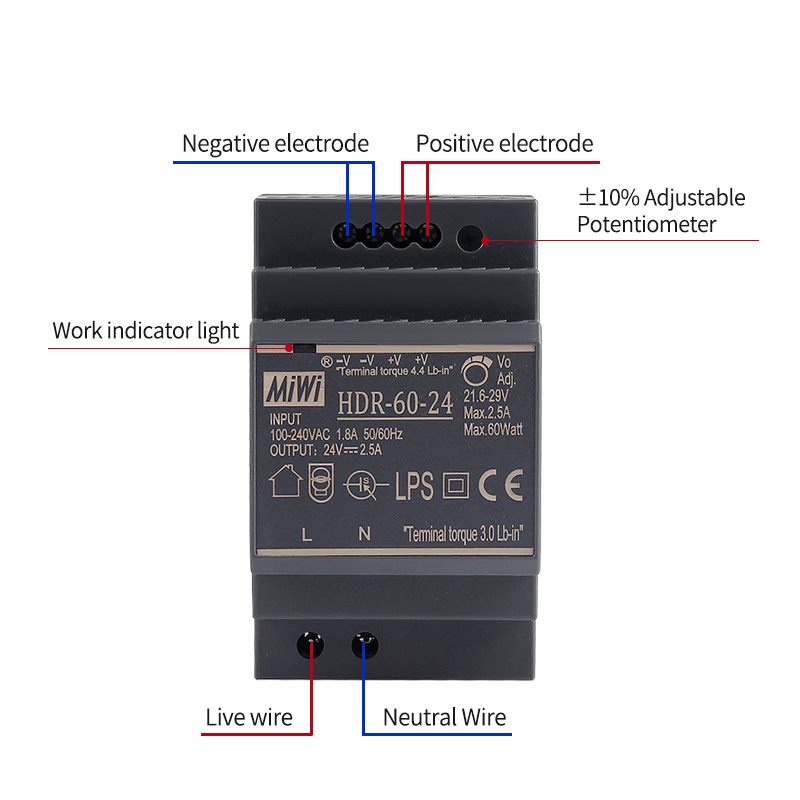

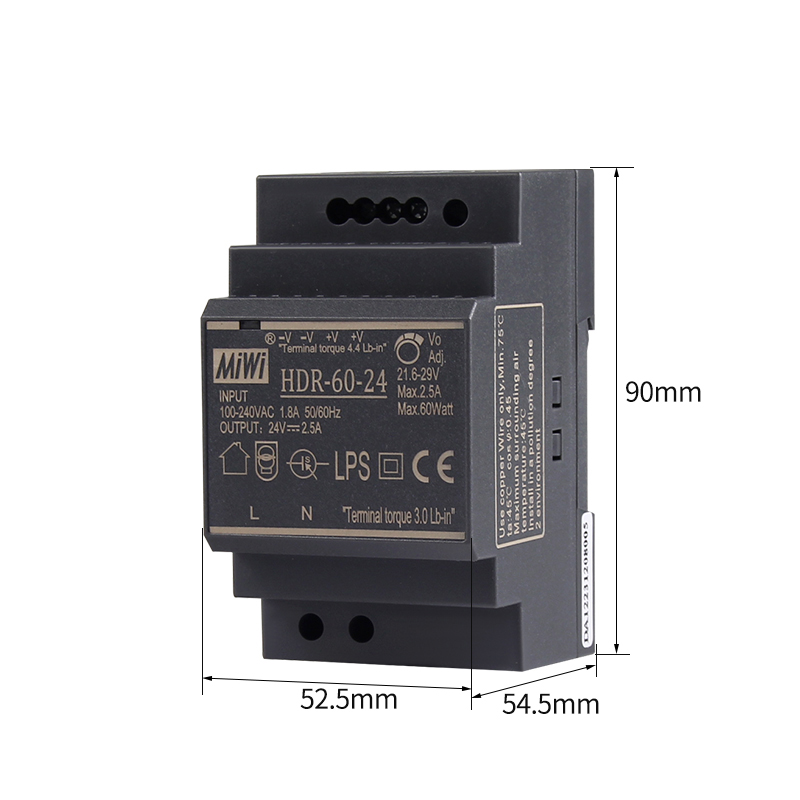

| DIMENSION | 52.5*90*54.5mm (W*H*D) | |||||
| PACKING | 190g;60pcs/12.4Kg/0.97CUFT | |||||
