| MODEL | HDR-150-12 | HDR-150-15 | HDR-150-24 | HDR-150-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15A | 24V | 48V | |
| RATED CURRENT | 115VAC | 10.2A | 8.55A | 5.31A | 2.72A | |
| 230VAC | 11.3A | 9.5A | 6.25A | 3.2A | ||
| RATED POWER | 115VAC | 122.4W | 128.3W | 127.4W | 130.6W | |
| 230VAC | 135.6W | 142.5W | 150W | 153.6W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | ||
| VOLTAGE ADJ. RANGE | 10.8~ 13.8V | 13.5 ~ 18V | 20.6 ~ 27.5V | 43.2 ~ 55.2V | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | |||||
| HOLD UPTIME (Typ.) | 30ms/230VAC 12ms/115VAC at full load | |||||
PROTECTION | OVERLOAD | 105 ~135% rated output power | ||||
| Hiccup mode when output voltage ＜50% , recovers automatically after fault condition is removed Constant current limiting within 50%~100% rated output voltage, recovers automatically after fault condition is removed | ||||||
| ENVIRONMENT | WORKING TEMP. & HUMIDITY | -30 ~ +70℃ (Refer to "Derating Curve") , 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP. & HUMIDITY | ‘-40 ~ +85℃, 10 ~ 95% RH non condensing | |||||
| TEMP. COEFFICIENT | ±℃ ℃ 0.03%/ (0 ~ ) - 45 RH non condensing | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
 OTHERS | MTBF | 3046.3K hrs min. Telcordia SR-332 (Bellcore) ; 535.9K hrs min. MIL-HDBK-217F (25℃) | ||||

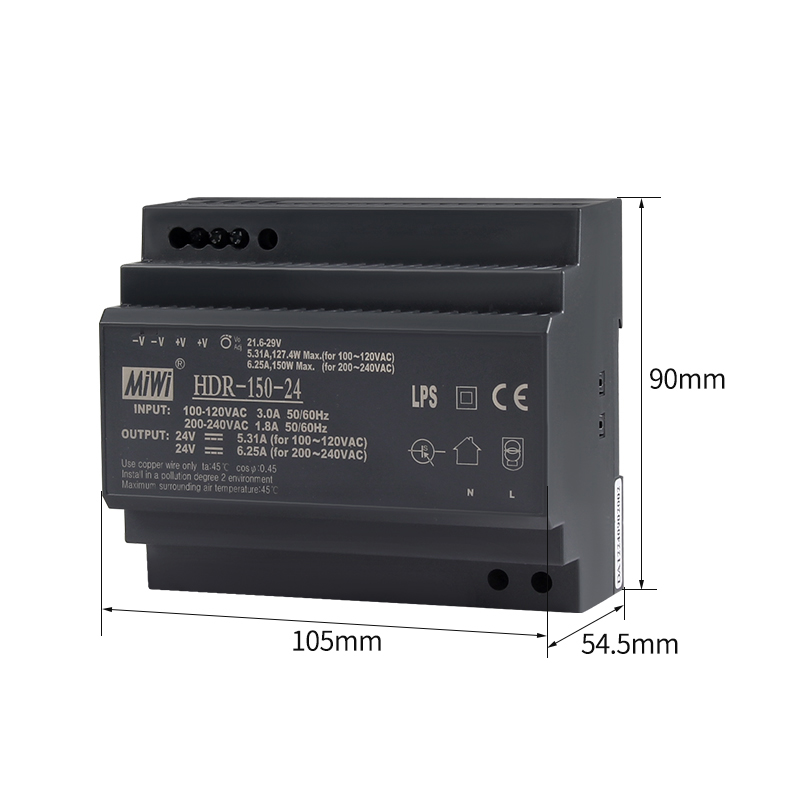

| DIMENSION | 105*90*54.5mm (W*H*D) | |||||
