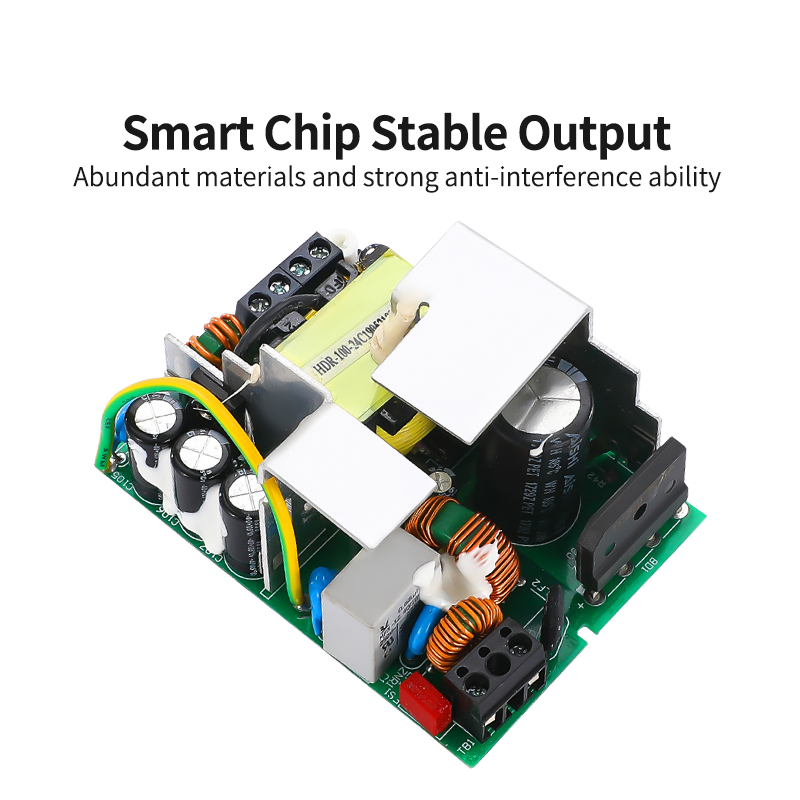

| MODEL | HDR-100-12 | HDR-100-15 | HDR-100-24 | HDR-100-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V | |
| RATED CURRENT | 7.1A | 6.13A | 3.83A | 1.92A | ||
| CURRENT RANGE | 0 ~ 7.1A | 0 ~ 6.13A | 0 ~ 3.83A | 0 ~1.92A | ||
| RATED POWER | 85.2W | 92W | 92W | 92.2W | ||
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | ||
| VOLTAGE ADJ. RANGE | 12 ~ 13V | 15 ~ 17V | 24 ~ 25.5V | 48 ~ 48.7V | ||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational ) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 88% | 89% | 90% | 90% | ||
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 35A/115VAC 70A/230VAC | |||||
| PROTECTION | OVERLOAD Note.4 | HDR-100 : 102 ~ 110% rated output power ; HDR-100-xxN : 105 ~ 150% rated output power | ||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70S (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85S, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/S (0 ~ 50S) RH non-condensing | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | |||||
| SAFETY & EMC (Note 6) | SAFETY STANDARDS | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV EN60950-1 | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25S/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level / Note | |||
| Conducted | EN55032(CISPR32), CNS13438 | Class B | ||||
| Radiated | EN55032(CISPR32), CNS13438 | Class B | ||||
| Harmonic Current (Note 5) | EN61000-3-2 | Class A | ||||
| Voltage Flicker | EN61000-3-3 | / | ||||
| EMC IMMUNITY | EN55024, EN61000-6-2, EN61204-3 | |||||
| Parameter | Standard | Test Level /Note | ||||
| ESD | EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, | ||||
| Radiated Susceptibility | EN61000-4-3 | Level 3, criteria A | ||||
| EFT/Burest | EN61000-4-4 | Level 3, criteria A | ||||
| Surge | EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||
| Conducted | EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and interruptions | EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods | ||||
| OTHERS | MTBF | 856.5K hrs min. MIL-HDBK-217F (25S) | ||||
| DIMENSION | 70*90*54.5mm (W*H*D) | |||||
| PACKING | 0.27Kg; 48pcs/14Kg/1.10CUFT | |||||
