| Model / Specification | EDR-75-12 | EDR-75-24 | EDR-75-48 |
| OUTPUT | DC Voltage | 12V | 24V | 48V |
| Rated Current | 6.3A | 3.2A | 1.6A |
| Current Range | 0~6.3A | 0~3.2A | 0~1.6A |
| Rated Power | 75.6W | 76.8W | 76.8W |
| Ripple & Noise (Max) Note 2 | 80mVp-p | 120mVp-p | 150mVp-p |
| Voltage ADJ. Range | 12~14V | 24V~28V | 48~55V |
| Voltage Tolerance Note 3 | ± 2.0% | ± 1.0% | ± 1.0% |
| Line Regulation | ± 0.5% | ± 0.5% | ± 0.5% |
| Load Regulation | ± 1.0% | ± 1.0% | ± 1.0% |
| Setup, Rise Time | 1200ms,60ms/230VAC 2000msm,60ms/115VAC at full load |
| Hold up Time (Typ.) | 60ms/230VAC ,60ms/115VAC at full load |
| INPUT | Voltage Range | 90~264VAC 127~370VDC (DC input operation possible by connecting AC/L(+),AC/N(-) |
| Frequency Range | 47-63Hz |
| Efficiency (Typ.) | 85.50% | 87.50% | 88.50% |
| AC Current (Typ.) | 1.45A/115VAC 0.9A/230VAC |
| Inrush Current (Typ.) | 20A/115VAC 35A/230VAC |
| Leakage Current | <1mA/240VAC |
| PROTECTION | Overload | 105~130% rated output power |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage | 14~17V | 29~33V | 56~65V |
| Protection type: Shut down o/p voltage, re-power on to recover |
| Over Temperature | Shut down o/p voltage, re-power on to recover |
| ENVIREMENT | Working Temperature | `-20℃~+60℃ (Refer to Output "Derating Curve") |
| Working Humidity | 20%~95% RH non-condensing |
| Storage Temperature and Humidity | `-40℃~+85℃, 10~95% RH |
| Temp. Coefficient | ± 0.03%℃ |
| Vibration | Component:10~500Hz, 2G 10min/1cycle, 60min. Each along X,Y,Z axes; Mounting; Compliance to IEC60068-2-6 |
| SAFETY & EMC (Note 4) | Safety Standards | UL508. TUV EN60950-1 approved; (meet EN60204-1) |
| Withstand Voltage | I/P-O/P;3KVAC I/P-FG;2KVAC I/P-FG;0.53KVAC |
| Isolation Resistance | I/P-O/P,I/P-FG, O/P-FG;>100M Ohms/500VDC/25℃/70%RH |
| EMC Emission | Compliance to EN55022 (CISPR22) Class A, EN61000-3-2,-3 |
| EMC Immunity | Compliance to EN61000-4-2.3.4.5.6.8.11, EN61000-6-2(EN50082-2),Heavy industrial level, crireria A |
| OTHERS | MTBF | 506.6K hrs min. ML-HDBK-217F (25℃) |

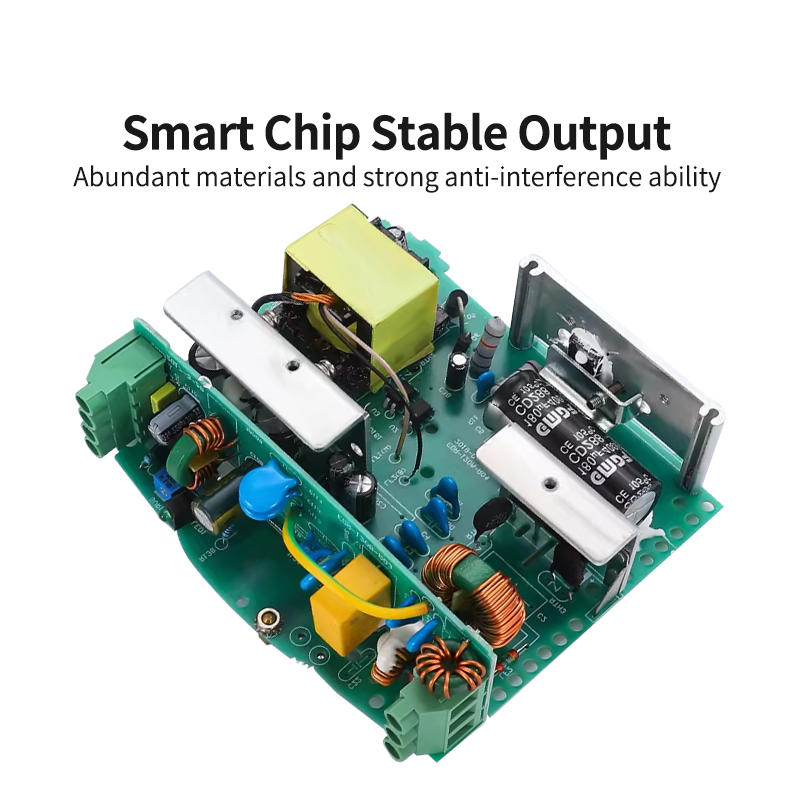

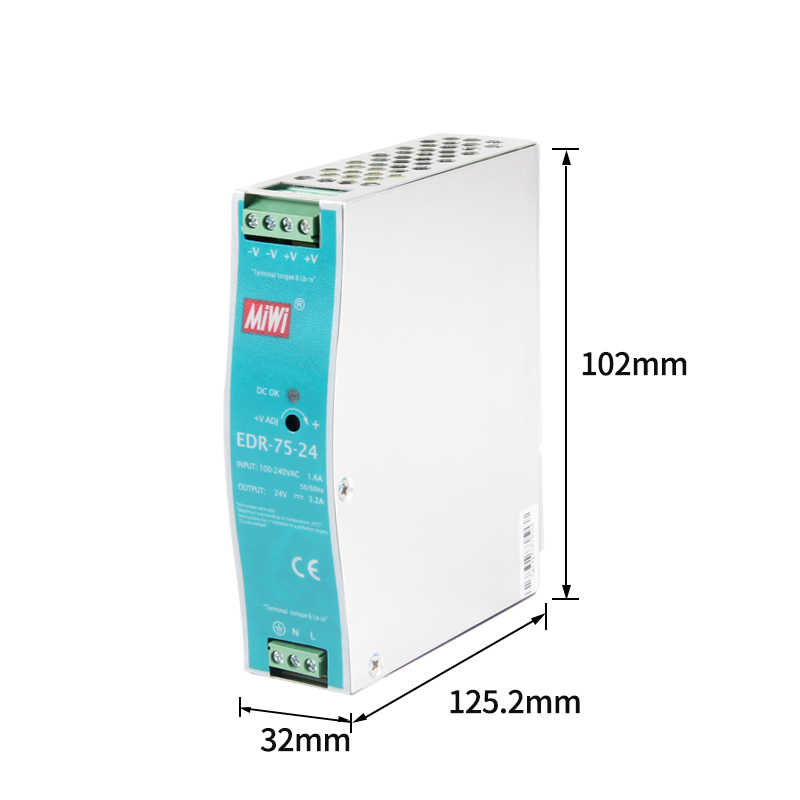

| Dimension | 32*125.2*102mm (W*H*D) |
| Packing | 0.51kg; 28pcs/15.3kg/1.22CUFT |
