| output | Model Specification | NDR-240-24 | NDR-240-48 |
| DC Output Voltage | 24V | 48V |
| Rated Output Current | 10A | 5A |
| Output Current Range | 0-10A | 0-5A |
| Rripple and Noise | 150mVp-p | 150mVp-p |
| Voltage ADJ,Range | 24-28V | 48-55V |
| Tolerance Voltage | ± 1% | ± 1% |
| Line Regulation | ± 0.5% | ± 0.5% |
| Load Regulation | ± 1% | ± 1% |
| Rated Power | 240W | 240W |
| Setup Rise Time | 1500ms,100ms/230VAC 3000ms,100ms/115VAC at full load |
| Hod up Time(Typ.) | 28ms/230VAC 22ms/115VAC at full load |
| Input | Efficiency | 88.5% | 90% |
| Frequency Range | 47-63Hz |
| Power Factor(Typ.) | PF>0.95/115VAC,PF>0.95/230VAC at full load |
| AC Input Voltage Range | 90-264VAC;127-370VDC |
| Input Current | 2.4A/115VAC 1.3A/230VAC |
| AC Inrush Current(max) | Cold-Start Current: 35A at 230VAC |
| Leakage Current | <1mA/240VAC |
| Protection | Overload Protection | 105%~130% rater output power |
| Type: Constant current limuting,recovers automatically after fault condition is removed |
| Over Voltage Protection | 29-33V | 56-65V |
| Protection type:shut down o/p voltage,re-power on to recovery |
| Over Temperature | Shut down o/p voltage,recovers automatically after fault condition is removed |
| Environment | Working Temperature | -20℃~+70℃ (Refer to Output Derating Cutve) |
| Working Humidity | 20%~95%RH non-condensing |
| Vibration | Component:10-500Hz,2G 10min,/1cycle,60min.each along,X,Y,Z axes; |
| Mounting:Compliance to IEC60068-2-6 |
| Temp.Cofficient | ±0.03%℃(0-50℃) |
| Storage Temperature and Humidity | -40℃~+85℃, 10%~95%RH |
| Safety&EMC | Isolaion Resistance | I/P-O/P,I/P-FG,O/P-FG:>100 Ohms/500VDC/25℃/70%RH |
| Withstand Voltage | I/P-O/P:3kVAC,I/P-FG:2kVAC,O/P-FG:0.5kVAC |
| EMC Emision | Compliance to EN55032(CISPR32),EN61204-3 Class B,EN61000-3-2,-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024.EN61000-6-2(EN50082-2).EN61024-3,heavy industry level |
| Safety Standards | UL508,TUV EN60950-1 approvred |
| EMC Standards | Meet FCC Part 15J Conduction class B |

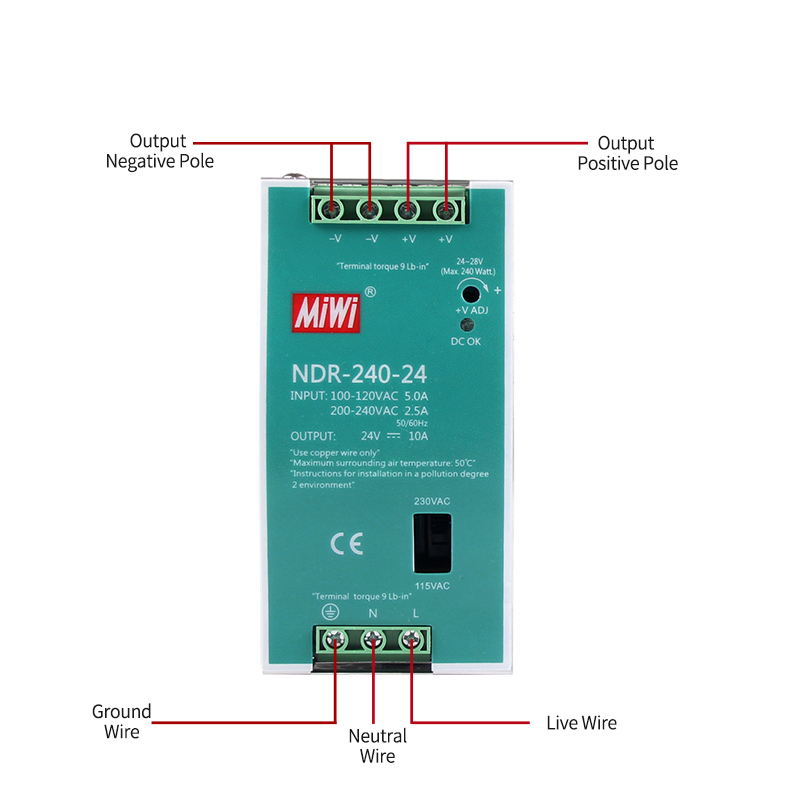

| Other | Connection(screw Din terminal) | I/P:3poles,O/P:4poles |
| MTBF | 230.2K hrs min. MIL-HDBK-217F(25℃) |

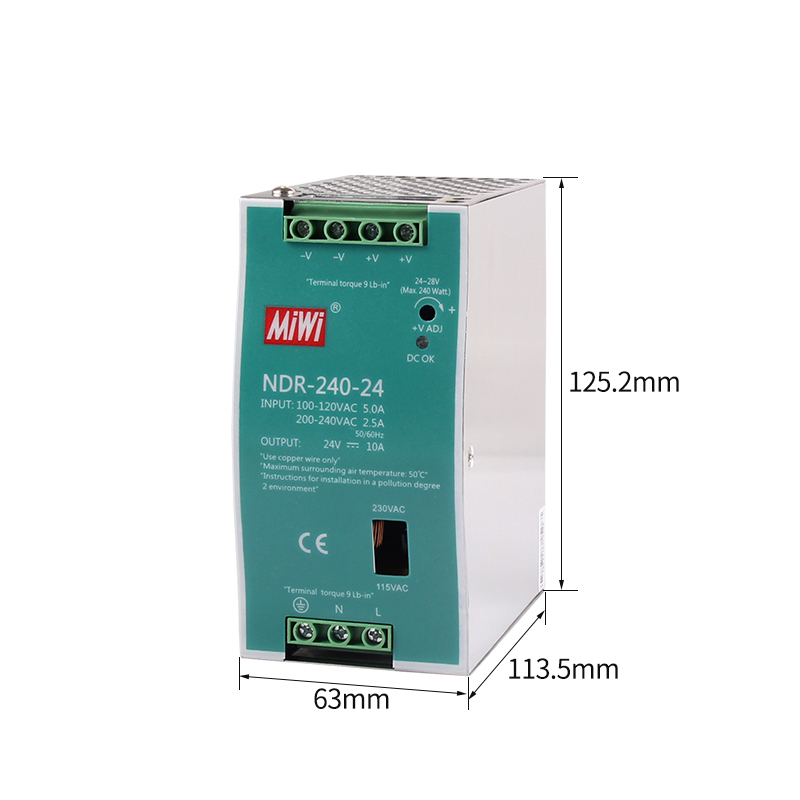

| Overall Dimension | 63*125.2*113.5mm |
| Weight | 1kg |
