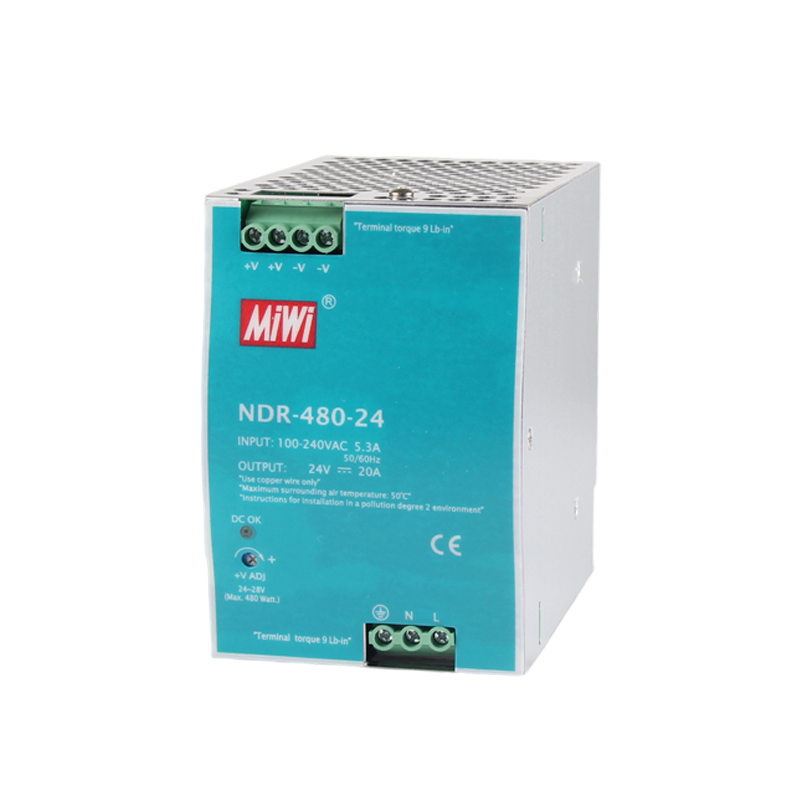

| output | Model Specification | NDR-480-24 | NDR-480-48 |
| DC Output Voltage | 24V | 48V | |
| Rated Output Current | 20A | 10A | |
| Output Current Range | 0-20A | 0-10A | |
| Rripple and Noise | 150mVp-p | 130mVp-p | |
| Voltage ADJ,Range | 24-28V | 48-55V | |
| Tolerance Voltage | ± 1% | ± 1% | |
| Line Regulation | ± 0.5% | ± 0.5% | |
| Load Regulation | ± 1% | ± 1% | |
| Rated Power | 480W | 480W | |
| Setup Rise Time | 1500ms,100ms/230VAC 3000ms,100ms/115VAC at full load | ||
| Hod up Time(Typ.) | 28ms/230VAC 22ms/115VAC at full load | ||
| Input | Efficiency | 92.5% | 92.5% |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.) | PF>0.95/115VAC,PF>0.95/230VAC at full load | ||
| AC Input Voltage Range | 90-264VAC;127-370VDC | ||
| Input Current | 4.8A/115VAC 2.4A/230VAC | ||
| AC Inrush Current(max) | 20A/115VAC 35A/230VAC | ||
| Leakage Current | <2mA/240VAC | ||
| Protection | Overload Protection | 105%~130% rater output power | |
| Type: Constant current limuting,recovers automatically after fault condition is removed | |||
| Over Voltage Protection | 29-33V | 56-65V | |
| Protection type:shut down o/p voltage,re-power on to recovery | |||
| Over Temperature | Shut down o/p voltage,recovers automatically after fault condition is removed | ||
| Environment | Working Temperature | -20℃~+70℃ (Refer to Output Derating Cutve) | |
| Working Humidity | 20%~95%RH non-condensing | ||
| Vibration | Component:10-500Hz,2G 10min,/1cycle,60min.each along,X,Y,Z axes; | ||
| Mounting:Compliance to IEC60068-2-6 | |||
| Temp.Cofficient | ±0.03%℃(0-50℃) | ||
| Storage Temperature and Humidity | -40℃~+85℃, 10%~95%RH | ||
| Safety&EMC | Isolaion Resistance | I/P-O/P,I/P-FG,O/P-FG:>100 Ohms/500VDC/25℃/70%RH | |
| Withstand Voltage | I/P-O/P:3kVAC,I/P-FG:2kVAC,O/P-FG:0.5kVAC | ||
| EMC Emision | Compliance to EN55032(CISPR32),EN61204-3 Class B,EN61000-3-2,-3 | ||
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024.EN61000-6-2(EN50082-2).EN61024-3,heavy industry level | ||
| Safety Standards | TUV EN60950-1 approvred | ||
| EMC Standards | Meet FCC Part 15J Conduction class B | ||

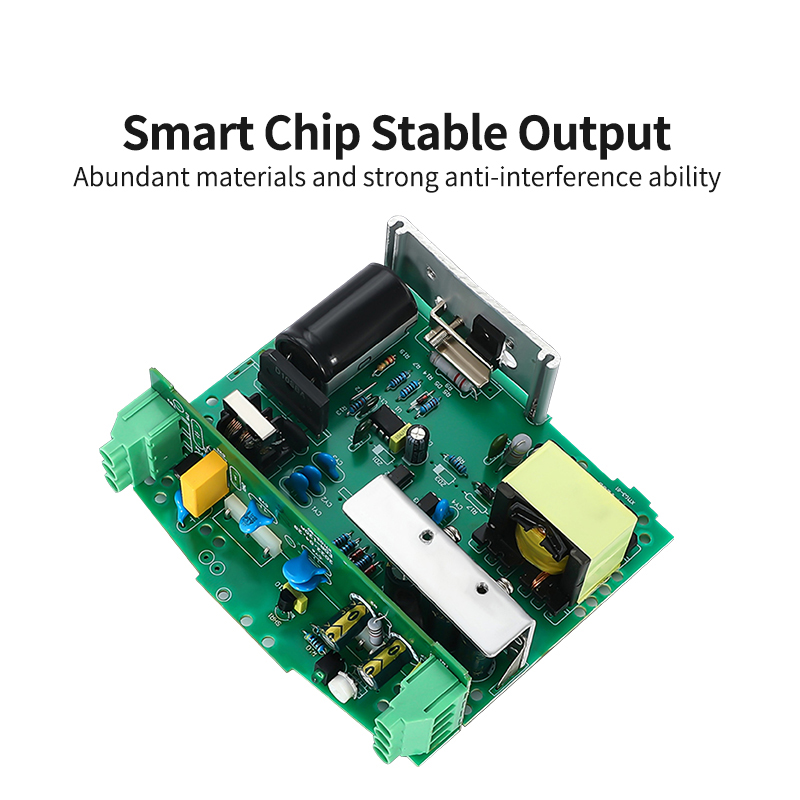

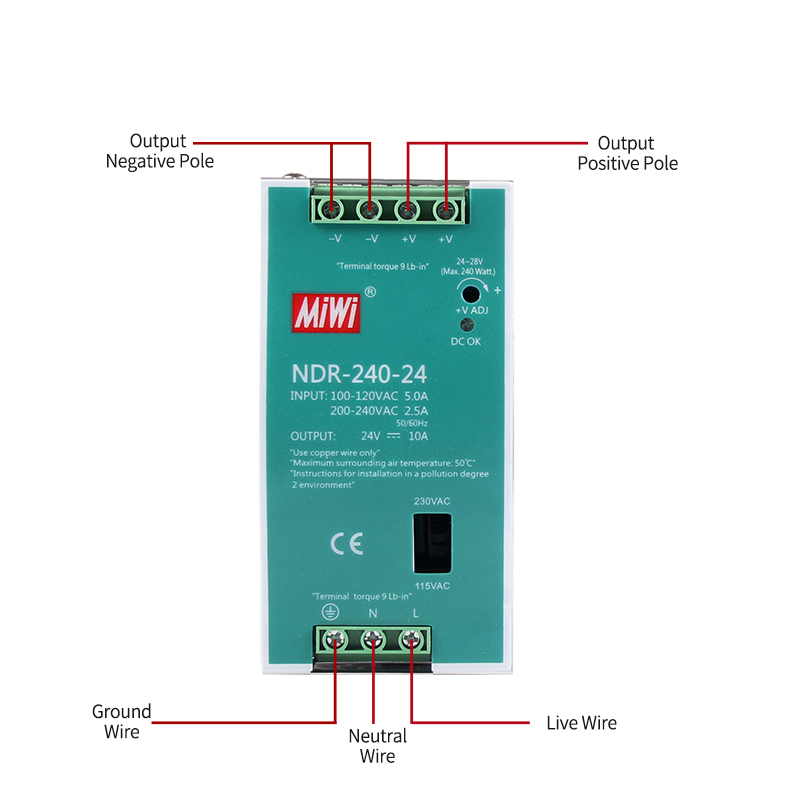

| Other | Connection(screw Din terminal) | I/P:3poles,O/P:4poles | |
| MTBF | 146.8K hrs min. MIL-HDBK-247F | ||

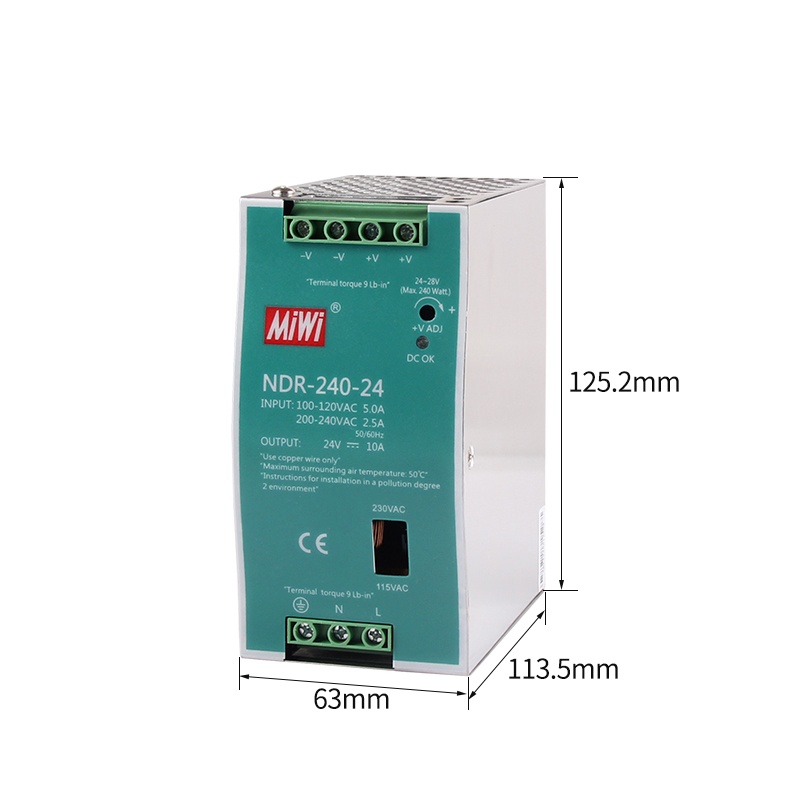

| Overall Dimension | 85.5*125.2*128.5 mm | ||
| Weight | 1.5kg | ||
| 1 All paramenters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2 Ripple & noise are measured at 20MHz of bandwidth by using a 12’ twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor 3 Tolerance, includes set up tolerance, line regulation and load regulation 4 The power supply is considered a component which will be installed into a final equipment, The final equipment must be re-confirmend that it still meets EMC directives 5 Installation clearances 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanaentyly with full power . in case the adjacent device is a heart source, 15mm clearance is recommended. 6 Derating may be needed under low input voltage. Please check the derating curve for more details | |||
