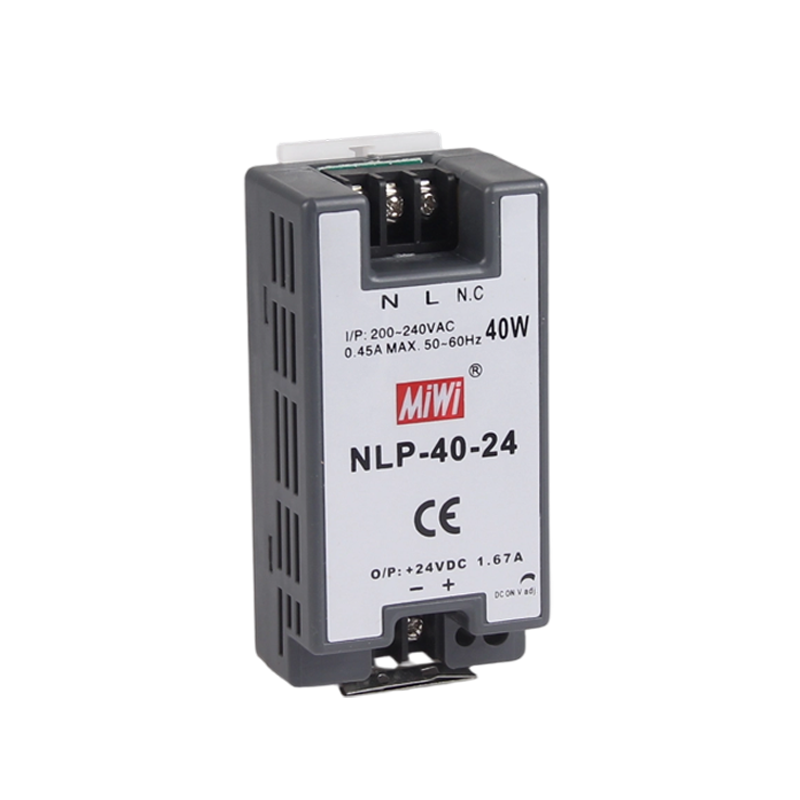

| Model / Specification | NLP-40-12 | NLP-40-24 | NLP-50-12 | NLP-50-24 | |
| Output | DC Output Voltage | 12V | 24V | 12V | 24V |
| Output Voltage tolerance | ± 1% | ||||
| Rated Output Current | 3A | 1.67A | 3.6A | 2.08A | |
| Output Current Range | 0-3A | 0-1.67A | 0-3.6A | 0-2.08A | |
| DC Output Power | 36W | 40W | 43.2W | 50W | |
| Tripple and Noise | 120mVp-p | 240mVp-p | 120mVp-p | 240mVp-p | |
| Adjustable Range for DC Voltage | 11.4-13.2V | 20.5-26.5V | 11.4-13.2V | 20.5-26.5V | |
| Input | AC Input Voltage Range | 180-264VAC 200-380VDC 47~63Hz; | |||
| AC input current | 0.5/230VAC | ||||
| Efficiency | 85% | 87% | 85% | 87% | |
| AC Inrush Current | Cold-Start Current: 10A/115V, 20A/230V | ||||
| Leakage Current | <3.5mA/240VAC | ||||
| Protection | Overload Protection | 110%-150% | |||
| Protection mode: cut off output and restart | |||||
| Over Voltage Protection | 13.8-16.2V | 27-30V | 13.8-16.2V | 27-30V | |
| Protection mode: cut off output and reset automatically | |||||
| Environment | Work Temperature Humidity | -10℃~+50℃ , 20%~90%RH | |||
| Storage Temperature Humidity | `-20℃~+85℃, 10%~95%RH | ||||
| Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft | ||||
| Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC | |||
| Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC | ||||
| Executive Stantand | Safety Standards | CE | |||
| EMC Standards | ... | ||||
| Others | Weight | 0.14KGS | |||
| Package | 120pcs/ctn 44.5*26.5*31 | ||||
| size | 35*45*102(L*W*H) | ||||
| Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | ||||
