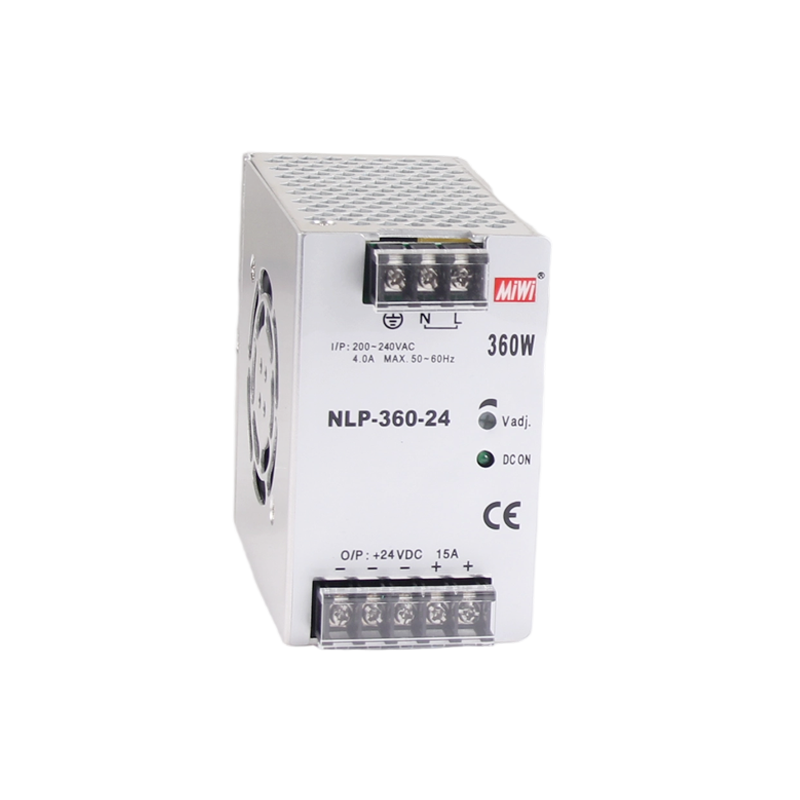

| Model / Specification | NLP-360-24 | NLP-480-24 |
| Output | DC Output Voltage | 24V | 24V |
| Output Voltage tolerance | ± 1% |
| Rated Output Current | 15A | 20A |
| Output Current Range | 0-15A | 0-16.6A | 0-10A |
| DC Output Power | 360W | 480W |
| Tripple and Noise | 240mVp-p | 300mVp-p |
| Adjustable Range for DC Voltage | 20.5-26.5V | 20.5-26.5V |
| Input | AC Input Voltage Range | 180-264VAC 248-373VDC 47~63Hz; |
| AC input current | 4.8A/230VAC |
| Efficiency | 86% | 86% |
| AC Inrush Current | 30A/230V |
| Leakage Current | <3.5mA/240VAC |
| Protection | Overload Protection | 110%-150% |
| Protection mode: overpower protection |
| Over Voltage Protection | 27-30V |
| Protection mode: cut off output and reset automatically |
| Environment | Work Temperature Humidity | -10℃~+50℃ , 20%~90%RH |
| Storage Temperature Humidity | `-20℃~+85℃, 10%~95%RH |
| Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft |
| Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC |
| Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC |
| Executive Stantand | Safety Standards | CE |
| EMC Standards | ... |
| Others | Weight | 0.5KGS |
| Package | 30pcs/ctn 38*30*28 |
| size | 100*60*110(L*W*H) |
| Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. |
|
